Description

Product Description

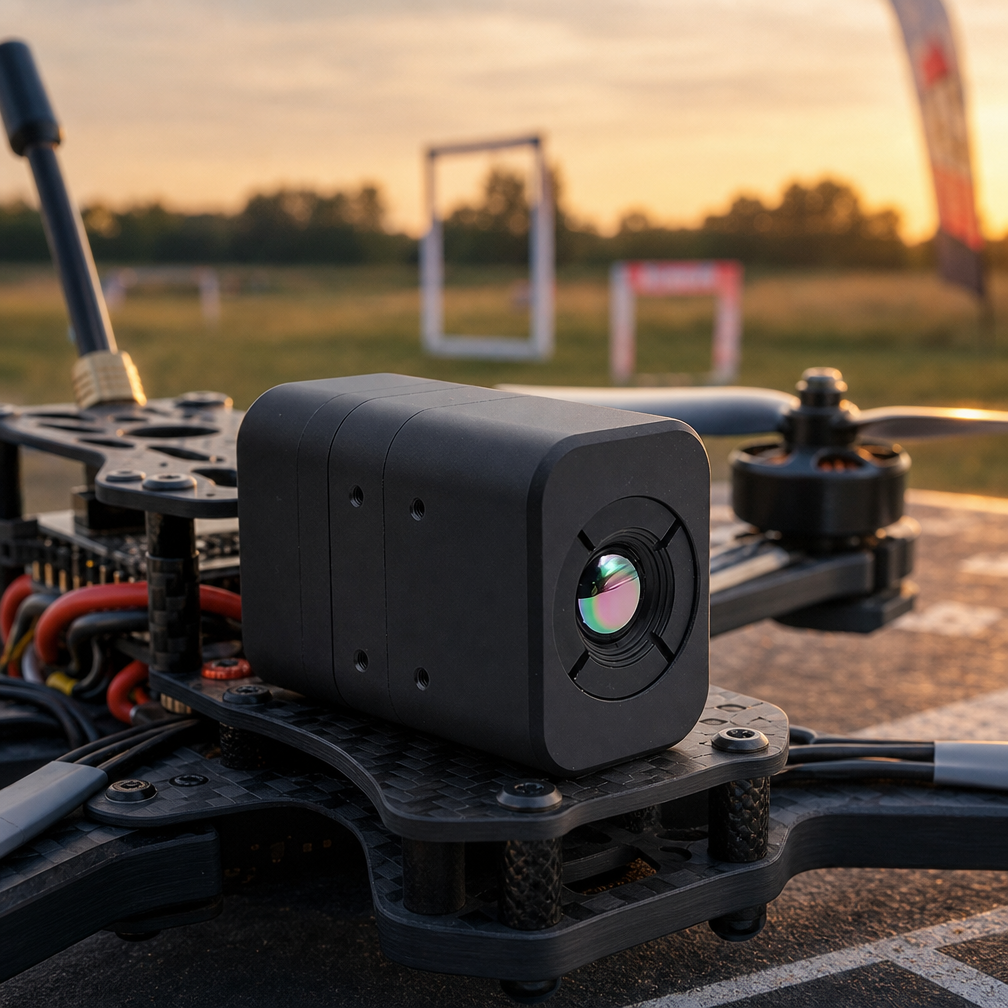

The JTA-IR003CA is an ultra-wide-angle 384×288 uncooled vanadium-oxide (VOx) thermal imaging module designed for FPV drones, UAV gimbals and compact thermal sighting systems. Its 4mm F1.0 lens delivers a wide 65.5°(H) × 49.0°(V) field of view (115° diagonal) ideal for close-range situational awareness and rapid target acquisition where a wide sweep matters more than long reach.

Outputting analog CVBS (PAL) video at 50 fps with <20 ms latency, it connects directly to standard FPV video transmitters and display systems with no conversion hardware. The module runs on a wide 5V~16V supply at <1.5 W, weighs just 74 g, and operates from -20°C to +60°C.

Key Features

384×288 VOx uncooled detector

● , 7~14μm spectral response

4mm F1.0 lens

● 65.5°(H) × 49.0°(V), 115°(D) ultra-wide FOV

50 fps PAL CVBS output

● , latency <20 ms

IFOV 2.93 mrad

●

● Wide voltage input

5V~16V

, low power

<1.5 W

(12V @ 120 mA ref)

74 g

● compact core, -20°C ~ +60°C operating range

● Simple wiring: CVBS · GND · Power 5V~16V

Specifications

Parameter

Specification

Model

JTA-IR-003CA

Sensor

Vanadium-oxide (VOx) uncooled infrared focal-plane detector

Resolution

384 × 288

Wavelength

7000 nm – 14000 nm

Lens

F1.0

Focal length

4 mm

Field of view

65.5°(H) × 49.0°(V) × 115°(D)

IFOV

2.93

Frame rate

50 fps

Latency

<20 ms

Power consumption

<1.5 W

Video format

PAL

Wide voltage input

5V ~ 16V

Operating temperature

-20°C ~ +60°C

Weight

74 g

Connection

CVBS · GND · Power 5V~16V

Power reference

12V @ 120 mAh

Applications

FPV drones · UAV gimbals · handheld thermal viewers · short-range night observation · thermal payload integration
