Specifications
Type :
Analog Camera,IP Camera,Digital Camera,Thermal Optical Network Camera,AHD CVI HD camera
Model Number :
JTA-28-P C2DT
Special features :
Waterproof / Weatherproof,2MP,1/3 inch CMOS,Infrared,Sony Sensor
Resolution :
640*480,32*32,384X288px,2.0mp 30fps,720P and 960P optional
Place of Origin :
Guangdong
Technology :
Infrared,NetWork,Pinhole,CVBS connector,Long Wave Infrared Thermal
Brand Name :
VastMatch
Sensor :
CMOS,Uncooled Microbolometer,infrared sensor,uncooled thermal sensor,Other
Style :
Mini Camera,Dome Camera,Board Camera,Camera module,robot
Description

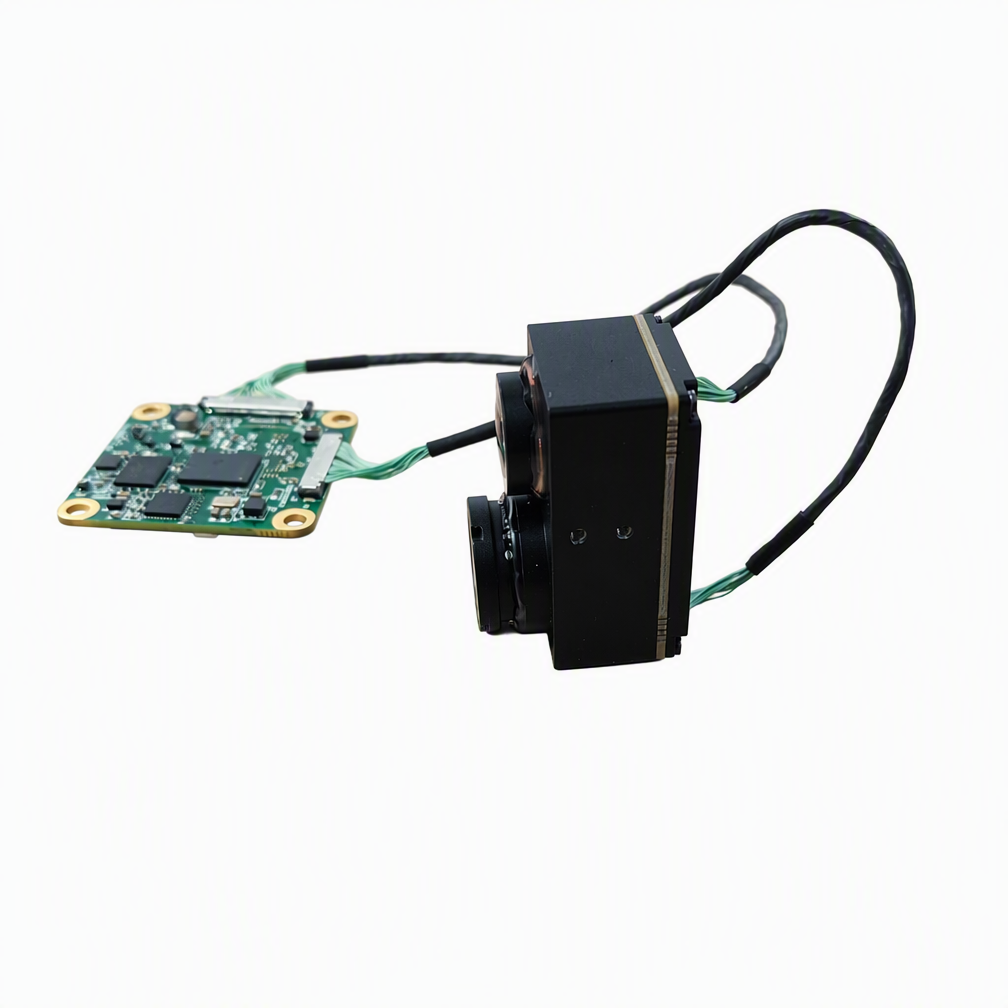

The JTA-28-P C2DT is the flagship of the C2 series, combining dual visible cameras (wide + telephoto) with a 384×288 LWIR thermal core for maximum detection range and all-weather targeting. With 1200m vehicle detection, five display modes, and 6 TOPS edge AI, it is the complete sensor package for demanding aerial missions.

Key Features

l Triple-Sensor Configuration-Wide visible (2.3mm, 72°×54°) + telephoto visible (16mm, 20°×15°) + 384×288 LWIR thermal (9.1mm, 28°×21°).

l Extended Detection Range-Car 1200m / Person 500m / Drone 130m; tracks targets up to 60km/h.

l 5 Display Modes-PIP, fusion, small-FOV, large-FOV, and single-thermal views.

l 6 TOPS Edge AI-Simultaneous recognition and tracking of 50+ person/vehicle/drone targets.

l Dual-Spectrum Fusion-Pixel-level alignment overlays thermal signatures with visible detail.

l Drop-In Integration-30×30mm mounting, 5-20V input, CRSF, BetaFlight/ArduPilot compatible.

Technical Specifications

Parameter

Specification

AI Processing

6 TOPS NPU

Visible Camera 1

1/1.8", 2.3mm, FOV 72°(H)×54°(V), 1920×1080@60Hz

Visible Camera 2

1/1.8", 16mm, FOV 20°(H)×15°(V), 1920×1080@60Hz

Thermal Core

384×288 @ 25Hz, 12μm pixel, 8-14μm LWIR

Thermal Lens

9.1mm, FOV 28°(H)×21°(V)

Target Recognition

Person / Vehicle / Drone (default)

Detection Range

Car 1200m / Person 500m / Drone 130m

Min. Tracking Pixels

16×16 px

Max. Target Speed

60 km/h

Max. Targets

>50

Display Modes

PIP / Fusion / Small FOV / Large FOV / Single Thermal

Control Protocol

CRSF

Firmware

BetaFlight / ArduPilot

Input Voltage

5-20V DC

Communication

2× UART

Video Input

1× DVP / 2× MIPI

Video Output

CVBS / USB

Board Size

36×36×12 mm

Mounting

30×30 mm

Camera Size

20×20×26 + 20×36×26 mm

Trajectory Prediction

Supported

Applications

l Long-range night surveillance

l Counter-drone and interdiction missions

l Border and coastal patrol

l Advanced search and rescue
