Description

Product Description

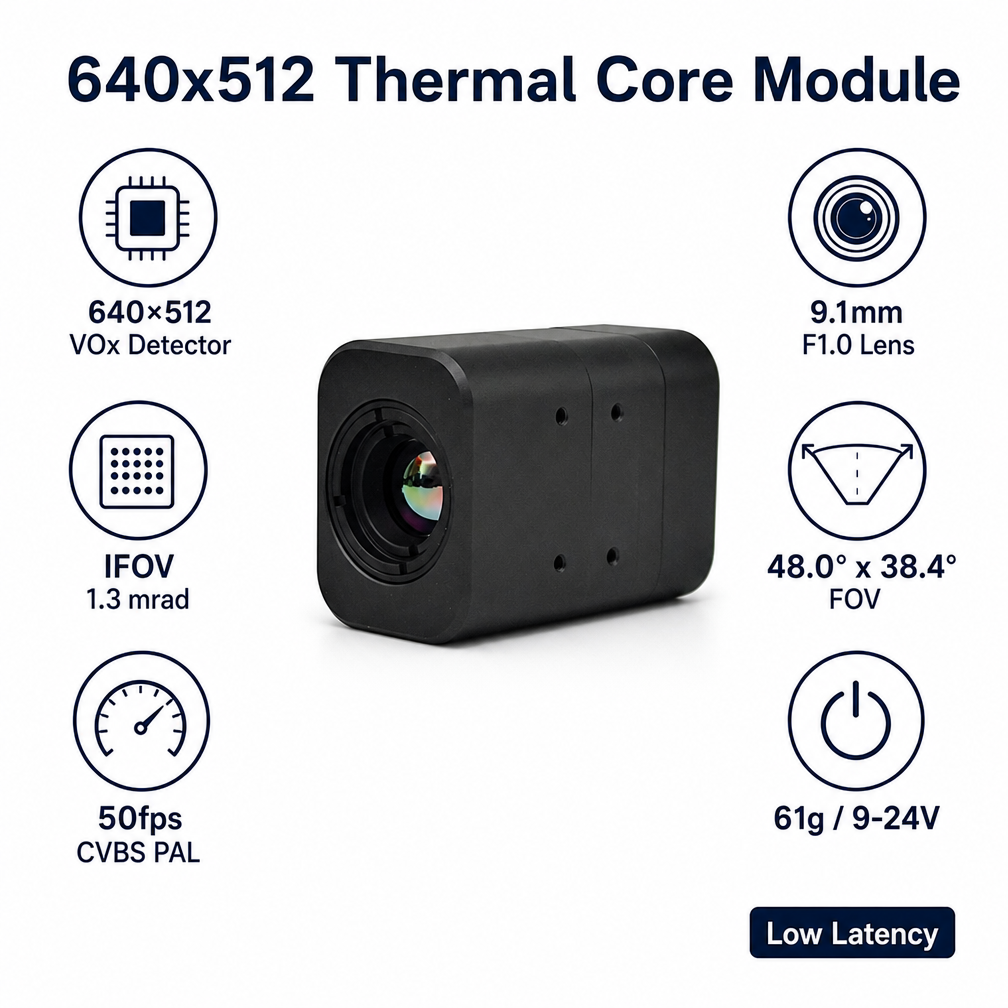

The JTA-IR006CA is a high-resolution 640×512 uncooled vanadium-oxide (VOx) thermal imaging module built for OEM integration into aerial photography platforms, industrial inspection equipment and portable thermal cameras. Its 9.1mm F1.0 lens provides a balanced 48.0°(H) × 38.4°(V) field of view (64.9° diagonal) a versatile mid-range optic suited to wide-area thermal detection and detail recognition at distance.

With analog CVBS (PAL) output at 50 fps and <20 ms latency, it integrates directly with standard PAL video links and display hardware. Operating on a wide 9V~24V input at <1.5 W, and weighing only 61 g, the module delivers dependable thermal imaging across -20°C to +60°C.

Key Features

640×512 VOx uncooled detector

● , 7~14μm spectral response

9.1mm F1.0 lens

● 48.0°(H) × 38.4°(V), 64.9°(D) FOV

50 fps PAL CVBS output

● , latency <20 ms

IFOV 1.3 mrad

● finer detail resolution than 4mm-class optics

● Wide voltage input

9V~24V

, low power

<1.5 W

(12V @ 120 mA ref)

61 g

● compact core, -20°C ~ +60°C operating range

● Simple wiring: CVBS · GND · Power

Specifications

Parameter

Specification

Model

JTA-IR006CA

Sensor

Vanadium-oxide (VOx) uncooled infrared focal-plane detector

Output resolution

640 × 512

Wavelength

7000 nm – 14000 nm

Lens

F1.0

Focal length

9.1 mm

Field of view

48.0°(H) × 38.4°(V) × 64.9°(D)

IFOV

1.3

Frame rate

50 fps

Latency

<20 ms

Power consumption

<1.5 W

Video format

PAL

Wide voltage input

9V ~ 24V

Operating temperature

-20°C ~ +60°C

Weight

61 g

Connection

CVBS · GND · Power 5V~16V

Power reference

12V @ 120 mAh

Applications

Aerial photography platforms · industrial inspection · building surveying · portable thermal viewers · OEM thermal camera integration
