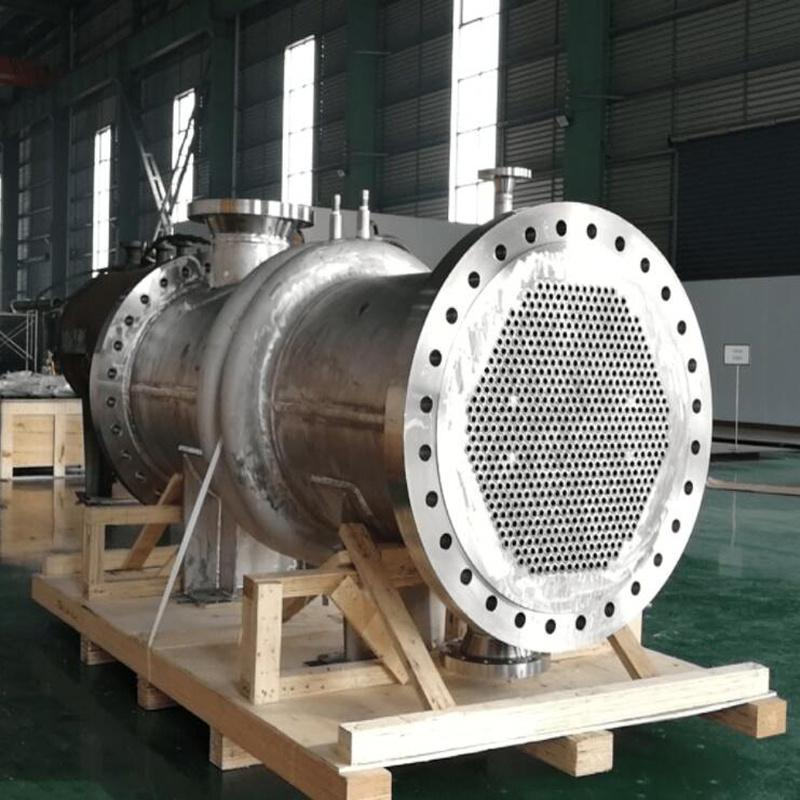

U Stamp ASME Titanium Shell And Tube Heat Exchanger For Seawater
U Stamp ASME Titanium Shell And Tube Heat Exchanger For Seawater
U Stamp ASME Titanium Shell And Tube Heat Exchanger For Seawater
U Stamp ASME Titanium Shell And Tube Heat Exchanger For Seawater
U Stamp ASME Titanium Shell And Tube Heat Exchanger For Seawater
U Stamp ASME Titanium Shell And Tube Heat Exchanger For Seawater
U Stamp ASME Titanium Shell And Tube Heat Exchanger For Seawater
U Stamp ASME Titanium Shell And Tube Heat Exchanger For Seawater
Specifications
Supply Ability :
6000sets/Year
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Style :
Steel Type
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Material :
Carbon Steel/SS/Duplex SS/Titanium/Nickel-Based Alloy/Copper Alloy
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Payment Terms :
T/T,L/C
Price :
Negotiation
Usage :
Dairy, Food, Beverage, Pharmacy, Cosmetic, etc
Brand Name :
Yiteng
Application :
Heater, Cooler, Condenser
Place of Origin :
Jiangsu China
MOQ :
1set
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Description

ASME U Stamp Titanium Heat Exchanger for Seawater

Product Overview

The ASME U Stamp Titanium Heat Exchanger is specially developed for seawater, offshore, and highly corrosive environments where conventional materials cannot provide sufficient service life.

Utilizing titanium alloy with outstanding resistance to seawater corrosion, erosion, and chemical attack, this heat exchanger ensures stable thermal performance in marine and coastal industrial applications.

Manufactured under ASME VIII Division 1 certification requirements, the equipment combines advanced mechanical design, precision fabrication, and strict quality inspection to meet demanding offshore project standards.

Wuxi Yiteng provides engineered thermal solutions including S&T heat exchanger, Tube bundle, and customized pressure equipment for marine, energy, and industrial applications.

Technical Specifications

Parameter Specification
Product Type Duplex Stainless Steel Shell and Tube Heat Exchanger
Design Standard ASME VIII Div.1 / TEMA / GB151 / EN13445
Certification ASME U Stamp Available
Material Grade Duplex 2205 (UNS S31803/S32205), Super Duplex 2507 (UNS S32750)
Heat Transfer Area 1~5000 m²
Design Pressure -0.1~35 MPa
Maximum Pressure Up to 50 MPa for special projects
Design Temperature -196℃ ~ +600℃
Shell Material Duplex Stainless Steel / Super Duplex Stainless Steel
Tube Material Duplex Stainless Steel / Titanium / Nickel Alloy
Tube Diameter Φ6~Φ50 mm Customized
Tube Length Customized according to design requirements
Tube Arrangement Triangular Pitch / Square Pitch
Tube Pass Single Pass / Multi Pass
Shell Pass Single Shell Pass / Multiple Shell Pass
Heat Transfer Structure Shell Side & Tube Side Flow Design
Tube Sheet Type Fixed Tube Sheet / Floating Head / U Tube Configuration
Welding Standard ASME Section IX / ISO 3834
Welding Process TIG Welding / Automatic Welding / Orbital Welding
Surface Treatment Pickling / Passivation / Mechanical Polishing
Inspection Standard RT / UT / PT / MT / PMI Testing
Pressure Test Hydrostatic Test / Pneumatic Leak Test
Documentation MTC / Welding Records / Inspection Reports / Test Reports

Manufacturing Features

Advanced Duplex Fabrication Capability

1. Duplex Material Expertise

Manufactured with Duplex 2205 and Super Duplex 2507, ensuring superior resistance to chloride corrosion, pitting and stress corrosion cracking in harsh environments.

2. Precision Shell & Tube Manufacturing

Advanced fabrication technology ensures accurate tube alignment, reliable sealing and optimized heat transfer performance for long-term operation.

3. Controlled Duplex Welding Process

Qualified welding procedures with strict heat input control maintain material performance and guarantee structural integrity.

Standards:
ASME Section IX | ISO 3834

4. High-Performance Tube Bundle Assembly

Precision CNC tube sheet machining and advanced tube expansion technology ensure excellent leakage prevention and easy maintenance.

5. Complete Quality Assurance

Every unit undergoes:

  • PMI Material Verification
  • NDT Inspection
  • Hydrostatic Testing
  • Dimensional Inspection

Delivering reliable ASME pressure equipment for global projects.

Applications

Chemical Processing

Designed for aggressive chemical media including chloride solutions, acids and corrosive process fluids, providing reliable heat transfer performance.

Offshore & Marine

Ideal for seawater cooling, offshore platforms and marine systems where superior corrosion resistance is essential.

Petrochemical Industry

Used in refinery and chemical processes requiring high strength, pressure resistance and long service life.

Desalination Systems

Excellent choice for seawater desalination and brine circulation applications due to outstanding chloride resistance.

Energy & Power Generation

Applied in heat recovery, cooling systems and thermal management equipment for efficient energy utilization.

Why Global Customers Choose YITENG

✔ Corrosion-resistant alloy manufacturing capability
✔ ASME pressure equipment expertise
✔ Customized design for complex applications
✔ Strict quality inspection system
✔ Reliable support for EPC and industrial projects
