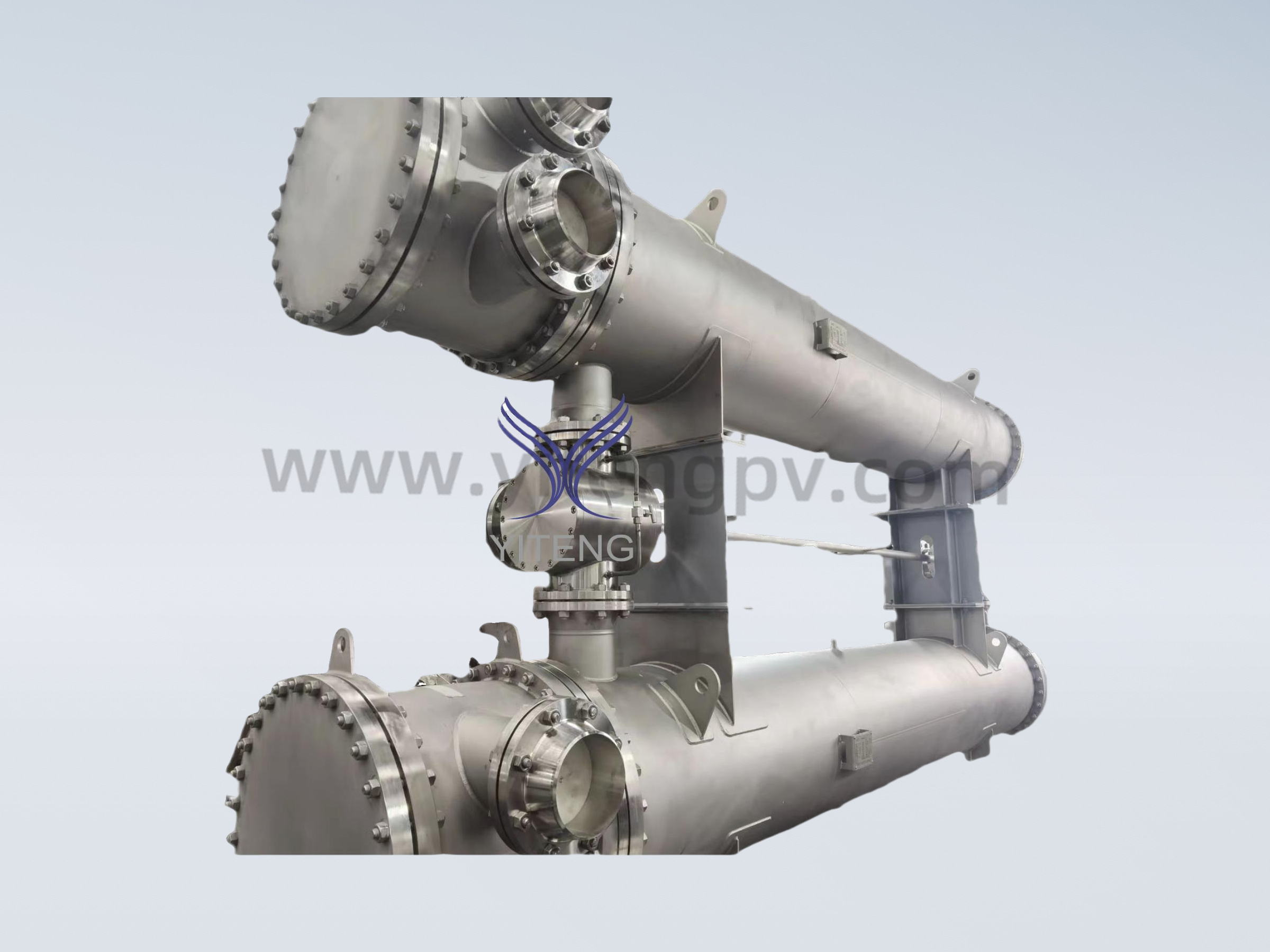

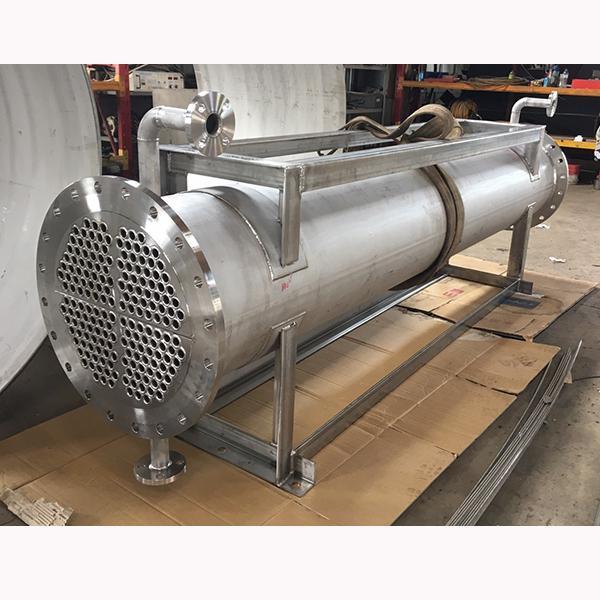

Industrial Shell and Tube Heat Exchanger for Chemical Process

Product Description

Wuxi Yiteng Pressure Vessel Co., Ltd. designs and manufactures customized Industrial Shell and Tube Heat Exchangers for chemical, petrochemical, pharmaceutical and industrial applications.

Shell and tube heat exchangers are widely recognized as one of the most reliable heat transfer solutions because of their:

✓ Strong pressure resistance
✓ Wide temperature range capability
✓ Long service life
✓ Flexible material selection
✓ Easy maintenance design

Yiteng provides customized solutions according to:

• Process conditions
• Temperature requirements
• Pressure rating
• Corrosion resistance
• Installation requirements

Working Principle

The shell and tube heat exchanger transfers heat between two fluids through tube walls.

Process:

1. Hot fluid flows through tubes or shell side
2. Cold fluid flows through the opposite channel
3. Heat transfers through tube walls
4. Fluids remain separated
5. Temperature exchange is achieved efficiently

The design prevents cross-contamination between process fluids.

Main Advantages

1. High Reliability Under Industrial Conditions

Designed for:

• High pressure operation
• High temperature applications
• Continuous production

Advantages:

✔ Stable performance
✔ Long operating life
✔ Suitable for critical processes

2. Customized Material Selection

Available materials:

• SS304
• SS316L
• Duplex Stainless Steel
• Titanium
• Nickel Alloy

Suitable for:

• Corrosive chemicals
• High temperature fluids
• Special process media

3. Easy Maintenance and Inspection

Design options:

✓ Removable tube bundle
✓ Floating head design
✓ Inspection ports
✓ Mechanical cleaning capability

Benefits:

• Reduced downtime
• Easier maintenance
• Lower operating cost

Application Industries

Chemical Industry

Applications:

• Process heating
• Process cooling
• Condensation
• Heat recovery

Petrochemical Industry

Applications:

• Oil cooling
• Gas cooling
• Steam condensation
• Refining processes

Pharmaceutical Industry

Applications:

• Purified water heating
• Process cooling
• Solvent recovery systems

Food Industry

Applications:

• Product heating
• Cooling processes
• Sanitary applications

Energy Industry

Applications:

• Waste heat recovery
• Cooling systems
• Thermal management

Technical Specifications

Product Configuration Options

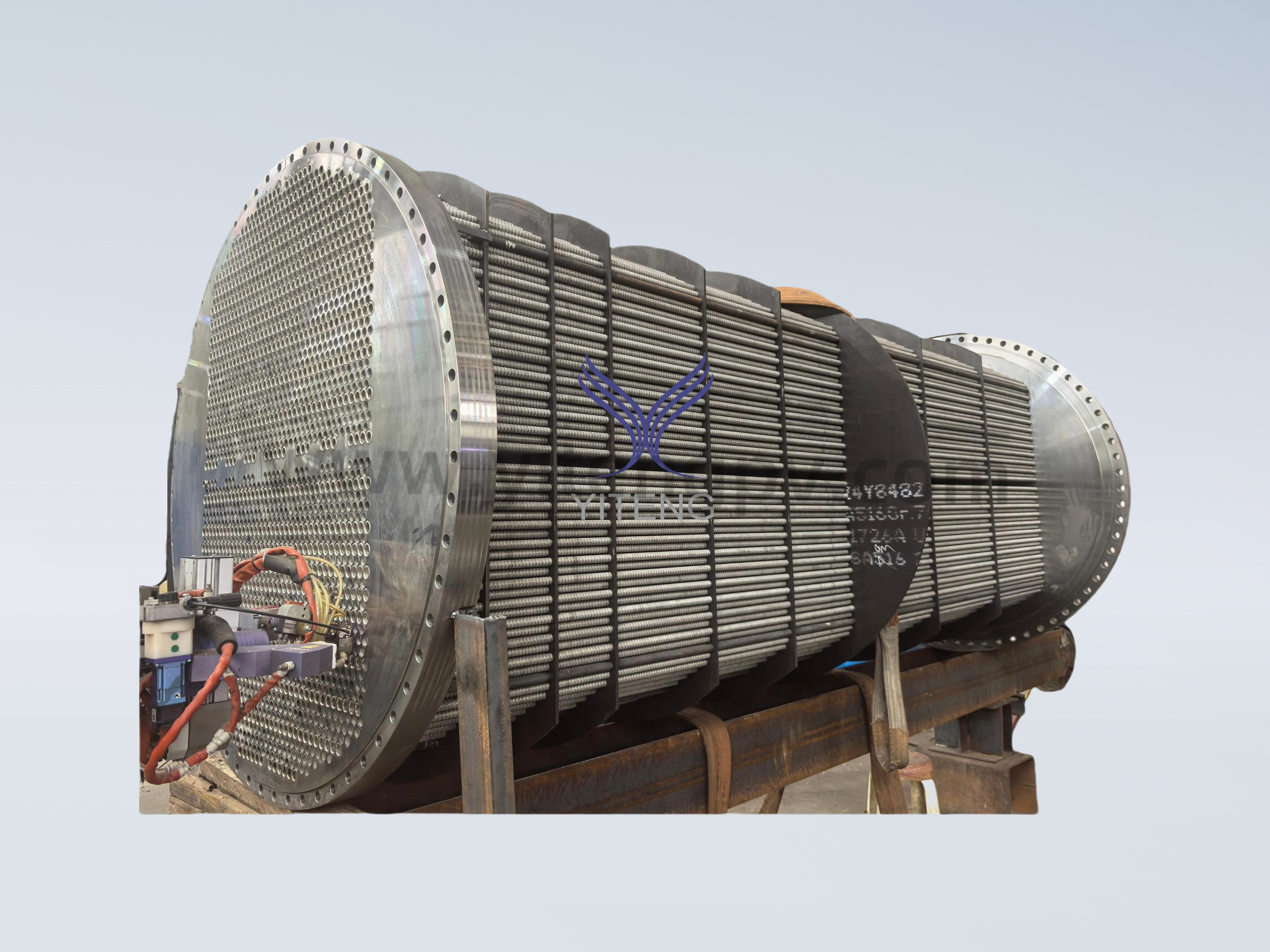

Fixed Tube Sheet Heat Exchanger

Suitable for:

• Stable operating conditions
• General industrial applications

Floating Head Heat Exchanger

Advantages:

• Easy cleaning
• Thermal expansion compensation
• Heavy industrial applications

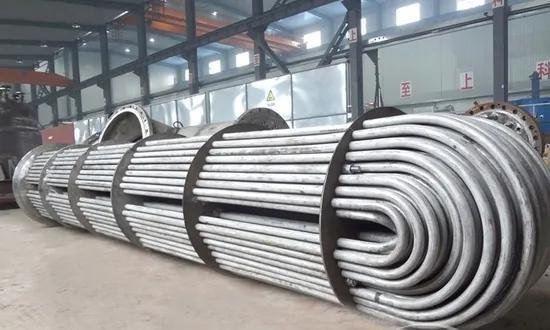

U-Tube Heat Exchanger

Advantages:

• High temperature difference applications
• Reduced thermal stress

Customized Engineering Service

Yiteng provides:

✓ Heat transfer calculation
✓ Process design
✓ Mechanical design
✓ Material selection
✓ Manufacturing
✓ Testing

Customization according to:

• Flow rate
• Heat duty
• Pressure
• Temperature
• Fluid characteristics

Manufacturing Capability

Yiteng specializes in:

• Shell and Tube Heat Exchangers
• Pressure Vessels
• Thin Film Evaporators
• Distillation Equipment
• Process Equipment Systems

Manufacturing advantages:

✔ Professional pressure equipment fabrication
✔ Advanced welding technology
✔ Stainless steel processing capability
✔ Customized export manufacturing

Surface Finishing

For chemical and high purity applications:

Available:

✓ Internal polishing
✓ Pickling
✓ Passivation
✓ Weld finishing

Materials:

• SS304
• SS316L
• Special alloys

Surface finish:

Ra ≤0.8 μm

High purity option:

Ra ≤0.4 μm

Quality Assurance

Inspection:

✓ Raw material certification
✓ Welding inspection
✓ Dimensional inspection
✓ Hydrostatic pressure test
✓ Leak test
✓ Final inspection report

Why Choose Yiteng Shell and Tube Heat Exchanger?

✔ Professional pressure equipment manufacturer

✔ Customized heat transfer solutions

✔ Suitable for chemical and EPC projects

✔ Strong stainless steel fabrication capability

✔ International quality requirements

✔ Factory direct supply

FAQ

Q1: What industries use shell and tube heat exchangers?

A:
Chemical, petrochemical, pharmaceutical, food, energy and industrial processing industries widely use them.

Q2: Can the materials be customized for corrosive chemicals?

A:
Yes. SS316L, duplex stainless steel and special alloys are available.

Q3: Can you manufacture according to ASME standards?

A:
Yes. Equipment can be designed according to customer standards and project requirements.
