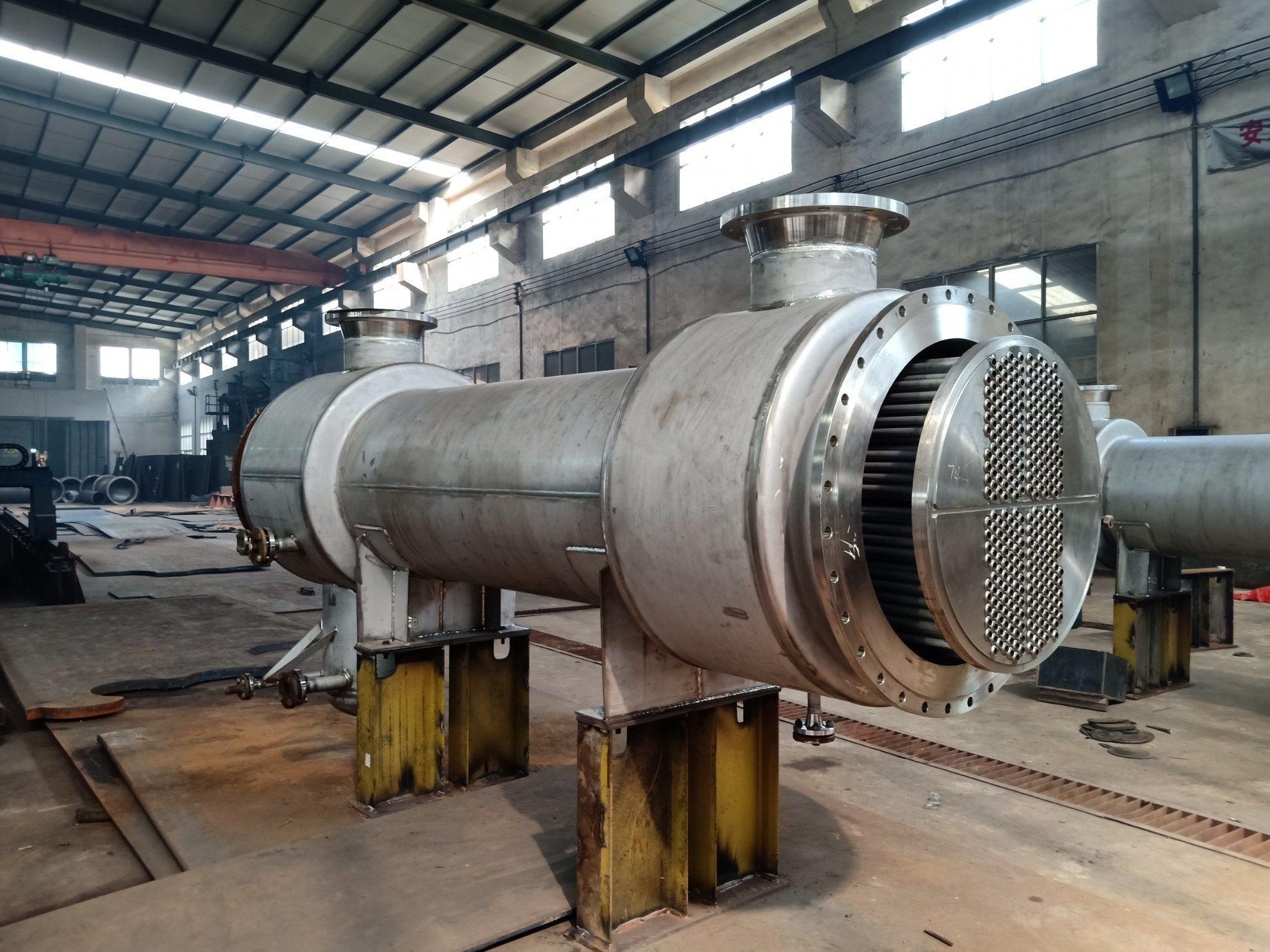

U Tube Shell and Tube Heat Exchanger for High Temperature Applications

Product Description

High Performance U Tube Shell and Tube Heat Exchanger Designed for Thermal Expansion Applications

Wuxi Yiteng Pressure Vessel Co., Ltd manufactures U Tube Shell and Tube Heat Exchanger solutions designed for high temperature, high pressure and demanding industrial heat transfer applications.

The U tube design allows the tube bundle to expand and contract freely under thermal stress, making it an ideal solution for processes involving significant temperature fluctuations.

Compared with conventional straight tube heat exchangers, U tube heat exchangers provide excellent thermal expansion compensation, reduced mechanical stress, and reliable operation under challenging industrial conditions.

Yiteng combines professional pressure vessel manufacturing technology, precision tube bundle fabrication, and international quality control systems to deliver customized U tube heat exchanger solutions for chemical, petrochemical, energy and industrial processing applications.

Product Features

Advanced U Tube Structure Design

The unique U-shaped tube configuration provides natural flexibility during thermal cycling.

Main advantages include:

✔ Excellent thermal expansion compensation
✔ Reduced tube stress during temperature changes
✔ Improved operational reliability
✔ Suitable for high-temperature applications
✔ Compact and efficient heat transfer design

The U tube structure is especially suitable for equipment exposed to repeated heating and cooling cycles.

Reliable Tube Bundle Performance

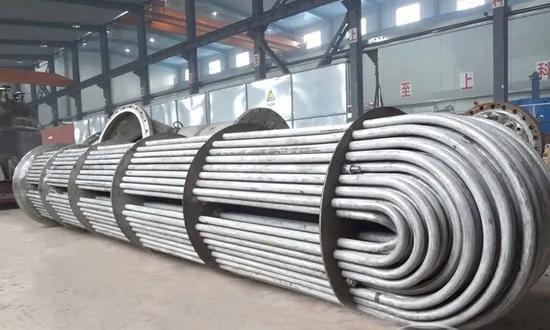

The tube bundle is the core component of a U tube heat exchanger.

Yiteng manufactures high-quality:

• U tube bundles
• Tube sheets
• Shell assemblies
• Pressure components

Manufacturing processes include:

✔ Precision tube bending
✔ Tube expansion
✔ Tube sheet drilling
✔ Welding assembly
✔ Dimensional inspection

Technical Specifications

Engineering Advantages

Suitable for High Temperature and Thermal Cycling Conditions

U tube heat exchangers are widely selected when process conditions involve:

• Large temperature differences
• Frequent start-stop operation
• Thermal expansion challenges
• High-temperature fluids

The flexible tube design helps minimize mechanical stress and improves equipment service life.

Material Options

Customized Materials for Different Process Conditions

Yiteng provides various material selections:

Stainless Steel U Tube Heat Exchanger

For general chemical, food and pharmaceutical applications.

Duplex Stainless Steel U Tube Heat Exchanger

For higher strength and corrosion resistance.

Titanium U Tube Heat Exchanger

For seawater and highly corrosive environments.

Nickel Alloy U Tube Heat Exchanger

For aggressive chemical applications requiring advanced corrosion resistance.

Manufacturing Process

Professional U Tube Heat Exchanger Fabrication

Tube Bending

High precision bending technology ensures accurate U tube geometry.

Tube Bundle Assembly

Professional assembly guarantees proper alignment and reliable operation.

Welding & Fabrication

Experienced welders manufacture pressure components according to international standards.

Inspection & Testing

Quality control includes:

• Material inspection
• Welding inspection
• NDT testing
• Hydrostatic pressure testing
• Final dimensional inspection

Application Industries

Petrochemical Industry

Used in high-temperature process heating, cooling and heat recovery systems.

Chemical Processing

Suitable for chemical reactors, circulation systems and thermal processing units.

Power Generation

Applied in energy systems requiring reliable heat transfer under high temperature conditions.

Industrial Manufacturing

Used in:

• Process equipment
• Thermal oil systems
• Industrial cooling systems

Why Choose Yiteng U Tube Heat Exchanger?

1. Professional Tube Bundle Manufacturing

Yiteng has extensive experience in tube bundle fabrication, including U tube bending, expansion and assembly.

2. High Temperature Reliability

The U tube structure provides excellent resistance against thermal stress caused by temperature fluctuations.

3. Flexible Custom Design

Customization options include:

• Tube material
• Shell diameter
• Number of passes
• Pressure rating
• Connection design

4. International Project Documentation

Available documents:

• Material certificates
• Welding qualification records
• Inspection reports
• Pressure test reports
• Manufacturing drawings

FAQ

What is a U Tube Shell and Tube Heat Exchanger?

A U tube shell and tube heat exchanger uses U-shaped tubes inside the shell, allowing thermal expansion without creating excessive stress on the tube system.

What are the advantages of U tube heat exchangers?

The main advantages include thermal expansion compensation, high-temperature reliability, easier maintenance and suitability for demanding industrial applications.

Where are U tube heat exchangers commonly used?

They are widely used in petrochemical, chemical processing, power generation and industrial heating systems.

Final CTA

Need a Reliable U Tube Shell and Tube Heat Exchanger Manufacturer?

Work with Wuxi Yiteng to develop customized thermal solutions engineered for high-temperature and challenging industrial environments.

Request Technical Consultation →
Send Your RFQ Today →
