Specifications
Brand Name :
Saiko
Model Number :
SK31
Certification :
CE
Place of Origin :
Jiangsu
MOQ :
64PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10000PCS/WEEK
Delivery Time :
10 workdays
Packaging Details :
inner box: neutral packing with label; 64pcs/ctn
Type :
Floor Heating Systems
Voltage :
230V, 50Hz
Power Consumption :
2W
Sensor :
NTC internal/external sensor
Setting range :
5-95℃
Switch differential :
0.5-10 adjustable
Description

Easy Heated Floor Digital Heating Temperature Control Electric Heating Thermostat

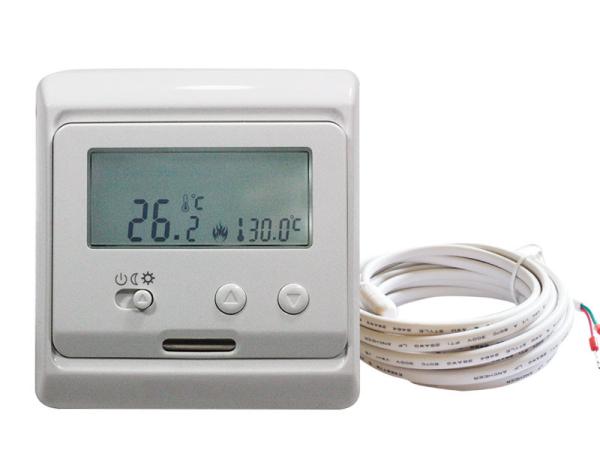

Heating thermostat with LCD screen, which has manual mode and energy saving mode. The thermostat is recommended for the control of electric heating device or on/off valve actuator in hydronic underfloor heating.

Technical data

Voltage: 220V-240V

Power Consumption: 2W

Setting Range: 5-35℃(Can adjust to 5-90℃)

External limitation: 5...60℃(Factory setting: 35℃)

Sensor: NTC internal/external sensor

Switch differential: 0.5-10 ℃adjustable (Factory setting: ±1℃)

Ambient temperature:-5-50℃

Protection housing: IP20

Housing material: Anti-flammable PC

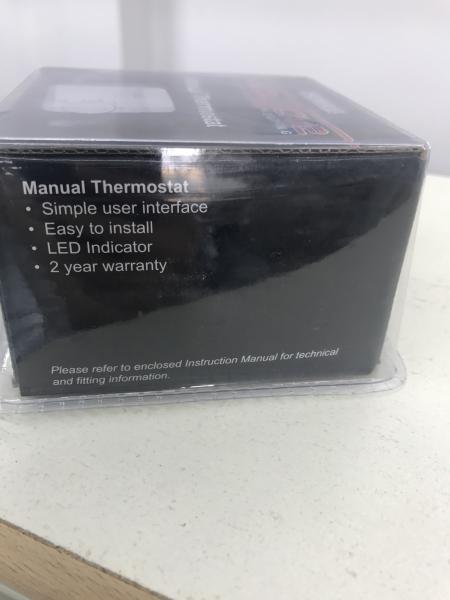

Package

Individual white box and outer carton, 64pcs in one carton

Dimension:mm

Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat

Display symbol

Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat

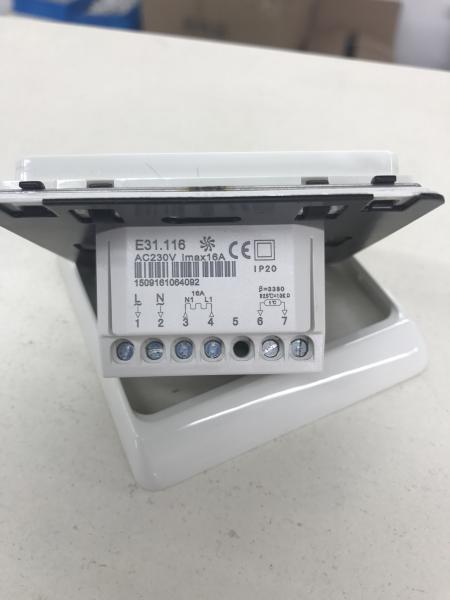

Wiring Diagram

Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat

Sensor failure

Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated.
