Warm Up Underfloor Heating Thermostat / Electric Heat Wifi Thermostat HVAC Systems
Warm Up Underfloor Heating Thermostat / Electric Heat Wifi Thermostat HVAC Systems
Warm Up Underfloor Heating Thermostat / Electric Heat Wifi Thermostat HVAC Systems
Warm Up Underfloor Heating Thermostat / Electric Heat Wifi Thermostat HVAC Systems
Warm Up Underfloor Heating Thermostat / Electric Heat Wifi Thermostat HVAC Systems
Warm Up Underfloor Heating Thermostat / Electric Heat Wifi Thermostat HVAC Systems
Warm Up Underfloor Heating Thermostat / Electric Heat Wifi Thermostat HVAC Systems
Warm Up Underfloor Heating Thermostat / Electric Heat Wifi Thermostat HVAC Systems
Specifications
Brand Name :
Saiko
Model Number :
SK51
Certification :
CE
Place of Origin :
Jiangsu
MOQ :
64PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000PCS/WEEK
Delivery Time :
3-5 workdays
Packaging Details :
64PCS/CTN (CTN SIZE:435*395*290mm)
Type :
HVAC Systems
Voltage :
AC230V
Current load :
16A floor heating thermostat
Setting range :
+5~+90℃ floor heating thermostat
Floor sensor :
Rubber-thermoplastic NTC sensor
Housing material :
Self-extinguishing PC
Description

Warm Up Underfloor Heating Thermostat / Electric Heat Wifi Thermostat HVAC Systems

Description

SK51 Weekly Programmable Underfloor Heating Thermostat is 7 day programmable ,possible to set 6 periods each day with different tempratures ,also you can select "manual mode " or "temporary control mode "according to your individual requirements .

Deatils

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Saiko

Type :Floor Heating Systems

Protective housing:IP20

Housing material: inflaming retarding PC

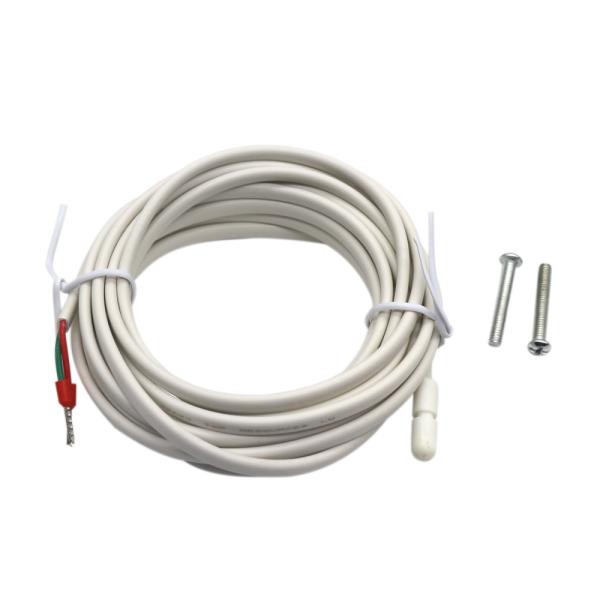

Floor Sensor:3m, rubber-thermoplastic NTC external sensor

Samples :available, 3 days

MOQ:64 pieces

Packing: blank box, 64 pcs/ctn

Warranty:2 year

Technical data

Power Supply AC200-240VAC 50/60HZ
Accuracy ±0.5ºC
Probe sensor NTC
Power Consumption <0.3W
Load current 3A(water heating),16A(electric heating)
Temperature Adjustable Range 5°C~90°C( can adjust to 35°C~90°C)
Limit Temperature Range 5°C~60°C( factory setting: 35°C)
Output Switch relay
Insulating condition Normal environment
Running program Set per 1 week as a cycle
Installation Wall mounted
Application Water Floor Heating System
Electric Floor Heating System
Infrared Heater System
Certificate CE,RoHS

Selection Table

MODEL CURRENT APPLICATION
E51.716 16A Built-in & floor sensor, floor limit sensor weekly programming

Sensor Failure:

E0:Built-in sensor short-circuited or disconnected

E1:Exernal sensor short-circuited or disconnected.

When shows E0/E1 error, thermostat must be checked till the error is eliminated.

Packaging & Delivery

Packaging Detaill:Gift box

Delivery Time:15 days

Dimensions:mm

Warm Up Underfloor Heating Thermostat / Electric Heat Wifi Thermostat HVAC Systems

Writing diagram

​Warm Up Underfloor Heating Thermostat / Electric Heat Wifi Thermostat HVAC Systems
