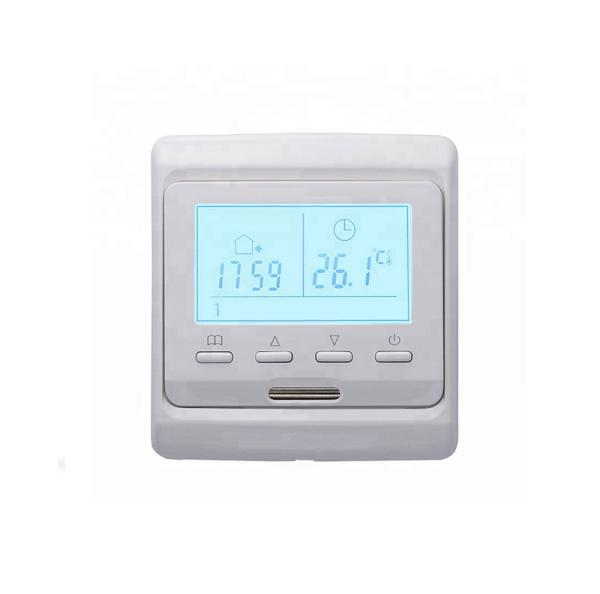

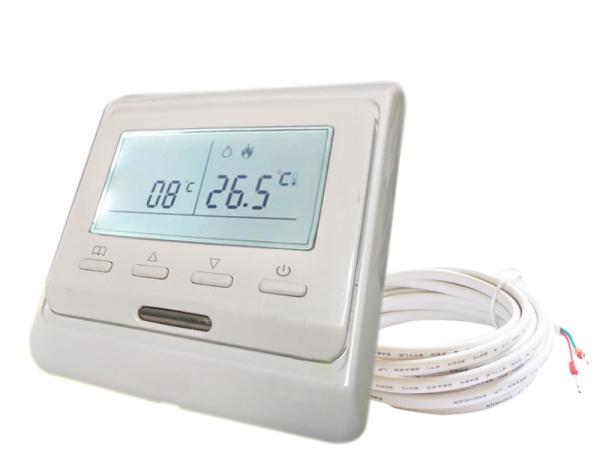

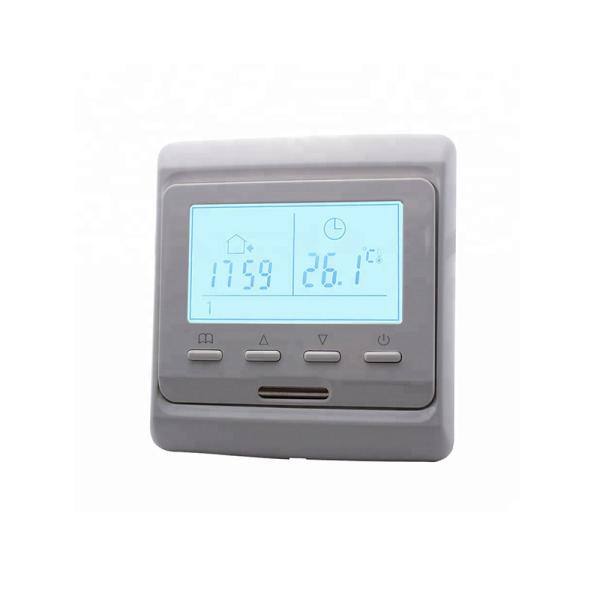

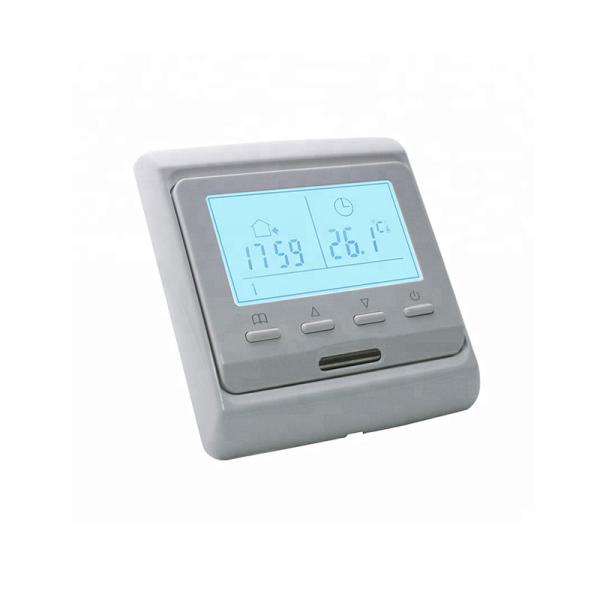

Underfloor Heating Thermostat Wifi , Electric Radiant Floor Heat Thermostat
Underfloor Heating Thermostat Wifi , Electric Radiant Floor Heat Thermostat
Underfloor Heating Thermostat Wifi , Electric Radiant Floor Heat Thermostat
Underfloor Heating Thermostat Wifi , Electric Radiant Floor Heat Thermostat
Underfloor Heating Thermostat Wifi , Electric Radiant Floor Heat Thermostat
Underfloor Heating Thermostat Wifi , Electric Radiant Floor Heat Thermostat
Underfloor Heating Thermostat Wifi , Electric Radiant Floor Heat Thermostat
Underfloor Heating Thermostat Wifi , Electric Radiant Floor Heat Thermostat
Specifications
Brand Name :
Saiko
Model Number :
SK50
Certification :
CE
Place of Origin :
Jiangsu
MOQ :
64PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000PCS/WEEK
Delivery Time :
3-5 workdays
Packaging Details :
64PCS/CTN (CTN SIZE:435*395*290mm)
Type :
Floor heating
Voltage :
AC230V
Current load :
16A
Setting range :
+5~+90℃
Floor sensor :
Rubber-thermoplastic NTC sensor
Housing material :
Self-extinguishing PC
Description

Underfloor Heating Thermostat Wifi , Electric Radiant Floor Heat Thermostat


Weekly circulation, it is possible to set 6 periods called events each day with different temperatures, also you can select "manual mode" or "temporary control mode" according to your individual requirements.

Features

Comes with a preprogrammed schedule that is suitable for most installations. However, you can customize this program any time you wish.
Changes the start time of a heating period automatically so that the desired temperature is reached at thetime that you set.
Controls the temperature of the floor through a temperature sensor that is placed in the floor construction.


Technical data

Power Supply AC200-240VAC 50/60HZ
Accuracy ±0.5ºC
Probe sensor NTC Sensor
Power Consumption <1W
Load current 3A(water heating),16A(electric heating)
Temperature Adjustable Range 5°C~90°C( can adjust to 35°C~90°C)
Limit Temperature Range 5°C~60°C( factory setting: 35°C)
Output Switch relay
Insulating condition Normal environment
Running program Set per 1 week as a cycle
Installation Wall mounted
Application Water Floor Heating System
Electric Floor Heating System
Infrared Heater System
Certificate CE,RoHS

Advanced setting (qualified person preferred)


When the thermostat is turned off, You can press"Menu" and turn on it at the same time ,then you can enter the mode of advanced setting.

Symbol Setting Up or Down
1 ADJ Temperature calibration

Adjust measured temperature
2 SEN Sensor mode

IN: built-in sensor
OUT: floor sensor
ALL: both sensors
3. LIT Limitation temperature

Adjust limitation value,
Limitation range:5℃~60℃
4 DIF

Switching
differential

 Adjust switching differential
5 LTP Antifreeze function Turn on/off Anti-frozen function
6 PRG Set vacation mode

00: 5/2 day mode

01: 6/1 day mode
02: 7 day mode
7 RLE Potential- free output and main power output in the same/different way

Change the present

linkage way
8 DLY Delay time of Potential- free output Change linkage delay time
9 HIT Max temperature Limitation temperature setpoint
AFAC Reset to factory settings Press""and hold for 5s,all parameters will be reset


Underfloor Heating Thermostat Wifi , Electric Radiant Floor Heat Thermostat

Dimension:mm
Underfloor Heating Thermostat Wifi , Electric Radiant Floor Heat Thermostat

Circuit diagram


Underfloor Heating Thermostat Wifi , Electric Radiant Floor Heat Thermostat

Sensor failure


Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated
