Electronic Temperature Controller Smart Thermostat Underfloor Heating 230V 50Hz With NTC Sensor
Electronic Temperature Controller Smart Thermostat Underfloor Heating 230V 50Hz With NTC Sensor
Electronic Temperature Controller Smart Thermostat Underfloor Heating 230V 50Hz With NTC Sensor
Electronic Temperature Controller Smart Thermostat Underfloor Heating 230V 50Hz With NTC Sensor
Electronic Temperature Controller Smart Thermostat Underfloor Heating 230V 50Hz With NTC Sensor
Electronic Temperature Controller Smart Thermostat Underfloor Heating 230V 50Hz With NTC Sensor
Electronic Temperature Controller Smart Thermostat Underfloor Heating 230V 50Hz With NTC Sensor
Electronic Temperature Controller Smart Thermostat Underfloor Heating 230V 50Hz With NTC Sensor
Specifications
Brand Name :
Saiko
Model Number :
SK31
Certification :
CE
Place of Origin :
Jiangsu
MOQ :
64PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10000PCS/WEEK
Delivery Time :
10 workdays
Packaging Details :
inner box: neutral packing with label; 64pcs/ctn
Type :
Floor Heating Systems
Voltage :
230V, 50Hz
Switching differential :
0.5℃~10℃ (factory setting: ±1℃)
Sensor :
NTC sensor
Setting range :
5-95℃
Switch differential :
0.5-10 adjustable
Description

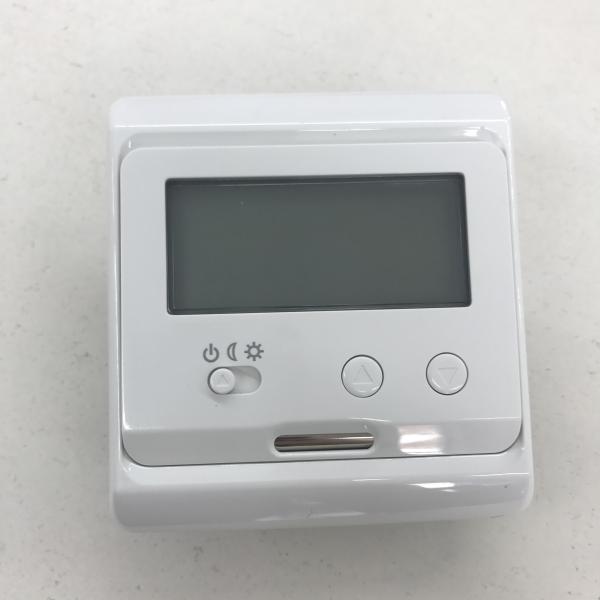

Electronic Temperature Controller Floor Heated Thermostat

Heating thermostat with LCD screen, which has manual mode and energy saving mode. The thermostat is recommended for the control of electric heating device or on/off valve actuator in hydronic underfloor heating.

Technical data

Voltage: 220V-240V

Power Consumption: 2W

Setting Range: 5-35℃(Can adjust to 5-90℃)

External limitation: 5...60℃(Factory setting: 35℃)

Sensor: NTC internal/external sensor

Switch differential: 0.5-10 ℃adjustable (Factory setting: ±1℃)

Housing material: Anti-flammable PC

Selection Table

Model Number Current Application
SK31.113 3A Built-in&floor sensor, floor limit sensor
SK31.123 3A Built-in&floor sensor, floor limt sensor, a potential-free output
SK31.116 16A Built-in&floor sensor, floor limit sensor

Package

Individual white box and outer carton, 64pcs in one carton

Electronic Temperature Controller Smart Thermostat Underfloor Heating 230V 50Hz With NTC Sensor

Electronic Temperature Controller Smart Thermostat Underfloor Heating 230V 50Hz With NTC Sensor

Wiring Diagram

Electronic Temperature Controller Smart Thermostat Underfloor Heating 230V 50Hz With NTC Sensor

Sensor failure

Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated.
