Specifications
Brand Name :
BJSTC
Model Number :
Dn315
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1
Price :
$800
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000000/per month
Delivery Time :
within 7 working days

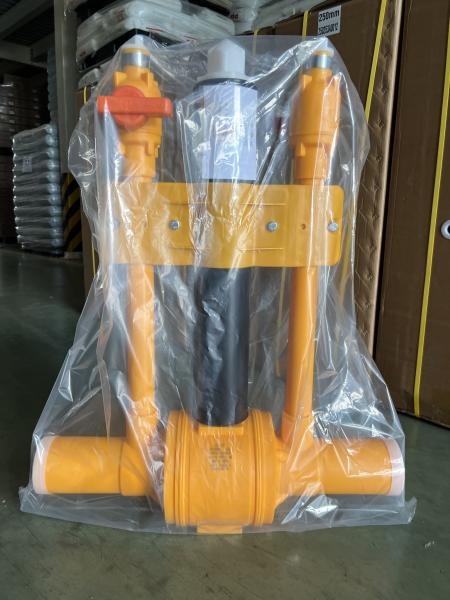

Packaging Details :
carton
Description

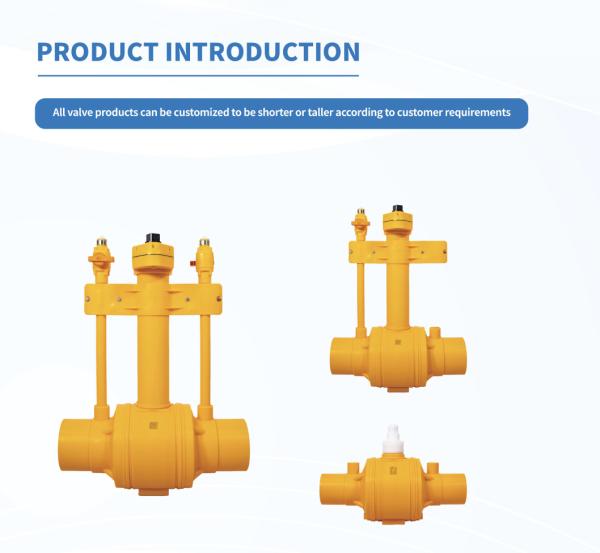

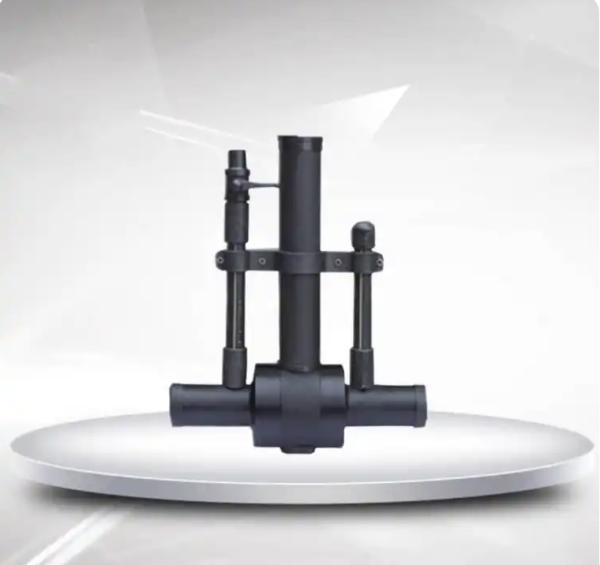

Introduction to PE Double Bleed Ball Valve

The PE double bleed ball valve is a type of valve primarily used in buried polyethylene (PE) pipeline systems, featuring corrosion resistance, excellent sealing performance, and other advantages. Below is its detailed introduction:

1. Structural Features

  • All-plastic Construction: It mainly consists of a valve body, valve ball, valve stem, operating cap, and sealing ring. The valve body, connecting pipes, and valve seats are typically made of polyethylene; the valve ball, retainer ring, and operating cap are made of modified polypropylene; the valve stem is made of nylon; and the seals are made of nitrile rubber. As an all-plastic ball valve, it requires no anti-corrosion treatment and is rust-proof.
  • Double Bleed Design: Equipped with two bleed ports, it is used to discharge media (such as gas) from the pipeline during maintenance or replacement operations, ensuring operational safety.
  • Operating Mechanism: It is usually designed with a structure for easy ground operation. For example, the operating cap is marked with directions for opening and closing. Opening and closing can be performed on the ground using a wrench, which is easy to operate with low torque.

2. Working Principle

The PE double bleed ball valve adopts a double-eccentric structural design. When the valve ball rotates, the bleed groove on it comes into contact with the valve seat, allowing fluid to enter or exit the valve body through the bleed groove, thereby realizing the transportation or shut-off of the medium. When bleed is required, the corresponding bleed valve is opened, and the medium in the pipeline can be discharged through the bleed port.

3. Performance Characteristics

  • Excellent Sealing Performance: It adopts a reasonable upper and lower support structure for the valve core and high-quality sealing materials (e.g., multiple NBR rubber O-rings between the valve core and valve body), ensuring no internal or external leakage and high safety and reliability.
  • Strong Corrosion Resistance: PE material has good corrosion resistance, enabling it to adapt to various corrosive media such as acids, alkalis, and salts. It also has excellent aging resistance and toughness, with a designed service life of up to 50 years.
  • Easy Construction: It can be connected to PE pipes and pipe fittings via electrofusion or hot fusion. The connection performance is good, construction is simple, installation is convenient, and maintenance is relatively easy.
  • Pressure and Temperature Adaptability: The nominal pressure is generally ≤0.5MPa, and the operating temperature range is -20℃~+40℃. The operating pressure under different temperatures is consistent with the requirements of PE pipelines.

4. Application Scenarios

  • Urban Gas: Widely used in gas output pipelines, main pipelines, and branch supply pipelines. It is an ideal actuator for transporting and shutting off media in buried PE gas pipelines.
  • Centralized Heating: Can be used in output pipelines, main pipelines, and branch pipelines of large-scale heating equipment, as well as for opening and closing pipelines and loops of heat exchangers.
  • Other Fields: Also applicable to various fluid pipelines, waste gas discharge pipelines, gas and heat supply pipelines in steel plants, as well as various heat treatment pipelines, industrial gas pipelines, and heat pipelines in industrial equipment.
