Pressure relief valve Dn250
Pressure relief valve Dn250
Pressure relief valve Dn250
Pressure relief valve Dn250
Pressure relief valve Dn250
Pressure relief valve Dn250
Pressure relief valve Dn250
Pressure relief valve Dn250
Pressure relief valve Dn250
Pressure relief valve Dn250
Specifications
Brand Name :
BJSTC
Model Number :
Dn250
Certification :
Quality Managment System Certification
Place of Origin :
China
MOQ :
1
Price :
$650
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000000/per month
Delivery Time :
within 7 working days
Packaging Details :
carton
Name :
PE Vavle fro gas appliaction
Standard Complicance :
GB/t 15558.4-2002 Buried polyethylene (PE) piping systenm for the supply of gaseous fules-part4:Valves
Raw Material Grade :
PE100
DN :
dn250
Standard Dimension :
SDR 11
Max Operating Pressure :
0.8 Mpa
Applicable Temperature Range :
-20℃~40℃
Applicable Medium :
Gas
Medium flow ditection :
Bi-directional valve
Fluid flow characteristics :
Full bore valve
Manufacture :
Beijing Songtiancheng Technology Co.,Ltd
Description

Pressure relief valve Dn250Pressure relief valve Dn250

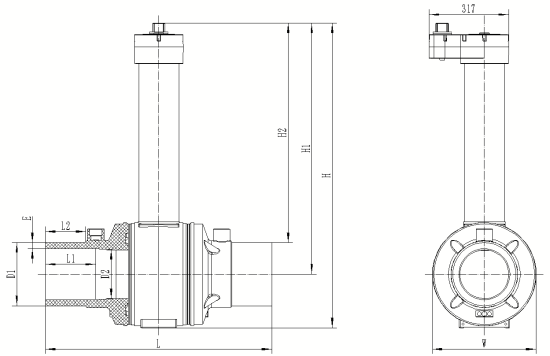

Dn250 overview

dn D1,min D1,max D2 Emin Emax L L1 L2 H H1 H2 w WEIGHT(Kg)
250 250 251.5 194 22.7 25.1 890 195 145 1210 997 871 413 60.8

Instruction for Use

  • The tubular section of the valve can be connected to pipes conforming to GB/T 15558.2-2023 and pipe fittings conforming to GB/T 15558.3-2023D. The connection shall be carried out in accordance with the relevant requirements of Chapter 5 "Pipe Connection" in the CJJ63-2018 .
  • The valve should be unpacked before connecting to the pipeline. After unpacking, confirm that the valve has a good appearance, operates normally, and verify that the valve model and the parameters listed on the identification match the design requirements.
