Specifications
Brand Name :
BJSTC
Model Number :
Dn315
Certification :
Quality Managment System Certification
Place of Origin :
China
MOQ :
1
Price :
$895
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000000/per month
Delivery Time :
within 7 working days
Packaging Details :
carton
Name :
PE Vavle fro gas appliaction
Standard Complicance :
GB/t 15558.4-2002 Buried polyethylene (PE) piping systenm for the supply of gaseous fules-part4:Valves
Raw Material Grade :
PE100
DN :
dn315
Standard Dimension :
SDR 11
Max Operating Pressure :
0.8 Mpa
Applicable Temperature Range :
-20℃~40℃
Applicable Medium :
Gas
Medium flow ditection :
Bi-directional valve
Fluid flow characteristics :
Full bore valve
Manufacture :
Beijing Songtiancheng Technology Co.,Ltd
Description

Pressure relief valve Dn315Pressure relief valve Dn315

1.Dn315 overview

dn D1,min D1,max D2 Emin Emax L L1 L2 H H1 H2 w WEIGHT(Kg)
250 250 251.5 194 22.7 25.1 890 195 145 1210 997 871 413 60.8
315 315 316.9 230 28.6 31.6 1049 280 155 1100 819 688 544 124.7

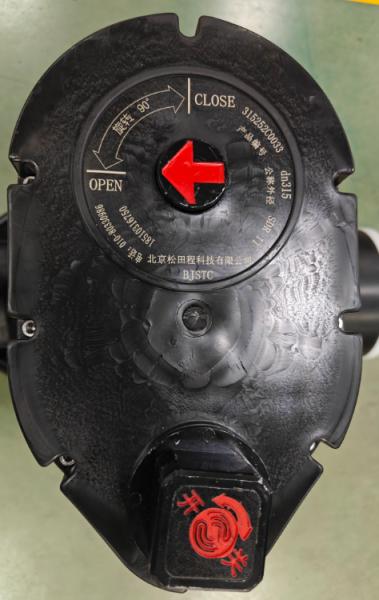

2 Gear information

Item Description
Gear Rate 9:1
Revolution 2 1/2
Crash Strength 203N.m
Operating Torque 68N.m
Operator Dimension 50mm(2＂)Square
Operating Temperature From -30℃ to 80℃
