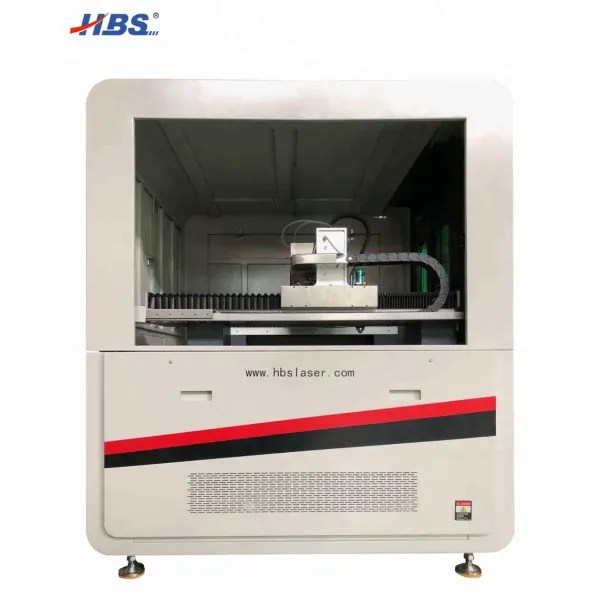

Metal Gantry Type Fiber Laser Cutting Machine For Industry
Metal Gantry Type Fiber Laser Cutting Machine For Industry
Metal Gantry Type Fiber Laser Cutting Machine For Industry
Metal Gantry Type Fiber Laser Cutting Machine For Industry
Metal Gantry Type Fiber Laser Cutting Machine For Industry
Metal Gantry Type Fiber Laser Cutting Machine For Industry
Metal Gantry Type Fiber Laser Cutting Machine For Industry
Metal Gantry Type Fiber Laser Cutting Machine For Industry
Metal Gantry Type Fiber Laser Cutting Machine For Industry
Metal Gantry Type Fiber Laser Cutting Machine For Industry
Metal Gantry Type Fiber Laser Cutting Machine For Industry
Metal Gantry Type Fiber Laser Cutting Machine For Industry
Specifications
Price :
US $50,000-75,000
Technical Class :
Fiber Laser
Model NO. :
HBS-LCT-500
Laser Classification :
Fluid Laser
Origin :
Beijing
MOQ :
1 Piece
Transport Package :
Carton
Trademark :
HBS
Laser Technology :
Laser Control Fault Cutting
Applicable Material :
Metal
Structure Type :
Gantry Type
Production Capacity :
100000 Sets
Description

Good Quality Fiber Laser Cutting Machine for Industry

18 months guarantee and life time

Good after-sales service

Metal Gantry Type Fiber Laser Cutting Machine For Industry

I Product Featurers

  1. High efficiency in electrical / optical conversion, Water cooling;
  2. Rayus laser source, with high beam output quality, high reliability;
  3. The cutting speed is 3~12 times than YAG type;2-3 times faster than CO2 laser cutting machine.
  4. Stable: Adopt top class fiber laser source, stable performance, core parts can reach 100,000 hours working time.
  5. Long term service life of the laser source to 100,000 hours, energy saving ;
  6. Smooth cutting surface,little deformation,pretty leveling appearance.
  7. Cost effective: Save energy and protects the environment. Low electric power consumption, it consumes only 20%-30% electricity compared to conventional CO2 laser cutting machine.

II Technical Specification

Laser type Raycus Fiber laser generator
Working area 500*500mm/600*600mm
Laser power 500W/800W/1000W
Cutting thickness ≤6mm(stainless steel)
Cutting speed ≤25m/min
CNC or Not Yes
Location accuracy ±0.03mm/m
Repeat location accuracy ±0.02mm/m
Equipment power 20KW
Cooling mode Water cooling
Laser wavelength 1064nm
Power supply 3-phase 380V/50Hz/20KVA
Machine weight ≤8000kg
Machine dimension(L*W*H) 4300*2500*1600mm
After-sales Service Provided Engineers available to service
machinery overseas

III Product Application

  1. Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet,
  2. Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts.

IV Packing Details

  • Dimension(mm): 855X1000X1170(machine head:530X220X660, table:840X600X760)
  • Net Weight(kg): 72(machine head: 13.5, table: 58.5)
  • Gross Weight(kg): 110

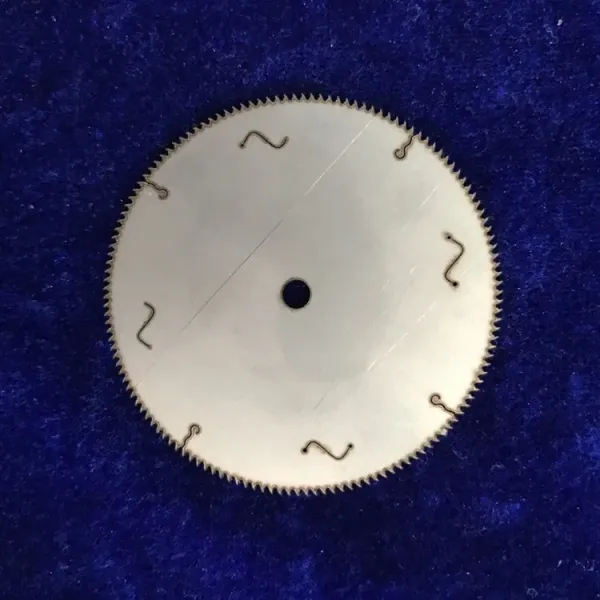

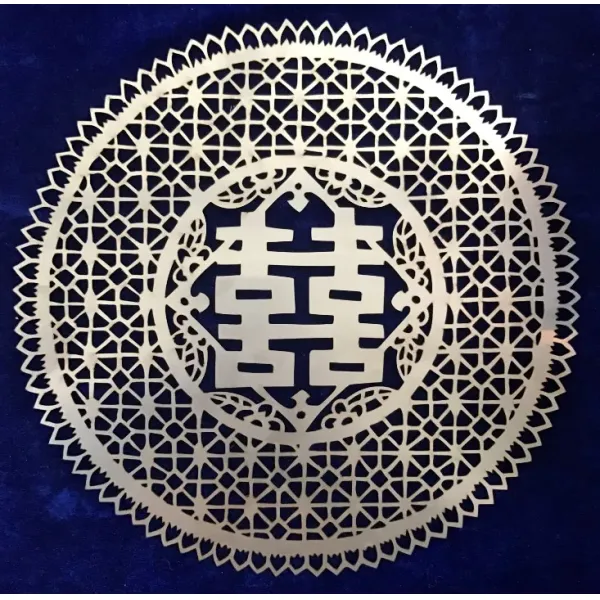

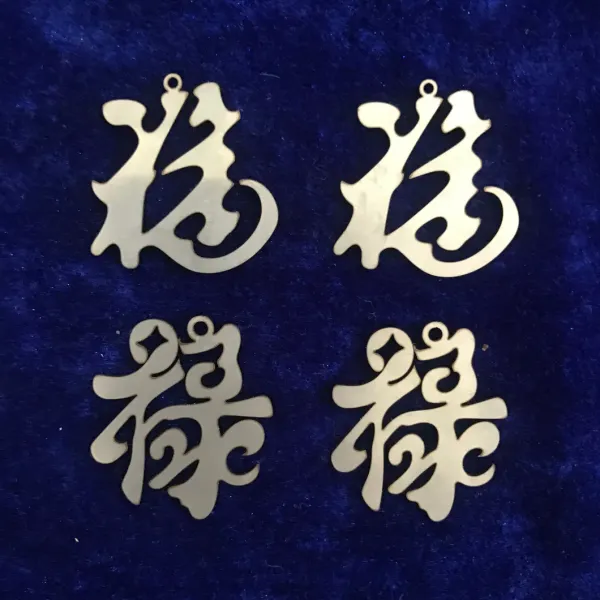

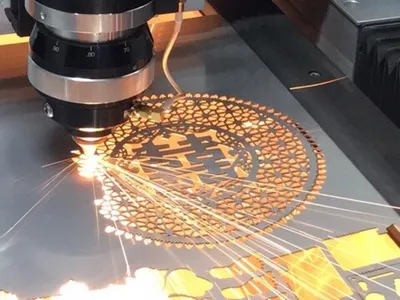

V Cutting samples

Metal Gantry Type Fiber Laser Cutting Machine For Industry

Metal Gantry Type Fiber Laser Cutting Machine For Industry

Metal Gantry Type Fiber Laser Cutting Machine For Industry

Metal Gantry Type Fiber Laser Cutting Machine For Industry
