Specifications
Brand Name :
HOWO Sinotruck
Place of Origin :
Hubei, China
MOQ :
1
Supply Ability :
5 unit/month
Delivery Time :
85 days
Packaging Details :
Nude, covered with protection film
Product name :
Integrated Wrecker Truck
Condition :
New
Drive type :
4x2 driving
Main Winch :
8 tons/10 tons, 2 pcs
Auxiliary Winch :
Optional
Underlift :
G70, 3 sections
Boom :
G70, 2 sections
Remote Control :
Wireless
Hydraulic :
DOT certified
Warranty :
3 Year
Description

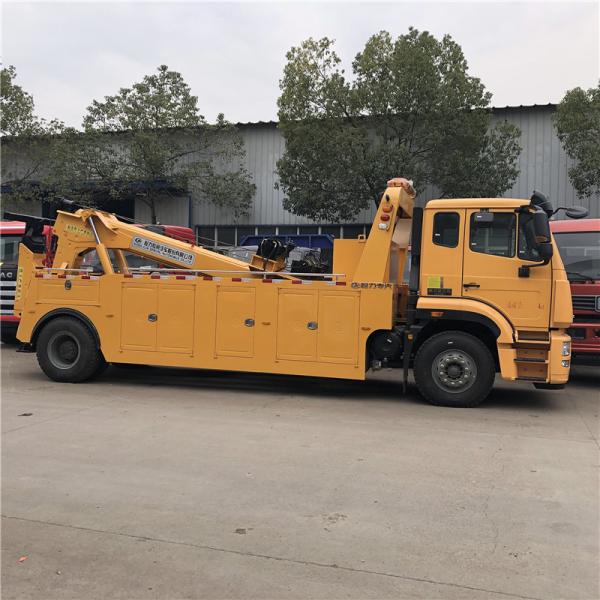

4X2 HOWO SINOTRUCK EURO 6 LHD 310HP 16 TONS MEDIUM DUTY TOW TRUCK
Product Description

The medium duty integrated series have different capacities from 8 tons to 18 tons.

ENGINEERED FOR STRENGTH AND DURABILITY

The 16 ton Integrated Medium Duty wrecker with a 35,600 lb. rated underlift and a modern, steel body that is maximized for available storage and deck space.

The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4, 6x4, 6x6, 8x4, 8x8.

Other special requirements you want.

Main Features
1. 10 Tons / 22,200 lbs. Planetary Winch, 2 Pcs. Total 20 Tons / 44,500 lbs.
2. 16 Tons / 35,600 lbs. Underlift Capacity, Tow Rate At Least 32 Tons / 71,000 lbs.
3. Spacious Tool Compartments
4. Multi-Positional Rear Jacks
5. Optional Remote Control
6. Available Low Profile Tow Bar
Truck Specs
16 Tons HOWO Integrated Wrecker Truck
Overview
Name 16 Tons HOWO Integrated Wrecker Truck
Dimension (LxWxH) 8950,9350,9100,9500×2550×3030(mm)
Total Mass 18000 Kg
Rated Payload 7170 Kg
Kerb Weight 15930 Kg
Passenger 3
Approach/Departure Angle 17/13
The Parameters of Chassis 　
Manufacture/Model HOWO
Driving Type 4*2 left hand drive
Wheel Base 5600 mm
Gearbox Ten speed forward and two reverse, manual
Tyre 10.00R20
The Number of Tyre 6+1(spare tyre)
Axles Front 6.5 tons and rear double 11.5 tons

Electric chair, ABS, power window, AC,

power steer, clutch booster, air brake, etc.

 Equipped
The Parameters of Engine
Manufacturer/Model MAN/MC07.31-60
Rated Power 310hp
Fuel Type Diesel oil
Displacement/Capacity 6870 ml
Emission Standard Euro 6
Cylinder In-line/6/turbo/inter-cooling/EGR+DOC+DPF+SCR/high pressure common rail
Max. Torque 1230 N.m
Rated Velocity 2200rpm
Body Specs
16 Tons Wrecker Body Specs
No. Item Content Details Unit
1 Name 16 Tons Wrecker Body
2 Winches 2×10 Tons Main Winches

Side puller (10 tons) is optional,

extra USD2,500
3 Underlift Underlift G70 material, 3 stage
4 Boom Boom G70 material, 2 stage, hexagon
5 Legs Rear Hydraulic rear supporting legs

Front support legs are optional.

Extra USD3,000
6 Frame LED Lights Frame, full size
7 Toolbox On Both Sides

Carbon steel Q345R, with

stainless steel handles

Aluminum tool box optional,

extra USD4,000
8 Hook-Ups Air and Electrical Hook-Ups 12V or 24V
9 Control Remote Wireless Control Standard button remote control.

Optional Joystick type remote control,

English Display Extra USD2,000
Hand Manual Control

On Lift and Right Sides,

English

Indication
10 Hydraulic Parts Hydraulic Pump
Hydraulic Hose
Hydraulic Connector
Valves Italy Hydrocontrol
Cylinders
11 Attachments 5 Sets of Forks 4 sets for axle, 1 set for suspension
U shape tyres holder 1 set
Safety Chains 2 pcs
12 Painting and Indication Electrophoresis Painting Toolbox EP painting

Subframe with boom and underlift

EP painting extra USD1,500
Surface Painting Epoxy Resin
Indication English Indication and Marks
Specifications
1 Underlift Retracted Lifting Capacity 12000 kg
Retracted Length 1505 mm
Extended Lifting Capacity 4200 kg
Extended Length 2760 mm
Undelift Tilt -10 °
Towing Capacity 24-36 ton
2 Boom Retracted Lifting Capacity (45°) 18 ton
Extended Lifting Capacity (45°) 6.3 ton
3 Main Winches Quantity 2 pcs
Pulling Power 10 ton
Type Planetary
Steel Wire Length 45 m
Steel Wire Diameter 18 mm
