6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
Specifications
Brand Name :
Sinotruck
Place of Origin :
Hubei, China
MOQ :
1
Supply Ability :
5 unit/month
Delivery Time :
85 days
Packaging Details :
Nude, covered with protection film
Product name :
Integrated Wrecker Truck
Condition :
New
Drive type :
6x4 driving
Main Winch :
10 tons, 2 pcs
Auxiliary Winch :
Optional
Underlift :
G70, 3 sections
Boom :
G70, 2 sections
Remote Control :
Wireless
Hydraulic :
DOT certified
Warranty :
3 Year
Description
6X4 HOWO 20 TONS HEAVY RECOVERY TRUCK UNDERLIFT TOW TRUCK
Product Description

The heavy duty integrated series have different capacities from 20 tons to 50 tons.

BUILT FOR STRENGTH, RELIABILITY AND DURABILITY

The 20 tons integrated wrecker features a 44,500 lb. 2- or 3-stage wrecker boom, corrosion, resistant body and optional 3- or 4-stage underlifts – all designed with strength and performance in mind.

The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4, 6x4, 6x6, 8x4, 8x8.

Other special requirements you want.

Main Features
1. 10 Tons / 22,200 lbs. Planetary Winch, 2 Pcs. Total 20 Tons / 44,500 lbs.
2. 20 Tons / 44,500 lbs. Underlift Capacity, Tow Rate At Least 40 Tons / 88,800 lbs.
3. Optional Remote Control
4. Sides Tool Boxes
5. Optional Front Legs and Side Pullers
Truck Specs
6x4 20 Tons HOWO Integrated Wrecker Truck
Overview
Name 6x4 20 Tons HOWO Integrated Wrecker Truck
Dimension(LxWxH) 10480x2550x3150 (mm)
Total Mass 25000 Kg
Rated Payload 20000 Kg
Kerb Weight 21900 Kg
Passenger 3
Approach/Departure Angle 16/14
The Parameters of Chassis
Manufacture/Model HOWO
Driving Type 6*4 RHD/LHD
Wheel Base 4600+1350 mm
Gearbox HW13710, ten speed forward and two reverse, manual
Front/Rear Track 2022,2041/1830,1830(mm)
Tyre 12R22.5
The Number of Tyre 10+1(spare tyre)
Front/Rear Suspension 1500/2900,2875(mm)
Leaf Spring Number 10/12
The Paremeters of Engine
Manufacturer/Model Sinotruck/WD615.87
Rated Power 290hp/213kw
Fuel Type Diesel oil
Displacement/Capacity 9726ml
Emission Standard Euro 2
Cylinder Direct injection/6 cylinders/4 strokes/turbo/intercooling/watercooling
Max. torque 1160N.m
Velocity 2200rpm
Body Specs
25 Tons Wrecker Body Specs
No. Item Content Details Unit
1 Name 25 Tons Wrecker Body
2 Winches 2×10 Tons Main Winches

Side puller/ extra winch is optional,

extra USD2,500
3 Under lift Under lift G70 material, 3 stage
4 Boom Boom

G70 material, 2 stage,

hexagon
5 Legs Rear Hydraulic rear supporting legs

Front supporting legs are extra

USD3,500 or front outrigger

extra USD5,000.
6 Frame LED Lights Frame, full size
7 Toolbox On Both Sides

Carbon steel Q345R, with

stainless steel handles

Aluminum tool box optional,

extra USD5,000
8 Hook-Ups Air and Electrical Hook-Ups 12V or 24V
9 Control Remote Wireless Control Button remote control

Joystick type remote control,

English Display, optional,

extra USD2,000
Hand Manual Control

On Lift and Right Sides,

English

Indication
10 Hydraulic Parts Hydraulic Pump
Hydraulic Hose
Hydraulic Connector
Valves
Cylinders

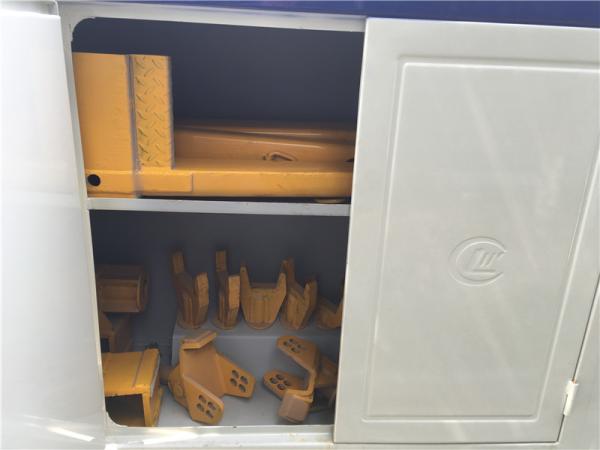

11 Attachments 5 Sets of Forks 4 sets for axle, 1 set for suspension
U shape tyres holder 1 set
Safety Chains 2 pcs
12 Painting and Indication Electrophoresis Painting Primer and surface painting

All subframe with boom, under lift

and tool box EP painting optional,

extra USD2,500
Surface Painting Epoxy Resin
Indication English Indication and Marks
Packaging

Boxes and under lift protected

for the painting
Specifications
1 Underlift Retracted Lifting Capacity 25000 kg
Retracted Length 1746 mm
Extended Lifting Capacity 7310 kg
Extended Length 3110 mm
Undelift Tilt -10 °
Towing Capacity 50 ton
2 Boom Retracted Lifting Capacity (45°) 20 ton
Extended Lifting Capacity (45°) 12 ton
Max. Lifting Tilt 33 °
Max. Lifting Height 7022 mm

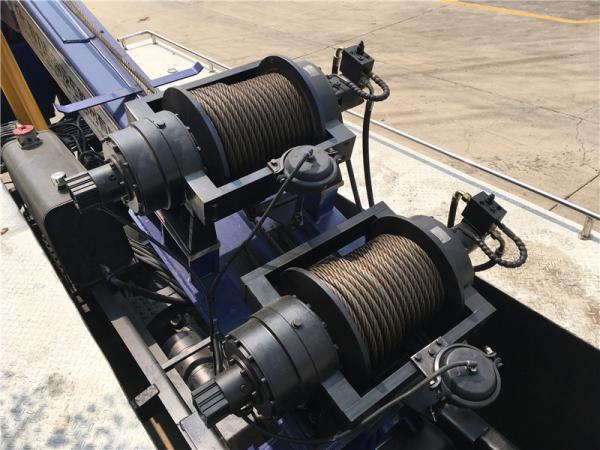

3 Main Winches Quantity 2 pcs
Pulling Power 10 ton
Type Planetary
Steel Wire Length 45 m
Steel Wire Diameter 18 mm
6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck6x4 Driving Howo 20 Tons Heavy Recovery Truck Underlift Tow Truck
