Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Specifications
private mold :
NO
products status :
Stock
type :
Barcode Scanner
scan element type :
laser
colour depth :
32 Bit
interface type :
usb, COM, PS/2, rs232
max paper size :
A4 Size
optical resolution :
4mil
scan speed :
300 Scans/sec
Brand Name :
Luckydoor
Place of Origin :
Guangdong, China (Mainland)
warranty(year) :
2-Year
after-sales service :
Return and Replacement, Others, Repair, Free spare parts, Onsite Training and Inspection, Call Center and on-line Technical Support
software development kit (sdk) :
NO
color :
Black
Product name :
1d laser barcode scanner
Scan type :
Single laser line
Interface :
USB-HID, USB-COM, PS2, RS232
Working voltage & current :
5V,85mA
Shell material :
ABS+PC
Application :
Logistics,Supermarket,Store,Libary,Warehouse,Hospital,etc
Certificate :
CE, ROHS, FCC
Light source :
650nm Laser
Decode Capabilities :
Reads Standard 1D
Keywords :
Barcode Scaner
Description
Product Description

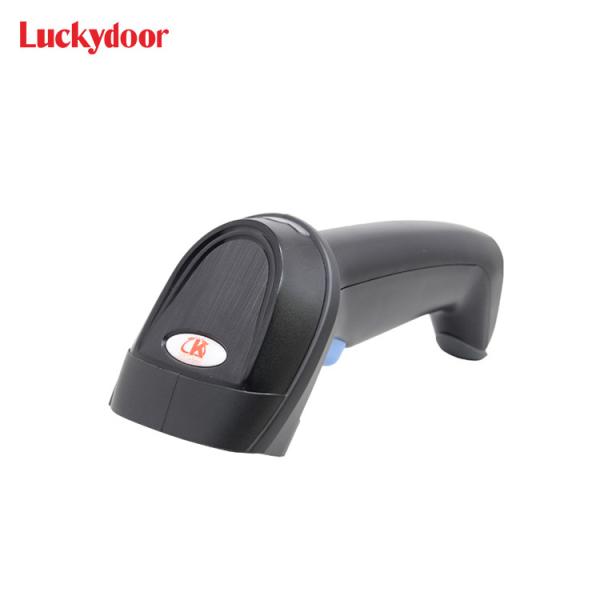

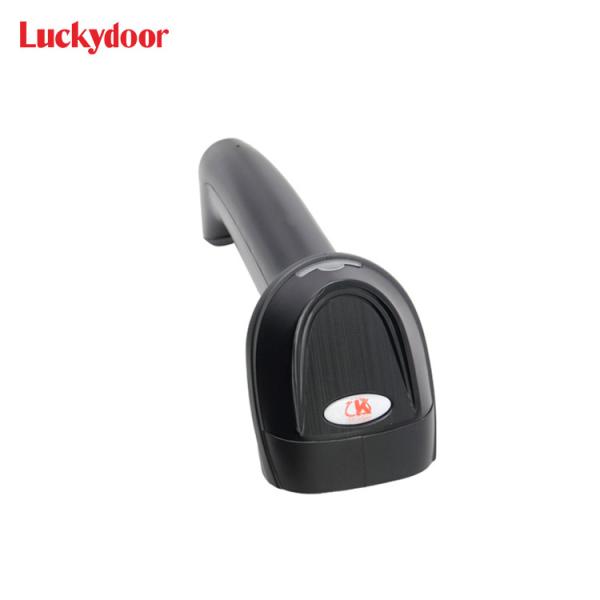

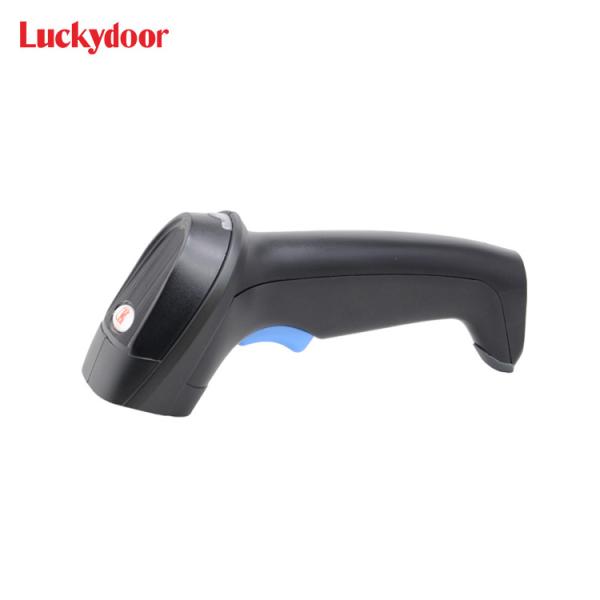

factory supply K-211 Plug And Play handheld 1d Wired laser Barcode Scanner usd bar code reader

The K-211 is an entry level handheld barcode reader ,its reading speed can upto 300 scan/s ,idea for retail such as convenience stores ,medical stores etc .this 1d barcode reader is easy to set up and use ,quickly capture and decode barcode on products. There are two indication methods to indicate the success of barcode reading, speaker and led light.
Product Features
• No need install driver or any other software ,Plug and Play
• Resolution support 0.1mm barcodes
• Muiltiple interfaces USB,RS232,PS2
• 15% print contrast barcodes support
Specification
Light Source
650nm laser(Safe visible laser diode)
Decode Capability
UPC-A, UPC-E, EAN-8, EAN-13, ISSN, CODE39, CODE 39 Full ASCII, MSI, CODE93, Plessey, CODE128, Codebar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Standard 2 of 5, ISBN, Code 11, Code 32(Italian pharm code), Code 39 extended, GS1-128 and ITF-14, SISAS, GS10 mnidirecional, RSS14, GS1 Limited, Aviation25, China Post.
Scan Type
Single Laser
Scan Speed
≥150 times/s
Scan Mode
ManuallyContnuous/Automatic
inductive Scanning (Optional)
Scan Angle
Skew 55°, Rotation 30°, Pitch 65°
Resolution
≥3mil
Depth of field
10-280mm(0.33mm, PCS90%)
Bit Error Rate
Less than 1/5million
Interface
USB-HID, USB-COM, PS2, RS232
Dimension
83mm*70mm*172mm
Weight
126.6g
Material
ABS+PC
Cable
1.8M straight
Operating Temperature
-20℃~50℃
Storage Temperature
-40℃~70℃
Humidity
5%~95%(Non-condensing)
DropShock Resistance
Withstands multiple times 3m drops to concrete
Voltage
DC5V±1%
Working Current
85mA
Details Images
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Product Advantages
• Durable: CCD scanners have no internal moving parts so they are typically a bit more durable than a laser scanner.
• More Economical: CCD scanners, on average, are usually less costly than other barcode scanners.
• Scan In Direct Sunlight & On Device Screens: Essentially, a CCD scanner is "taking a picture" of the barcode. Due to this
scanning process, CCD scanners are able to operate in bright sunlight. Most CCD scanners are also able to read scans off a computer or other devices screens.
• Eye Safe: Laser could be a little bit harmful for eyes, if it directly pointed to eyes.

Application

• Health care and public facilities
• Supermarkets and Convenience Stores
• Library and clothing retail store
• Warehouse and inventory
Recommend Products
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
K-625BT 2D wireless barcode scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
L500RB 2D wireless barcode scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
L500 new model 2D wired barcode scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
L600 2D desktop barcode scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
P-80B 80mm thermal receipt printer
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
K-929H 2D desktop barcode scanner
Company Profile
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
Luckydoor Factory Handheld USB bar Code Scanner Laser Wired bar Code Laser Barcode Scanner
FAQ
1,How do I use a handheld barcode scanner?

It is quite simple to use it , connect the usb cable to scanner through RJ45 ,and the other end usb interface to computer or other
devices ,then will be a beep and led light on , press the trigger one laser line will come out , open Excel or word or note in
your computer ,and make sure the mouse cursor flashing in those files , then press the trigger of the barcode scanner ,make sure
the single laser line cover the barcode in the paper ,then it will read and upload the data.

2,do we need to install driver before we use barcode scanner?

No need to install driver if use the barcode scanner through usb interface , but if use RS-232 interface ,need to install special
App to receive the data , if use PS2 interface ,need to reboot the computer to activate it

3,Is the service of OEM & ODM available ?
Yes ,we are professional manufacturer ,both OEM & ODM available

4,How about the MOQ to order the product barcode scanner?

Sample barcode scanner to test MOQ is 1pc

5,what is the warranty time of this laser barcode reader ?

The standard warranty time is 2 years on the scanner ,and 6month on the cable , extended warranty service is available and
negotiable

Tag: 617nm LED QR Code Reader,
1D 2D Corded POS Barcode Scanner,
Compatible POS Barcode Scanner
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Domestic Market(25.00%),South Asia(10.00%),Eastern Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Mid East(5.00%),Oceania(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Barcode Scanner,Barcode Reader,POS System,Receipt Printer,Touch Screen Monitor

4. why should you buy from us not from other suppliers?
6 years factory experience, cooperate with many big brands, much experience in OEM and ODM orders. Competitive price, quality products, fast delivery, and reliable service. Your all in one station.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,French
