Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner
Specifications
private mold :
NO
products status :
Stock
type :
Barcode Scanner
scan element type :
laser
colour depth :
32 Bit
interface type :
usb, COM, PS/2, rs232
max paper size :
A4 Size
optical resolution :
3mil
scan speed :
300 Scans/sec
Brand Name :
Luckydoor
Place of Origin :
Guangdong, China (Mainland)
warranty(year) :
2-Year
after-sales service :
Return and Replacement, Others, Repair, Free spare parts, Onsite Training and Inspection, Call Center and on-line Technical Support
software development kit (sdk) :
NO
color :
Black
Product name :
1d bar code reader
Scan type :
Single laser line
Interface :
USB-HID, USB-COM, PS2, RS232
Working voltage & current :
5V,85mA
Shell material :
ABS+PC
Color :
Deep grey
Weight :
129.5g
Dimensions (W x D x H) :
90*66*173mm
Application :
Logistics,Supermarket,Store,Libary,Warehouse,Hospital,etc
Certificate :
CE, ROHS, FCC
Description

Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner

Cost-Effective Wired Omni-Directional Portable 1D bar Code laser Reader Handheld Barcode Scanner

Product Description

K-211 can be an entry level general purpose 1D linear imager barcode scanner. It is ideal for retail, light manufacturing, document processing, and financial institutions where point of sale, asset tracking, inventory control or other daily operations are being conducted. It is small, lightweight and ergonomic design, combined with its wide angle scanning which makes this scanner the perfect solution for your introduction into data capture.

Specification

Light Source 650nm laser(Safe visible laser diode)
Decode Capability UPC-A, UPC-E, EAN-8, EAN-13, ISSN, CODE39, CODE 39 Full ASCII, MSI, CODE93, Plessey, CODE128, Codebar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Standard 2 of 5, ISBN, Code 11, Code 32(Italian pharm code), Code 39 extended, GS1-128 and ITF-14, SISAS, GS10 mnidirecional, RSS14, GS1 Limited, Aviation25, China Post.
Scan Type Single Laser
Scan Speed ≥150 times/s
Scan Mode ManuallyContnuous/Automatic
inductive Scanning (Optional)
Scan Angle Skew 55°, Rotation 30°, Pitch 65°
Resolution ≥3mil
Depth of field 10-280mm(0.33mm, PCS90%)
Bit Error Rate Less than 1/5million
Interface USB-HID, USB-COM, PS2, RS232
Dimension 83mm*70mm*172mm
Weight 126.6g
Material ABS+PC
Cable 1.8M straight
Operating Temperature -20℃~50℃
Storage Temperature -40℃~70℃
Humidity 5%~95%(Non-condensing)
DropShock Resistance Withstands multiple times 3m drops to concrete
Voltage DC5V±1%
Working Current 85mA
Product Feature

1.Single scanning beam, three directions

2.Light sources:650nm laser( safe visible laser diode)

3.Scan Speed: >300times/sec

4.Depth of scan field:0-280mm(0.33mm,PCS90%)

5.Bite Error Rate: less than1/5 million

6.Good stability,suitable for various commercial uses, and industrial

7.ARM 32bit CPU supports

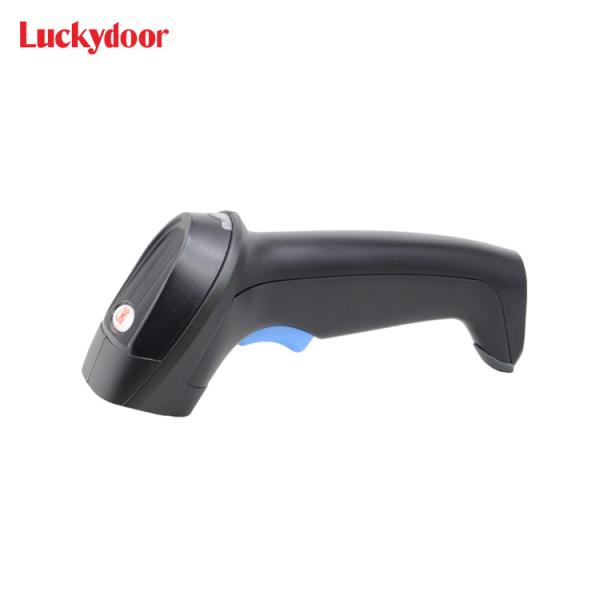

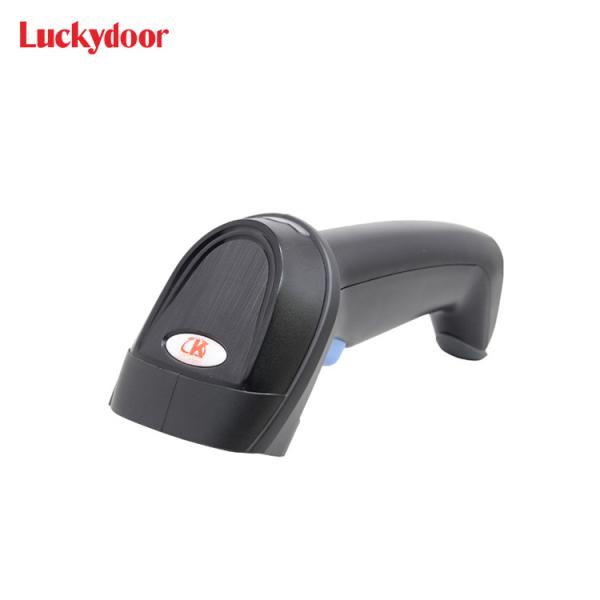

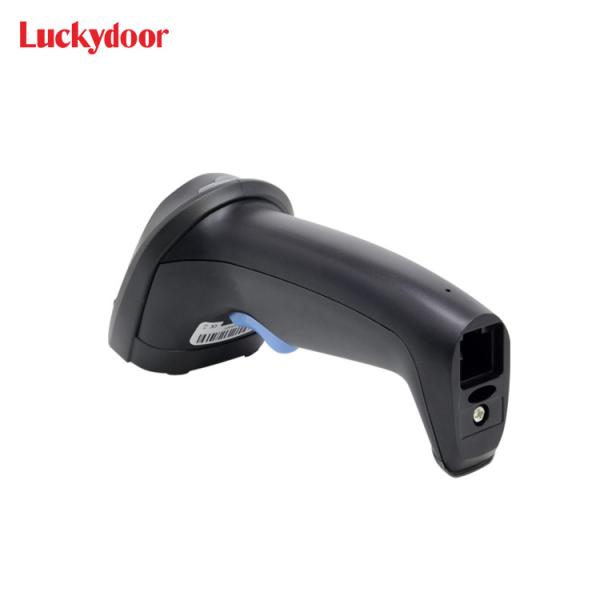

Product Pictures

Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode ScannerCost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode ScannerCost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode ScannerCost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode ScannerCost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode ScannerCost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode ScannerCost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode ScannerCost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner

Company Information

Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode ScannerCost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode ScannerCost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner

Certificates

Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode ScannerCost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode ScannerCost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner

FAQ

Cost-Effective Wired Omni-Directional Portable 1D bar Code Laser Reader Handheld Barcode Scanner

Q1. Are you manufacturing company or a trading company?
We are manufacturing company with our own factory and we could arrange a factory tour for you.

Q2. Can I get a sample from you?
Yes. You could contact us for a paid sample.

Q3. Do you have OEM/ODM services?
Yes. We are the factory directly, we have our own R&D team, we can make it as you requirement, Please contact us for details.

Q4. What's the MOQ for your products?
MOQ for most of our products is 1 Unit. If you purchase large qty,you will get a better price.

Q5. Can I get some technical supports from you?
Of cause! Our technical team always gets ready at any time.

Q6. What's the payment term?
By T/T, Western Union, Money Gram, PayPal, etc.

Q7. What's the shipping way?
Via air, sea or express like DHL, UPC, TNT, FedEx and so on.
