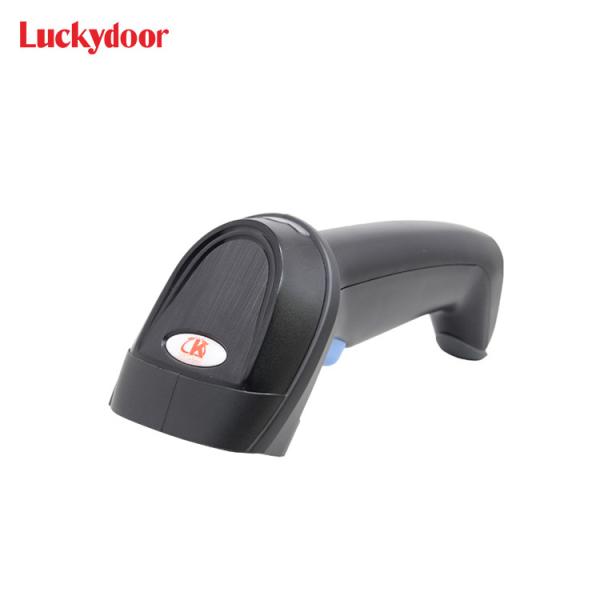

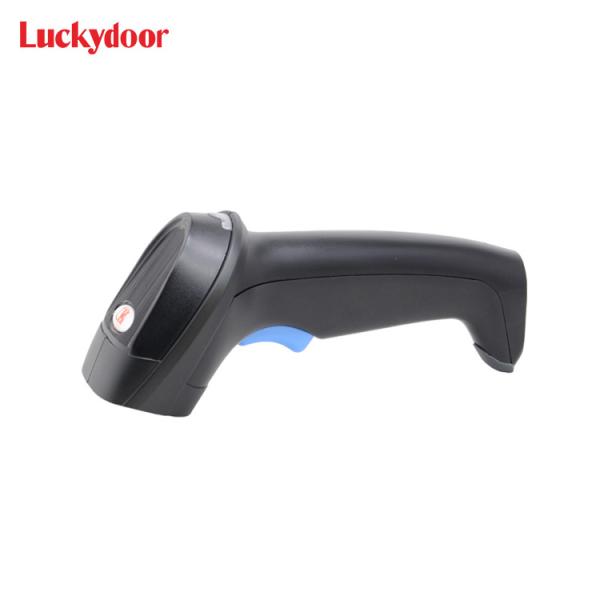

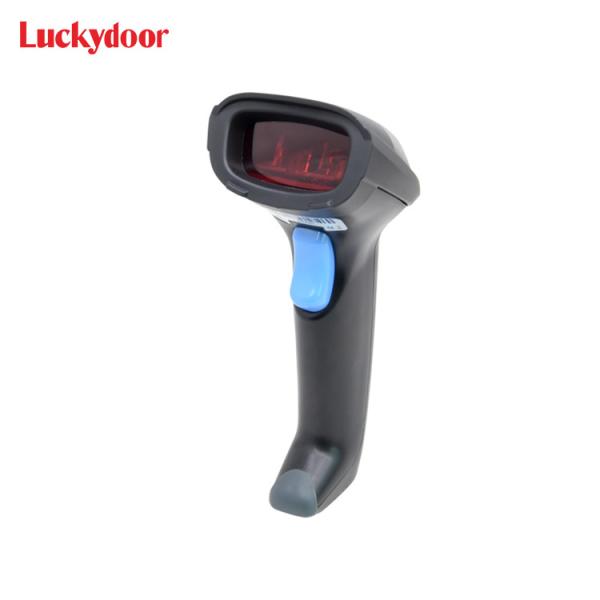

RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor
Specifications
private mold :
NO
products status :
Stock
type :
Barcode Scanner
scan element type :
laser
colour depth :
32 Bit
interface type :
usb, COM, PS/2, rs232
max paper size :
A4 Size
optical resolution :
4mil
scan speed :
300 Scans/sec
Brand Name :
Luckydoor
Place of Origin :
Guangdong, China (Mainland)
warranty(year) :
2-Year
after-sales service :
Free spare parts
software development kit (sdk) :
NO
color :
Black
Product name :
barcode scanner laser
Scan type :
Single laser line
Interface :
USB-HID, USB-COM, PS2, RS232
Working voltage & current :
5V,85mA
Shell material :
ABS+PC
Color :
Deep grey
Weight :
129.5g
Dimensions (W x D x H) :
90*66*173mm
Application :
Logistics,Supermarket,Store,Libary,Warehouse,Hospital,etc
Certificate :
CE, ROHS, FCC
Description

RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor

RS232/USB Barcode Scanner Laser Barcode Reader K-211 LuckydoorRS232/USB Barcode Scanner Laser Barcode Reader K-211 LuckydoorRS232/USB Barcode Scanner Laser Barcode Reader K-211 LuckydoorRS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor

Product Brief :

1.Single scanning beam, three directions

2.Light sources:650nm laser( safe visible laser diode)

3.Scan Speed: >300times/sec

4.Depth of scan field:0-280mm(0.33mm,PCS90%)

5.Bite Error Rate: less than1/5 million

6.Good stability,suitable for various commercial uses, and industrial

7.ARM 32bit CPU supports

Product Specification:

Working Parameters
Light Source 650nm laser( Safe visible laser diode)
Scan Distance 0~280mm @ UPC/EAN PCS=90%
Scan Angle Yaw 65°,Rotation 30°,Pitch 55°
Scan Speed >300 ms/s
LED Indication blue + red
Sound adjustable buzzer
Physical Parameters
Dimension 155mmx100mmx72mm
Weight 249g (data line not included)
Wire Length 2.0m
Power Supply Parameters
Input Voltage 5VDC±1%
Working Current 85mA( operating)
Environment Parameters
Operating Temperature -20°C~+50°C
Operating Humidity 5%~95% no condensation
Storage Temperature -40°C~+70°C
Ambient Brightness 0~4,000Lux(fluorescence),0~100,000Lux(sunlight)
Safety Standards
EMC CE EN55022 B, FCC Part 15 Class B, SGS, IP54 Waterproof Test,
Laser Safety IEC 60825-1 Class 1

Related Products

RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor

Click here to see more product

Or send your inquiry details in the below, Click "Send" Now !!!

Company Information

RS232/USB Barcode Scanner Laser Barcode Reader K-211 LuckydoorRS232/USB Barcode Scanner Laser Barcode Reader K-211 LuckydoorRS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor

Certificates

RS232/USB Barcode Scanner Laser Barcode Reader K-211 LuckydoorRS232/USB Barcode Scanner Laser Barcode Reader K-211 LuckydoorRS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor

FAQ

RS232/USB Barcode Scanner Laser Barcode Reader K-211 Luckydoor

Q1. Are you manufacturing company or a trading company?
We are manufacturing company with our own factory and we could arrange a factory tour for you.

Q2. Can I get a sample from you?
Yes. You could contact us for a paid sample.

Q3. Do you have OEM/ODM services?
Yes. We are the factory directly, we have our own R&D team, we can make it as you requirement, Please contact us for details.

Q4. What's the MOQ for your products?
MOQ for most of our products is 1 Unit. If you purchase large qty,you will get a better price.

Q5. Can I get some technical supports from you?
Of cause! Our technical team always gets ready at any time.

Q6. What's the payment term?
By T/T, Western Union, Money Gram, PayPal, etc.

Q7. What's the shipping way?
Via air, sea or express like DHL, UPC, TNT, FedEx and so on.
