HP-213 Inspection And Collection Station Chain Conveyor With Manual Width Adjustment
HP-213 Inspection And Collection Station Chain Conveyor With Manual Width Adjustment
Specifications
Payment Terms :
T/T
Fluorescent Detection Light :
Inspect UV glue and fluorescent tracer materials
Inspection + Collection :
wo functions in one compact station
MOQ :
1 unit
SMEMA Interface :
Seamless line integration
Manual Width Adjustment :
50-450mm range for diverse PCB sizes
Built-in LED Lighting :
Clear illumination for inspection
Brand Name :
Haipai
Place of Origin :
China
Model Number :
HP-213
Delivery Time :
30 working days
Certification :
CE,ISO9001
Packaging Details :
Wooden case with vacuum package inside
Smooth Conveyor :
Stainless steel chain with 0.5-3.5m/min speed control
Description

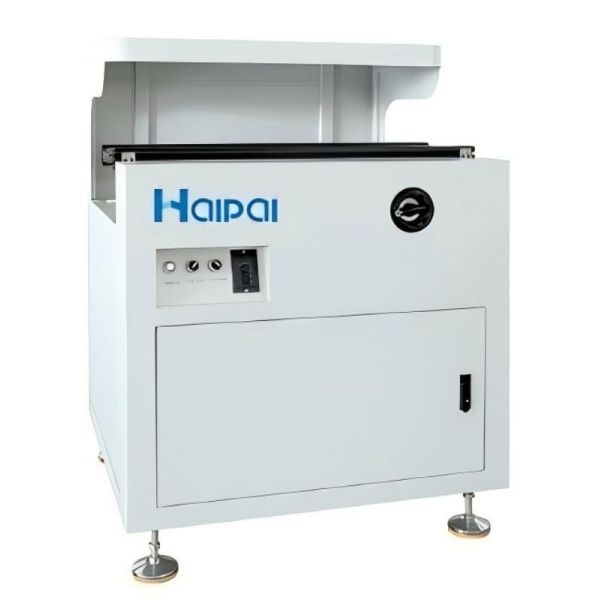

HP-213 Inspection and Collection Station
The HP-213 is a combined inspection and collection station designed for post-coating quality verification and PCB accumulation. Its integrated fluorescent detection light source enables operators to inspect UV-cured materials and fluorescent tracer-enhanced coatings immediately after application.
Key Features
  • Combined inspection and collection functionality for post-coating quality verification
  • Fluorescent detection light source for UV-cured materials inspection
  • Premium aluminum profile frame with sealed galvanized sheet construction
  • Electrostatic powder-coated finish resistant to chemicals and easy to clean
  • Built-in LED lighting for optimal inspection visibility
  • SMEMA interface for seamless equipment integration
  • Stainless steel chain conveyor with manual width adjustment (50-450mm)
  • Variable speed control (0.5-3.5m/min) for flexible operation
Technical Specifications
Parameter Specification
Model HP-213
Machine Dimensions L900*W900*H1280mm
Weight Approx. 115 kg
PCB Height 910±20mm
Conveyor Type Chain conveying (35B 5mm lengthened pin stainless steel chain)
Conveyor Speed 0.5-3.5m/min adjustable
Transmission Motor Stepper motor
Width Adjustment Manual, 50-450mm
Max PCB Size L450*W450mm
Component Height ±110mm max
Lighting Built-in LED
Inspection Light Fluorescent detection light source
Frame High-grade aluminum profile + sealed galvanized sheet
Finish Electrostatic powder coating
Power Supply AC220V 50Hz
Total Power 0.2KW
Interface SMEMA
Applications
The HP-213 station can function as a collection point at line end or as an intermediate inspection stage, compatible with most assembled boards and designed for seamless integration with upstream equipment (coaters, curing furnaces) and downstream processes.
