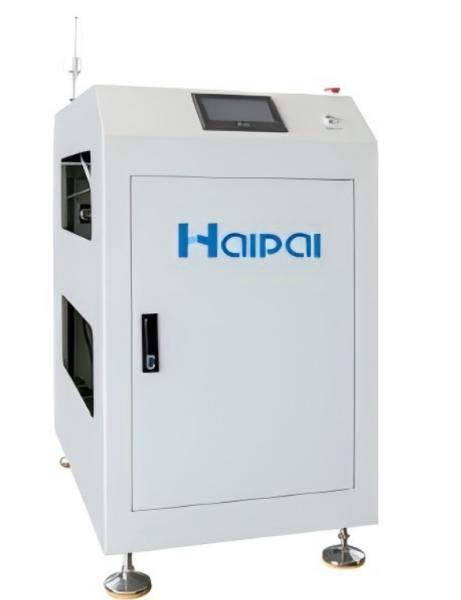

HP-450F Automatic Board Flipping Machine
The HP-450F Automatic Board Flipping Machine is engineered for production lines requiring dual-side processing of PCBs. This advanced unit efficiently rotates printed circuit boards 180° for subsequent operations, whether for applying conformal coating to both sides or inspecting top and bottom surfaces.
Key Features
  • Motor-driven flipping mechanism completes full rotation cycle in under 15 seconds
  • Straight-through mode for conveying boards without rotation when flipping isn't required
  • Stainless steel chain conveyor with electric width adjustment (50-450mm)
  • PLC touch screen interface for intuitive control and monitoring
  • Adjustable conveyor speed from 0.5-3.5m/min to match production line requirements
  • Premium aluminum profile frame with sealed galvanized sheet construction
  • Electrostatic powder coating for enhanced durability and chemical resistance
  • SMEMA interface for seamless integration with coating, curing, and inspection equipment
Technical Specifications
Parameter Specification
Model HP-450F
Machine Dimensions L640×W1020×H1200mm
Weight Approx. 190 kg
Control Method PLC + Touch Screen
PCB Height 910±20mm
Conveyor Type Chain conveying (35B 5mm lengthened pin with ball stainless steel chain)
Conveyor Speed 0.5-3.5m/min adjustable
Width Adjustment Electric, 50-450mm
Flipping Method Motor-driven
Flipping Cycle Time <15 seconds
Operation Modes Flip mode / Straight-through mode
PCB Thickness 3-8mm (with fixture)
Max PCB Size L450×W450mm
Component Height ±110mm max
Frame High-grade aluminum profile + sealed galvanized sheet
Finish Electrostatic powder coating
Power Supply AC220V 50-60Hz 1.0A
Air Supply 4-6 kgf/cm²
Total Power 0.5KW
Interface SMEMA
Note: For board-only applications without fixtures, please consult our technical team for specific thickness requirements.
