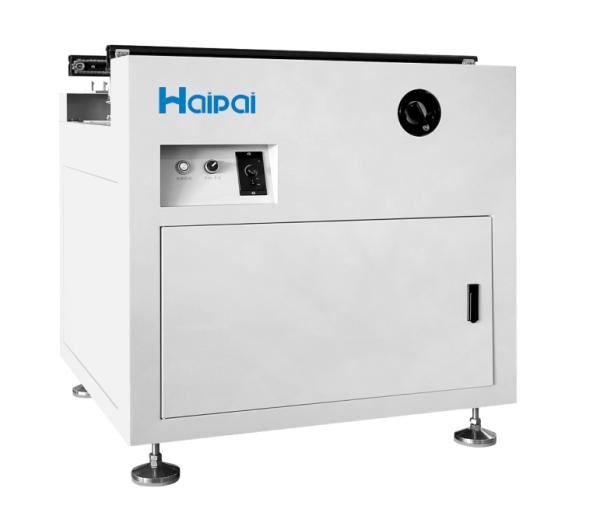

HP-211 Automatic Feeding Conveyor With Upstream Downstream Equipment
HP-211 Automatic Feeding Conveyor With Upstream Downstream Equipment
Specifications
Adjustable Speed & Width :
Conveyor speed adjustable from 0.5-3.5m/min; width fits PCBs from 50-450mm.
Reliable PCB Transport :
Stepper motor drive with chain conveying for consistent, durable performance.
MOQ :
1 unit
Place of Origin :
China
Payment Terms :
T/T
Packaging Details :
Wooden case with vacuum package inside
Standardized Integration :
SMEMA interface for seamless connection with other SMT assembly equipment.
Certification :
CE,ISO9001
Model Number :
HP-211
Delivery Time :
30 working days
Brand Name :
Haipai
Simple Operation :
User-friendly button control with single-chip computer management.
Description
HP-211 SMT PCB Conveyor
Compact SMEMA Interface Conveyor with Adjustable Speed 0.5-3.5m/min
Product Overview
The HP-211 Automatic Feeding Conveyor is a fundamental building block for modern SMT assembly lines, providing reliable, adjustable PCB transport between processing equipment. Engineered for consistent performance with robust construction and precision conveying systems.
Key Specifications
Specification Details
Overall Dimensions L900mm * W900mm * H970mm
PCB Transmission Height 910±20mm
Transport Speed 0.5-3.5m/min adjustable
Transmission Motor Stepper motor
Delivery Method Chain conveying (35B 5mm lengthened pin stainless steel chain)
Conveyor Width 50-450mm Adjustable
Maximum PCB Size L450mm * W450mm
PCB Component Height Up and down: ±110mm
Control Method Single-chip computer + Button control
Equipment Weight Approximately 90KG
Power Supply AC220V 50HZ
Total Power Consumption 0.2KW

Operation Modes
  • Online Mode: PCBs pass through the conveyor to the next piece of equipment in the line
  • Straight Mode: Simplified pass-through operation for basic transport requirements
Industrial Applications
  • Conformal coating lines as feeder between loaders and coaters
  • Dispensing lines for board transfer between stations
  • Curing furnace input/output for automated loading/unloading
  • AOI inspection lines for board transport to inspection systems
  • General SMT assembly lines requiring reliable PCB transfer
  • PCB buffering between processes with different speeds
  • Manual assembly stations for semi-automated board handling
  • Testing and rework areas for controlled board movement
Integration & Compatibility
Features standard SMEMA communication interface for automatic handshaking with upstream and downstream equipment. When connected to coaters, dispensers, curing furnaces, or AOI systems, the conveyor automatically coordinates PCB transfer, ensuring smooth, synchronized line operation.
