Fully Automated PCBA Conformal Coating Line With Multi Zone Infrared Curing
Fully Automated PCBA Conformal Coating Line With Multi Zone Infrared Curing
Fully Automated PCBA Conformal Coating Line With Multi Zone Infrared Curing
Fully Automated PCBA Conformal Coating Line With Multi Zone Infrared Curing
Specifications
Brand Name :
Haipai
Model Number :
HP-211 + HP-730 + HP-212 + HP-IR3C + HP-213
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1set
Payment Terms :
T/T
Delivery Time :
30 working days
Packaging Details :
Wooden case with vacuum package inside
Fully Automated Workflow :
Hands-off production from feeding to inspection—optimized for throughput and process control.
Multi-Zone Infrared Curing :
HP-IR3C furnace delivers rapid, uniform curing with precise temperature control.
Built-In Leveling & Buffering :
Sealing inspection conveyor provides critical leveling time and smooth flow between stations.
Ergonomic Quality Control :
Inspection station designed for easy sampling and efficient final checks.
Continuous, HighThroughput Production :
Engineered for production managers seeking reliability, consistency, and speed.
SMEMA-Compliant Integration :
Every stage synchronized for zero transfer errors and minimal bottlenecks.
Description

Fully Automated PCBA Conformal Coating Line With Multi Zone Infrared Curing

Automatic IR Curing Standard Line PCBA Fluid Processing Solution
Engineered for production managers and process engineers, the 730+IR3C line delivers a fully automated workflow that optimizes throughput and process control. The line begins with an HP-211 Automatic Feeding Conveyor, which buffers PCBs to ensure consistent flow into the HP-730 Selective Coating Machine. Here, servo-driven dispensers apply conformal coating with ±0.02mm precision, eliminating manual masking. Freshly coated boards transfer to a specialized Sealing Inspection Conveyor for critical leveling time and buffering before entering the HP-IR3C Infrared Curing Furnace. The HP-IR3C uses multi-zone infrared heating for rapid, uniform curing, locking in protection without slowing production. Finally, boards exit to an ergonomic Inspection and Collection Station for quality control. With SMEMA integration at every stage, this line eliminates transfer errors, reduces bottlenecks, and creates a continuous, hands-off production environment.
Automated Production Process

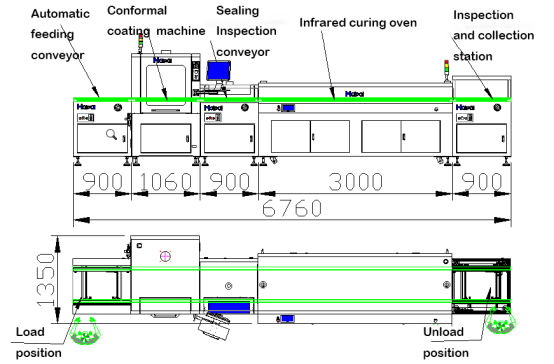

  1. Manually place PCBA boards to be coated (component side up) into the automatic feeding conveyor
  2. Boards transfer from automatic feeding conveyor into conformal coating machine for spraying process
  3. After coating, PCBA boards enter sealing inspection conveyor for buffering and leveling before proceeding to infrared curing oven for final curing
  4. Following curing, boards move to inspection and collection station for manual sampling inspection and removal
Key System Components
  • HP-211 Automatic Feeding Conveyor with PCB buffering
  • HP-730 Selective Coating Machine with ±0.02mm precision dispensing
  • Sealing Inspection Conveyor for leveling and buffering
  • HP-IR3C Infrared Curing Furnace with multi-zone heating
  • Ergonomic Inspection and Collection Station
  • Full SMEMA integration throughout the line
