Specifications
Brand Name :
Haipai
Model Number :
HP-211 + HP-730 + HP-212 + HP-UV106FM + HP-213
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1set
Payment Terms :
T/T
Delivery Time :
30 working days
Packaging Details :
Wooden case with vacuum package inside
Labor Cost Reduction :
Continuous automation replaces manual processes—minimal operator intervention needed.
Faster Curing :
UV106FM cures coatings in seconds vs. minutes/hours with thermal methods.
Compact Space-Saving Design :
Eliminates batch ovens and curing racks—handles PCBs up to 450×450mm in a small footprint.
Lower Energy Consumption :
UV curing consumes significantly less energy than thermal alternatives
Higher First-Pass Yield :
HP-730 precision dispensing reduces rework and material waste.
Scalable Modular Design :
Easily expandable as production grows—protects your capital investment.
Description

Modular UV Curing Automated Conformal Coating Line With 450x450mm PCB Handling

UV Curing Standard Automatic Conformal Coating Line with SMEMA
Single-Machine Single-Oven Configuration
The 730+UV106FM Automated Conformal Coating Production Line delivers rapid ROI through reduced labor costs, dramatically faster curing times, lower energy consumption, and maximized production capacity. This integrated system replaces manual processes with continuous automated workflow requiring minimal operator intervention.
Key Performance Advantages
Ultra-Fast UV Curing Technology
While thermal curing takes minutes or hours, the HP-UV106FM cures UV materials in seconds, increasing throughput by 300-500% compared to thermal lines. This rapid curing eliminates the need for large batch ovens and curing racks, optimizing valuable factory floor space.
Production Specifications
Maximum PCB Size 450 * 450mm
Component Clearance ±110mm
Configuration Compact modular design
Quality and Consistency Features
  • HP-730 precision dispensing improves first-pass yield and reduces rework
  • UV oven with electronic power adjustment and PLC-controlled monitoring
  • Uniform curing conditions for consistent results
  • Energy-efficient operation reduces operating costs

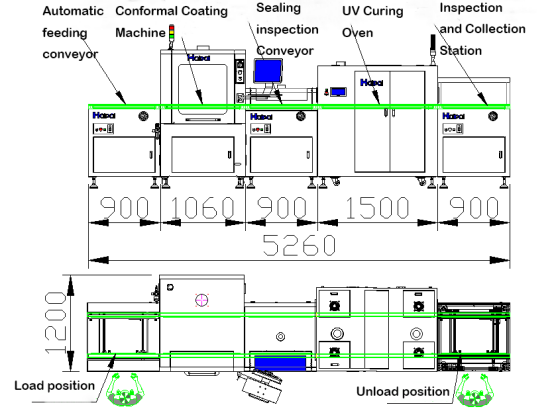

Operational Workflow
  1. Manually place PCBA boards (component side up) into automatic feeding conveyor
  2. Boards transfer from feeding conveyor into conformal coating machine for spraying process
  3. Coated boards enter sealing inspection conveyor for buffering and leveling
  4. Boards proceed into UV curing oven for final curing
  5. Cured boards move to inspection and collection station for manual sampling and removal
Investment Return Profile
For manufacturers using UV-curable conformal coatings, cumulative savings in labor, energy, floor space, and increased output typically result in full ROI within 12 to 18 months. The modular design enables future scalability, protecting capital investment as production demands grow.
