Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Specifications
Brand Name :
Haida
Place of Origin :
Guangdong, China
Model Number :
HD-F754
MOQ :
1
Price :
$1,800-2,100
Ball diameter :
16 ± 0.05 mm
Ball mass :
16.8g ± 1.5 g
Drop height :
500±0.5%mm
Rebound rate accuracy :
<0.5%
Sample size :
100 mm × 100 mm × 50 mm
Machine dimensions :
575 × 305 × 630 mm
Power consumption :
0.1 KW
Display type :
LCD Touch Screen
Sensor type :
Optical fiber sensor
Test results :
Rebound height, rebound rate, average rebound rate
Test standard :
ASTM D3574, ISO 8307
Ball drop distance :
460 ± 0.5%mm (GB), 500 ± 0.5%mm (American Standard)
Output method :
Built-in printer
Control type :
Microprocessor
Measurement accuracy :
<1.5%
Description
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Product Overview

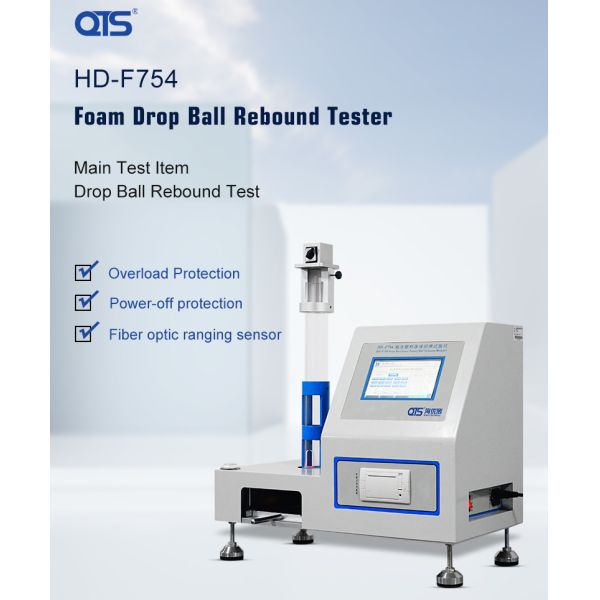

The Foam Drop Ball Rebound Tester complies with ASTM D3574 and ISO 8307 test standards, as well as Japanese urethane foam SESN 3296 specifications for automotive seat cushion testing. This precision instrument is specifically designed for measuring the falling ball rebound performance of flexible polyurethane foam materials.
Testing Principle

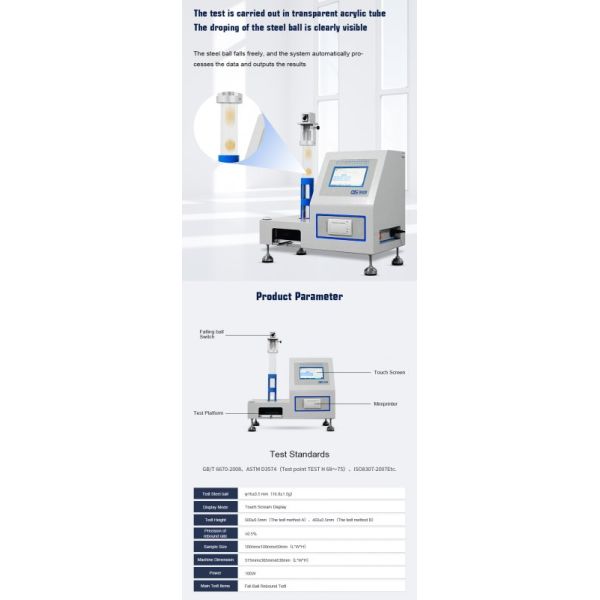

The instrument utilizes a steel ball with specified diameter and mass that freely falls onto the foam sample from a predetermined height. It calculates the maximum rebound height of the steel ball and determines the percentage ratio between rebound height and drop height, known as the rebound rate. This rebound rate accurately represents the foam's rebound performance characteristics.
Key Features

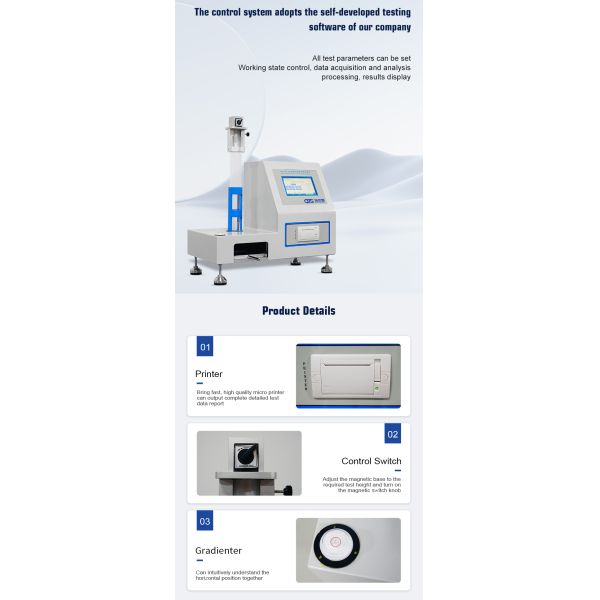

  • Microprocessor-controlled operation for precise measurements
  • LCD touch screen interface with Chinese language display
  • Built-in printer for immediate test data output
  • Advanced optical fiber sensor technology
  • Safe, reliable operation with high measurement accuracy
Technical Specifications
Parameter Specification
Drop Height 500±0.5% mm
Drop Ball Diameter: ￠16±0.05 mm, Mass: 16.8g ± 1.5 g
Accuracy <1.5%
Display LCD Touch Screen Interface
Sensor Optical Fiber Sensor
Test Results Rebound height, rebound rate, and average rebound rate after 5 test cycles
Sample Size (L×W×H) 100 mm × 100 mm × 50 mm
Machine Dimensions (L×W×H) 575 × 305 × 630 mm
Test Results Output Built-in Printer
Power Consumption 0.1 KW
Standard Configuration
Items Details
Documents Operation Manual ×1 piece
Factory Inspection Report ×1 piece
Operation Video in USB flash disk with machine ×1 piece
Power Line 1 piece
Plug 1 piece (Per your local plug standard)
Optical Fiber Ranging Sensor 1 Set
Micro-Printer 1 Set
Touch Screen 1 piece
PLC 1 piece
Electrical Accessories 1 Set
Specimen Holder 1 Set
Packing Box 1 Set (Includes two steel balls and one sampling rod)
Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester
Furniture Testing Solutions
Our comprehensive testing equipment portfolio supports quality assurance and compliance testing for furniture manufacturers and material suppliers worldwide.
