Specifications
Brand Name :
haida
Place of Origin :
China
Model Number :
HD-F778
MOQ :
1
Price :
$1,388
Cylinder stroke :
250mm
Loading Weight :
Forward stability: 60kg/61kg; Rear stability: 130kg
Horizontal pull force :
20N
Plate thickness :
13 mm
Loading point position :
60mm from front edge
Seat loading pad :
Diameter 200mm, arc surface 300mm
Test space :
780mm x 740mm (L x W)
Machine weight :
400kg (including weight)
Power supply :
1∮ AC 220V
Engine power :
20W
Instrument dimensions :
1350mm x 1000mm x 1850mm (L x W x H)
Packaging dimensions :
1470mm x 1100mm x 1250mm
Gross weight :
560kg
Power supply source :
single-phase, 220V±10%, 50/60Hz
Main test items :
Office chair forward/backward stability test
Description

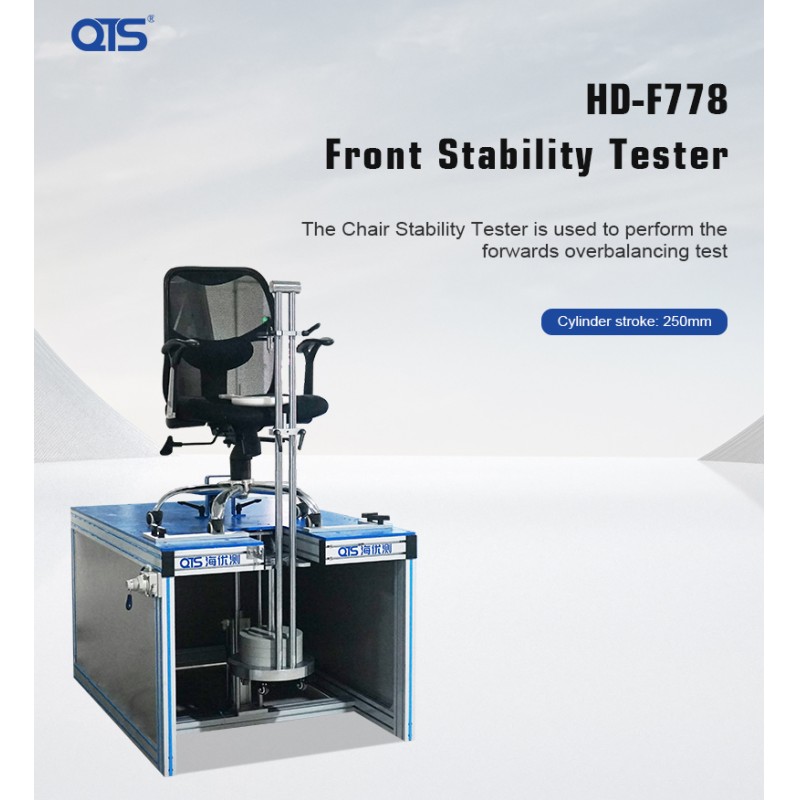

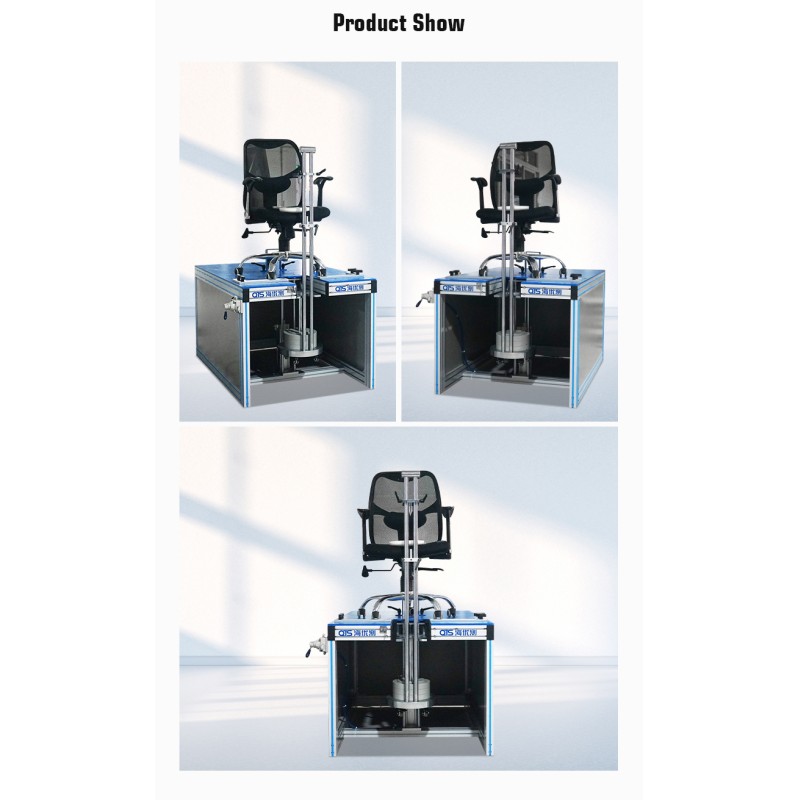

BIFMA 5.1 Furniture Tester Equipment - Chair Stability Tester
BIFMA 5.1Furniture Tester Equipment Chair Stability Tester BIFMA 5.1Furniture Tester Equipment Chair Stability Tester

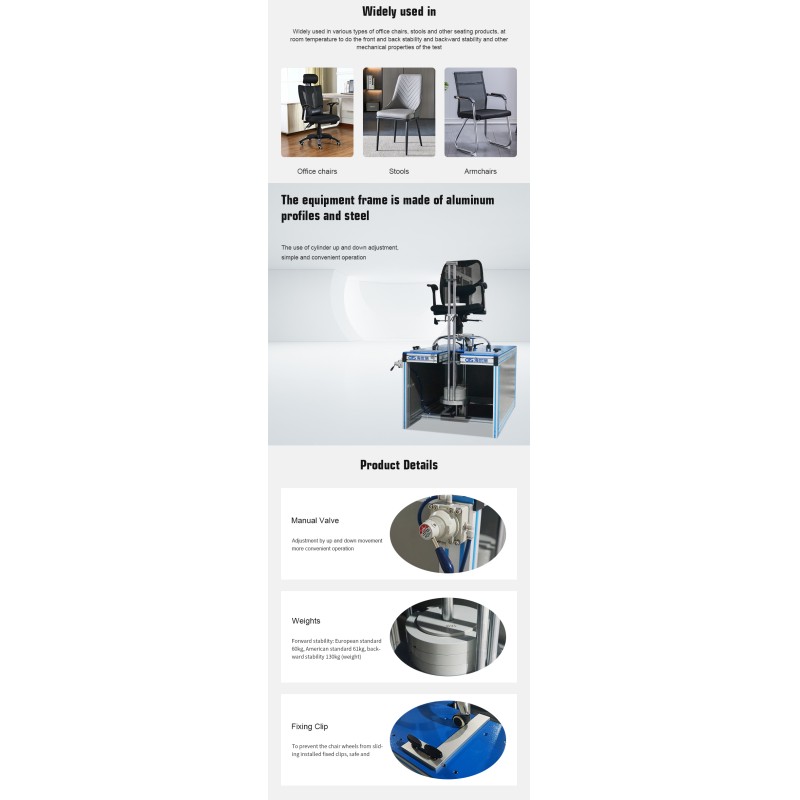

The chair stability tester is designed for comprehensive testing of various office chairs, stools, and seating products. This equipment evaluates mechanical properties including forward stability and backward stability at room temperature. Widely utilized in the office furniture industry, it enables manufacturers to assess product stability and enhance overall quality standards.

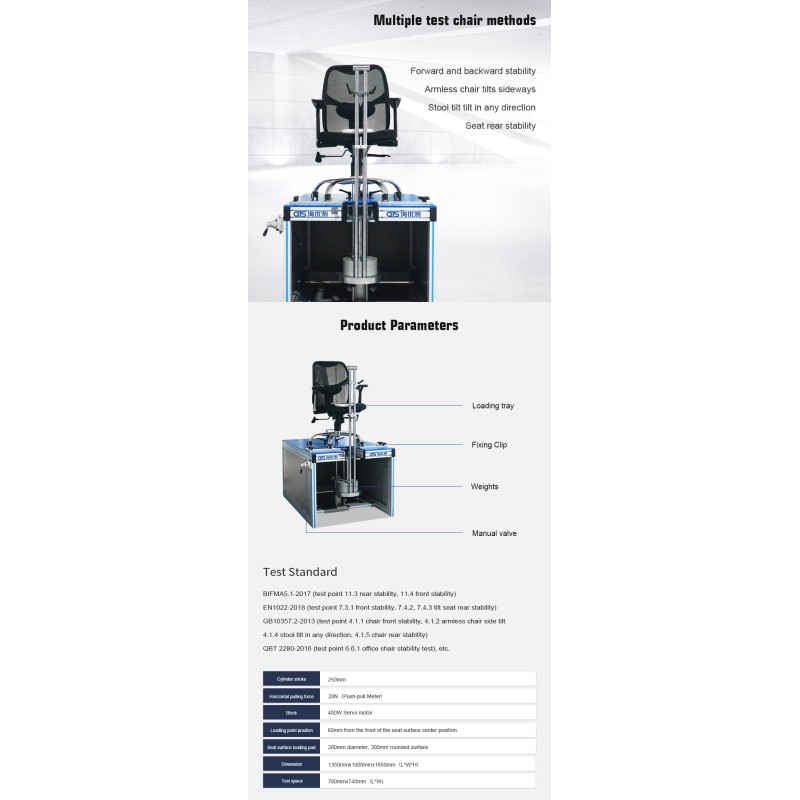

Technical Specifications
Cylinder Stroke 250mm
Loading Weight Forward stability: European standard 60kg, American standard 61kg;
Rear stability weight: 130kg
Horizontal Pull Force 20N
Plate for Fixing Sample Thickness of 13mm
Loading Point Position The center of the seat surface is 60mm away from the front edge
Seat Loading Pad Diameter 200mm, arc surface 300mm
Sample Test Space 780mm x 740mm (L * W)
Machine Weight Approximately 400kg (including weight)
Power Supply 1∮ AC 220V
Engine Power Approximately 20W
Instrument Dimensions 1350mm x 1000mm x 1850mm (L * W * H)
Main Test Items Office chair forward and backward stability test
Testing Applications
Forward Stability Test
Position the sample on the platform using 13mm mobile blocks to prevent wheel movement. The cylinder-driven lifting mechanism applies 610N force at the seat surface center position, 60mm from the leading edge. Simultaneously, a 20N horizontal tension is applied to the chair back to evaluate forward stability performance and measure deformation under defined test loads.
Backward Stability Test
Secure the sample on the platform with 13mm blocks to prevent sliding. For chairs with insufficient back height, additional blocks are used to accommodate the loading plate. Apply 1300N force on the seat surface while applying horizontal thrust 6mm from the top to assess backward stability performance.
BIFMA 5.1Furniture Tester Equipment Chair Stability Tester BIFMA 5.1Furniture Tester Equipment Chair Stability Tester BIFMA 5.1Furniture Tester Equipment Chair Stability Tester BIFMA 5.1Furniture Tester Equipment Chair Stability Tester BIFMA 5.1Furniture Tester Equipment Chair Stability Tester BIFMA 5.1Furniture Tester Equipment Chair Stability Tester
Why Choose Our Furniture Testing Equipment?
  • Considerate Service: Accommodates different country plugs with manual voltage change from 110V to 220V, includes insurance indicator
  • Excellent After-Sales Service: 12-month warranty with free controller repair assistance and replacement parts
  • Comprehensive Support: Operation videos and English operation manuals provided
  • Technical Assistance: Video conference support available for complex issues
Please feel FREE to contact us with any requirements. Visit our OFFICIAL WEBSITE at:
www.haidatestequipment.com
For additional information, please leave a message below and click "CONTACT SUPPLIER".
Thank you for your time and attention!
