Chair Chassis Back Endurance test Machine Durability Tester
Chair Chassis Back Endurance test Machine Durability Tester
Chair Chassis Back Endurance test Machine Durability Tester
Chair Chassis Back Endurance test Machine Durability Tester
Chair Chassis Back Endurance test Machine Durability Tester
Chair Chassis Back Endurance test Machine Durability Tester
Chair Chassis Back Endurance test Machine Durability Tester
Chair Chassis Back Endurance test Machine Durability Tester
Chair Chassis Back Endurance test Machine Durability Tester
Chair Chassis Back Endurance test Machine Durability Tester
Specifications
Brand Name :
Haida
Place of Origin :
Guangdong, China
MOQ :
1
Power :
220 V AC, 200 W
Voltage :
220 V
Test cycles :
0~999,999 times
Test speed :
0~40 /min
Seat load capacity :
300kg
Back load capacity :
200kg
Compressed air :
6 kg/cm2
Pressure holding time :
0~99S
Control mode :
PLC programmable controller
Power supply :
220 V AC, single phase
Height adjustment :
500-1200 mm
Seating load range :
5~200kg
Back load range :
5~100kg
Power driver :
adjustable
Cycle time :
0~99S
Description

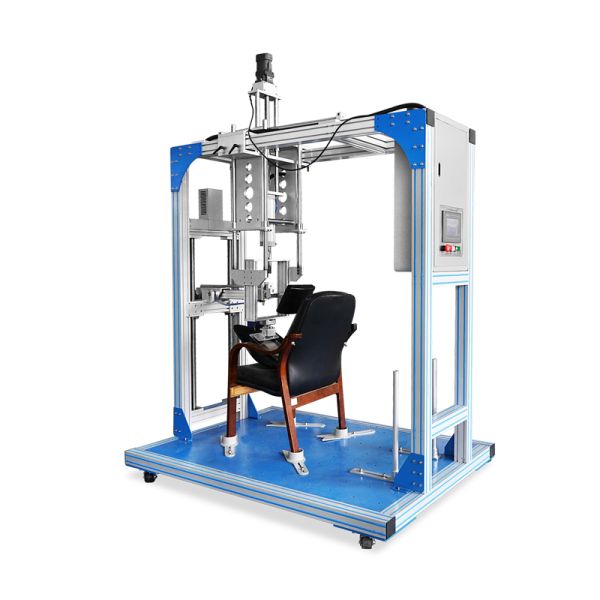

Chair Chassis Back Endurance Test Machine
This durability testing machine evaluates the strength and endurance of chair chassis and backrest components. The system applies controlled loads to both seat and backrest modules at specified frequencies to assess long-term performance and structural integrity.
Technical Specifications
Parameter Specification
Test Cycles 0-999,999 (adjustable)
Test Speed 0-30 cycles/min
Seating Load Capacity 5-200kg
Back Load Capacity 5-100kg
Compressed Air Requirement 6 kg/cm²
Holding and Cycle Time 0-99 seconds
Power Drive Height Adjustment 500-1200mm
Control System PLC Programmable Controller
Power Supply 220V AC, Single Phase, 200W
Equipment Features
  • Adjustable power drive height accommodates various chair sizes
  • Precise programmable test cycles up to 999,999 repetitions
  • Variable test speed from 0 to 40 cycles per minute
  • Adjustable power driver for customized testing protocols
  • Configurable pressure holding and cycle timing
  • Advanced PLC control system for reliable operation
Product Images
Chair Chassis Back Endurance test Machine Durability Tester Chair Chassis Back Endurance test Machine Durability Tester
Company Profile
HAIDA INTERNATIONAL is a leading manufacturer of testing equipment with over 15 years of industry experience. Our products serve diverse sectors including paper products, packaging, printing, footwear, leather goods, electronics, plastics, rubber, and quality control laboratories.
Chair Chassis Back Endurance test Machine Durability Tester
Packaging & Shipping
All equipment is carefully protected with air bubble film and securely packaged in wooden cases to ensure safe delivery.
Chair Chassis Back Endurance test Machine Durability Tester
Service & Support
Technical Support
  • 48-hour response guarantee for technical issues
  • Solutions provided within 3 working days
  • Operation videos and English manuals available
  • Video conference support
Onsite Services
  • Professional equipment installation
  • Comprehensive operation testing and training
  • Precision equipment calibration
  • Routine maintenance guidance
Additional Benefits
  • Free technical training for factory visits
  • 24-hour online support availability
  • Complimentary software upgrades
  • Complete documentation package
Chair Chassis Back Endurance test Machine Durability Tester
Why Choose HAIDA?
Comprehensive Service Features
  • International voltage compatibility (110V-220V)
  • 12-month comprehensive warranty
  • Free controller repair services
  • Free replacement parts support
  • Complete operational documentation
