0.5”（1/2）PC Steel Wire Strand Grade 270/1860MPA 2.5-3.2 Tons / Coil Packing
0.5”（1/2）PC Steel Wire Strand Grade 270/1860MPA 2.5-3.2 Tons / Coil Packing
0.5”（1/2）PC Steel Wire Strand Grade 270/1860MPA 2.5-3.2 Tons / Coil Packing
0.5”（1/2）PC Steel Wire Strand Grade 270/1860MPA 2.5-3.2 Tons / Coil Packing
0.5”（1/2）PC Steel Wire Strand Grade 270/1860MPA 2.5-3.2 Tons / Coil Packing
0.5”（1/2）PC Steel Wire Strand Grade 270/1860MPA 2.5-3.2 Tons / Coil Packing
Specifications
Brand Name :
Litong Global
Model Number :
LT-190604
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
1 full 20" container
Price :
discuss
Supply Ability :
800tons/day
Packaging Details :
standard export packing in coil on 2 pallets
Material :
82B
Grade :
1860MPA
Specification :
0.5"(1/2")
Packing :
2.5-3.2tons/coil
Loading capacity :
25tons/20"container
Description

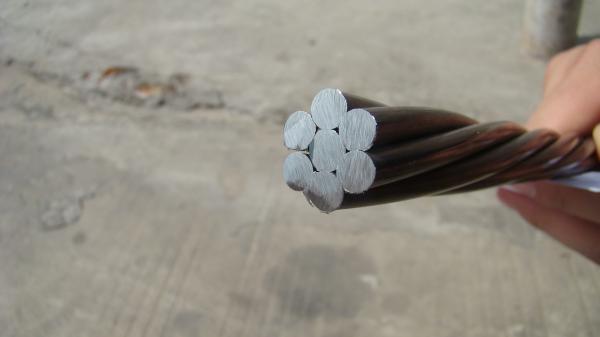

0.5”(1/2")PC Steel Wire Strand Grade 270/1860MPA

PC STRAND DESCRIPTION:

Product Name: Prestressing Concrete Strand

Szie:12.5mm,12.7mm ,15.2mm and 15.7mm

TypeL 1x7 wires

GB/T 5224-2014

ASTM A 416/A416M

MOQ: 25tons

Free sample available to test quality.

Terms of payment:

30% T/T in advance, 70% against the B/L copy.

Lead- time: within 15 days after receipt of Deposit.

Package: 2.5~3.2tons/ coil.

Physical Properties of PC Steel Wire Strand

7-Wire Uncoated Steel Strand for Prestressed Concrete as per ASTM A 416

Min.Breaking Strength

Nominal

Dia.

Dia.

Tolerance

Norminal

Steel

Area

 Nominal Weight

Min.

Breaking Load

Min.Load

at 1%Extension

Min.Elongation

Lo≥610mm

0.7 G.U.T.S

1000hNorminal Relaxation
MPA mm mm Mm2 Kg/Km KN KN % %
1860 9.53

+0.66,-0.15

 54.84 432 102.3 92.1

≥3.5

≤2.5
11.11 74.19 582 137.9 124.1
12.70 98.7 775 183.7 165.3
15.24 140.0 1102 260.7 234.6
17.80 190.0 1492 353.0 318.0
2000 12.70 +0.66,-0.15 98.7 775 197.4 177.7 ≥3.5 ≤2.5
15.24 140.0 1102 280.0 252.0

7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224

Min.Breaking Strength

Nominal

Dia.

Dia.

Tolerance

Norminal

Steel

Area

 Nominal Weight

Min.

Breaking Load

Min.Load

at 1%Extension

Min.Elongation

Lo≥610mm

0.7 G.U.T.S

1000hNorminal Relaxation
MPA mm mm Mm2 Kg/Km KN KN % %
1860 9.50 +0.30,-0.15 54.8 432 102 86.6

≥3.5

≤2.5
11.10 74.2 580 138 117
12.70

+0.40,-0.20

 98.7 775 184 156
15.20 140 1101 259 220
15.70 150 1178 279 251
17.80 191 1500 353 318
1960 12.70 +0.40,-0.20 98.7 775 193 174 ≥3.5 ≤2.5
15.20 140 1101 274 247

7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224

Min.Breaking Strength

Nominal

Dia.

Dia.

Tolerance

Norminal

Steel

Area

 Nominal Weight

Min.

Breaking Load

Min.Load

at 1%Extension

Min.Elongation

Lo≥610mm

0.7 G.U.T.S

1000hNorminal Relaxation
MPA mm mm Mm2 Kg/Km KN KN % %
1860 9.50 +0.30,-0.15 54.8 432 102 86.6

≥3.5

≤2.5
11.10 74.2 580 138 117
12.70

+0.40,-0.20

 98.7 775 184 156
15.20 140 1101 259 220
15.70 150 1178 279 251
17.80 191 1500 353 318
1960 12.70 +0.40,-0.20 98.7 775 193 174 ≥3.5 ≤2.5
15.20 140 1101 274 247

7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224

Min.Breaking Strength

Nominal

Dia.

Dia.

Tolerance

Norminal

Steel

Area

 Nominal Weight

Min.

Breaking Load

Min.Load

at 1%Extension

Min.Elongation

Lo≥610mm

0.7 G.U.T.S

1000hNorminal Relaxation
MPA mm mm Mm2 Kg/Km KN KN % %
1860 9.50 +0.30,-0.15 54.8 432 102 86.6

≥3.5

≤2.5
11.10 74.2 580 138 117
12.70

+0.40,-0.20

 98.7 775 184 156
15.20 140 1101 259 220
15.70 150 1178 279 251
17.80 191 1500 353 318
1960 12.70 +0.40,-0.20 98.7 775 193 174 ≥3.5 ≤2.5
15.20 140 1101 274 247

Raw Material Of PC Steel Wire Strand

Our raw material is high quality carbon steel hot rolled wire rod according to the standard GB/T4354-2008 .

The chemical composition of the steel conforms to the GB/T699-1999 standard.


0.5”（1/2

Production Workshop

There are 10 sets of drawing production line ,0 complete set of stranding lines.The produce process of PC Steel Wire Strand is following as below:
Drawing process:Surface treatment- Drying - Drawing - -Stranding-Tension Control--Heat treatment -Post Tension-Packing

0.5”（1/2

Testing Center

With comprehensive testing equipment and advanced testing techniques to every processing, we control processing quality timely to ensure all parameters with strict standard to finish qualified products.

0.5”（1/2

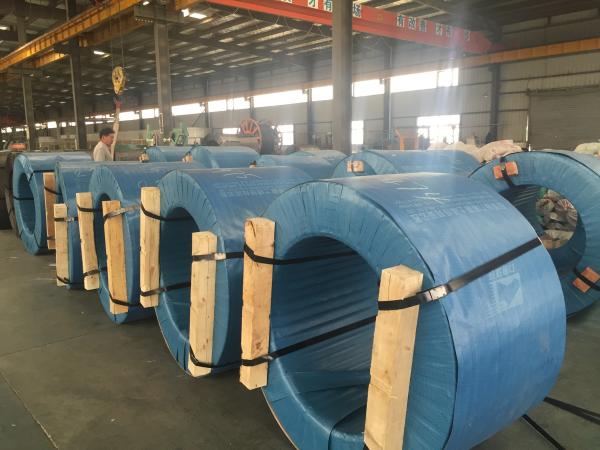

Packing and Loading

0.5”（1/2

Application of PC Steel Wire Strand

0.5”（1/2
