Hot Rolled PC Steel High Carbon Wire Rod For Airport Hangers 0.5 12.7mm / 0.6 15.24mm
Hot Rolled PC Steel High Carbon Wire Rod For Airport Hangers 0.5 12.7mm / 0.6 15.24mm
Hot Rolled PC Steel High Carbon Wire Rod For Airport Hangers 0.5 12.7mm / 0.6 15.24mm
Hot Rolled PC Steel High Carbon Wire Rod For Airport Hangers 0.5 12.7mm / 0.6 15.24mm
Hot Rolled PC Steel High Carbon Wire Rod For Airport Hangers 0.5 12.7mm / 0.6 15.24mm
Hot Rolled PC Steel High Carbon Wire Rod For Airport Hangers 0.5 12.7mm / 0.6 15.24mm
Hot Rolled PC Steel High Carbon Wire Rod For Airport Hangers 0.5 12.7mm / 0.6 15.24mm
Hot Rolled PC Steel High Carbon Wire Rod For Airport Hangers 0.5 12.7mm / 0.6 15.24mm
Specifications
Place of Origin :
An,China
Brand Name :
Litong Global
Model Number :
LT-150524
Certification :
ISO9001
Price :
Negotiable
Packaging Details :
2.5-3.5tons/coil on 2 pallets
Delivery Time :
12 days after confirmed PC Steel Strand
Payment Terms :
TT/LC
Supply Ability :
800tons/Day
MOQ :
Negotiable
High Carbon Wire Rod :
82B
High Strength :
Low Relaxation
Production standard :
ASTMA416, BS5896, EN10138-3, AS/NZS4672, GB/T5224, KS7002, ISO6934-4, JISG3536.
Type :
Cold drawn wire
Tensile Strength :
1860-2100MPA
packing :
2.5-3.2tons/coil on 2 pallets
Loading Capacity: :
25tons/20"
Description

1.-PC Strand

2.-Construction:1X7

3.Size:9.3mm/9.53mm,12.5mm/12.7mm,15.2mm/15.24mm

4.-Standard:ASTM A 416/A416M-06,GB/T5224-2003,BS5896-1980,AS 1311-1987 or as per customer'requirements to produce

5.-Material:High carbon wire rod (82B)

6.-Production process:Surface treatment----Drawing wire-Stranding wire-Stabilization-Packing-Storing

7.-Application:(1) Used in the upper plates of bridges

(2)As cable for special bridges and for maintenance of bridges

(3)In construction,this product is used in contret pillarsand supports for the construction of building,domes for nuclear power plants and reinforcement of LNG conrete tanks

(4)It is also used as floor and roof reinforcement for sports stadiums

(5)It can be extensively sued in construction material for pc panels,high -pressure contrete water pipes,marine structures,towers and runways.

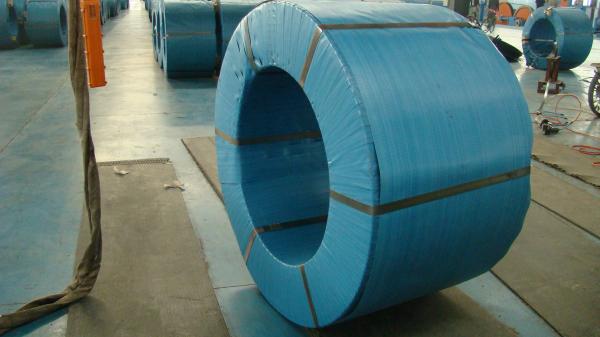

8.-Packing:The coil to be strapped by steel strip and packed in damp-proof seaworthy packing,woodern pallets according to customers requirements

(1)Inner diameter of the coil:760-780mm Approx.

(2)Outer Diamater of the coil:1400mm Maximum

(3)Coil width:760-780mm Approx

(4)Coil weight:2.5-3.5tons/coil

9.Attached some parameter for PC Strand for reference:

Standard

Norminal

Min.

BreakingStrength

(MPA)

Norminal Dia.

(mm)

Nominal

Steel Area

(mm2)

Nominal

Weight

(KG/KM)

Min.

Breaking Load

(KN)

Min.Load

at 1%Extension

(KN)

Min.

Elongation

%

(L0≥600mm)

%

0.7 G.U.T.S.

1000H

Normal Relaxation

Initial Load

(KN)
9.53 54.8 432 102.3 92.1 ≥3.5 ≤2.5 10.2

ASTM A

416/A

416M

 1860 11.11 74.2 582 137.9 124.1 ≥3.5 ≤2.5 13.8
12.7 98.7 775 183.7 165.3 ≥3.5 ≤2.5 18.4
15.24 140 1102 260.7 234.6 ≥3.5 ≤2.5 26.1

BS5896

1980

 12.9 100 785 186 163 ≥3.5 ≤2.5 16.3
1860

15.7

 150 1180 265 233 ≥3.5 ≤2.5

23.3
