Specifications
Brand Name :
LITONG GLOBAL
Model Number :
LT-170108(1)
Certification :
ISO9001-2008 &other 3rd party Inspection report
Place of Origin :
Anhui,China
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Standard export seaworthy packing in coil on 2 pallets
Material: :
High Strength 82B Wire Rod
Model NO.: :
12.5, 12.7, 15.2, 15.7, 21.8mm
Relaxation at 1000h Not More Than: :
2.5%
Tensile Strength: :
1860-1960MPA
Coil Size: :
ID 0.70-0.72m, Od 1.0-1.5m, Width 0.76m
Elongation at Max Load Not Less Than: :
3.5%
Alloy or Not: :
Non-Alloy
Structure: :
1*7 Steel Wires
Coil Weight: :
2.0~3.5 Tons
Transport Package: :
Export Packing, Standard Export Packing
Specification: :
GB, ASTM, DIN, BS
Loading Capacity :
25tons/20"
Description

HIGH STRENGTH 1860 MPA LOW RELAXATION PC STRAND

PT CABLE: POST-TENSIONED STEEL CABLE
PC STRAND: PRE-STRESSED CONCRETE STEEL STRAND
Structure: 7 wire
Diameter: 12.5mm, 12.7mm, 12.9mm, 15.2mm, 15.7mm, 17.8mm, 18.9mm, 21.6mm, 21.8mm
Feature: low relaxation, stress-relieved, high tensile strength.
Raw Material: high carbon steel wire rod
Steel Grade: SWRH77B, SWRH82B
Standards: ASTM A416, AS4672, ABNT NBR 7483:2008, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006, JISG3536

7-Wire Uncoated Steel Strand for Prestressed Concrete

ASTM A 416 Low Relaxation
Grade
MPa
[ksi]		 Nominal
Diameter of
Strand
mm [in.]

Min. Breaking
Strength

kN [lbf]

Steel Area
of Strand

mm2 [in.2]

Weight of
Strand

kg/km [lb/kft]

Min. load
@1% ext.

kN[lbf]

Min.
Elongation

%

1860
[270]

 9.53 [0.375] 102.3 [23 000] 54.8 [0.085] 432 [290] 92.1 [20 700]

3.5 (l≥600mm)
11.11 [0.438] 137.9 [31 000] 74.2 [0.115] 582 [390] 124.1 [27 900]
12.70 [0.500] 183.7 [41 300] 98.7 [0.153] 775 [520] 165.3 [37 170]
13.20 [0.520] 200.2 [45 000] 107.7 [0.167] 844 [568] 180.1 [40 500]
15.24 [0.600] 260.7 [58 600] 140.0 [0.217] 1102 [740] 234.6 [52 740]
Relaxation Properties
Initial Load of Specified Breaking Load 70% 80%
Max. Relaxation After 1000hrs @20±2℃ 2.5% 3.5%

7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224

Min.Breaking Strength

Nominal

Dia.

Dia.

Tolerance

Norminal

Steel

Area

 Nominal Weight

Min.

Breaking Load

Min.Load

at 1%Extension

Min.Elongation

Lo≥610mm

0.7 G.U.T.S

1000hNorminal Relaxation
MPA mm mm Mm2 Kg/Km KN KN % %
1860 9.50 +0.30,-0.15 54.8 432 102 86.6

≥3.5

≤2.5
11.10 74.2 580 138 117
12.70

+0.40,-0.20

 98.7 775 184 156
15.20 140 1101 259 220
15.70 150 1178 279 251
17.80 191 1500 353 318
1960 12.70 +0.40,-0.20 98.7 775 193 174 ≥3.5

≤2.5
15.20 140 1101 274

247

Tensile Strength: 1860Mpa, 1960Mpa
Relaxation on 1000 hours: 2.0% max
Elongation at breakage: 4.0% min
Export Packing: baling strip, inside plastic cover, outside PP packing cloth
Package Weight: 2000-3500kg/coil

Used in all segments of the vrious construction industries including but not limited to

  1. Residential
  2. Commercial and High-rise Buildings
  3. Packing Garages
  4. Pre-cast
  5. Bridges
  6. Highways
  7. Airport
  8. Liquid Natural Gas Tanks
  9. Ground Support
  10. Mining and Stay Cable Bridge

Our PC Strand projects.

High Speed Rail Projects

One of our core focus areas is high speed rail projects.Our technical capabilities,financial viability and superior execution skilles ensures cutting-edge project development and implementation.

High Strength PC Strand Wire , Seven Wire Strand PC Steel 12.7mm And 15.24mm

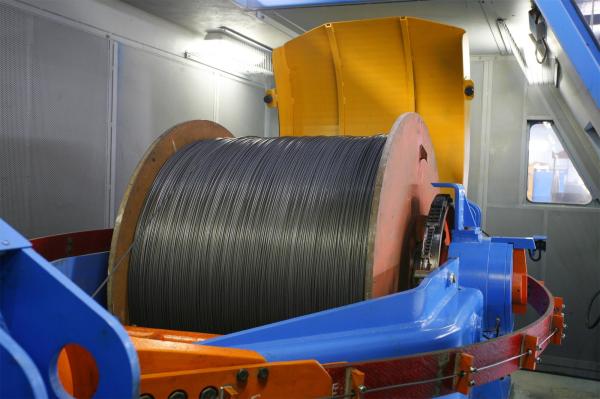

Production process:

High Strength PC Strand Wire , Seven Wire Strand PC Steel 12.7mm And 15.24mm

Trade Terms:
Min Order Qty: 1FCL / 25T
Delivery Time: 10-15 days
Price Terms: FOB CFR CIF
Payment Terms: TT / LC

FAQ

Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.

Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.

Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.


If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.

Contact us:

Attn: Nancy

E-mail:nancylsl@hotmail.com

What'app:86-13855514957

Cell:86-13855514957

Skype:nancylsl
