Sand Resistant Flexible Graphite Sheet 99.9% For Sealing Gaskets
Sand Resistant Flexible Graphite Sheet 99.9% For Sealing Gaskets
Sand Resistant Flexible Graphite Sheet 99.9% For Sealing Gaskets
Sand Resistant Flexible Graphite Sheet 99.9% For Sealing Gaskets
Sand Resistant Flexible Graphite Sheet 99.9% For Sealing Gaskets
Sand Resistant Flexible Graphite Sheet 99.9% For Sealing Gaskets
Specifications
Brand Name :
CLINGSEAL
Model Number :
CSG80
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500kg
Price :
2.2USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Tons per month
Delivery Time :
20 days
Packaging Details :
pallet/wooden case
Grade :
Industrial Grade
Type :
Flexible Sheet
Application :
gaskets
C content (%) :
99.9%
Thickness :
Customers' Demand
Material :
Graphite,High-Pure graphite
Weather Resistance :
UV and Humidity Resistance
High - Temperature Performance :
Stable at High Temperatures
Description

Products Description

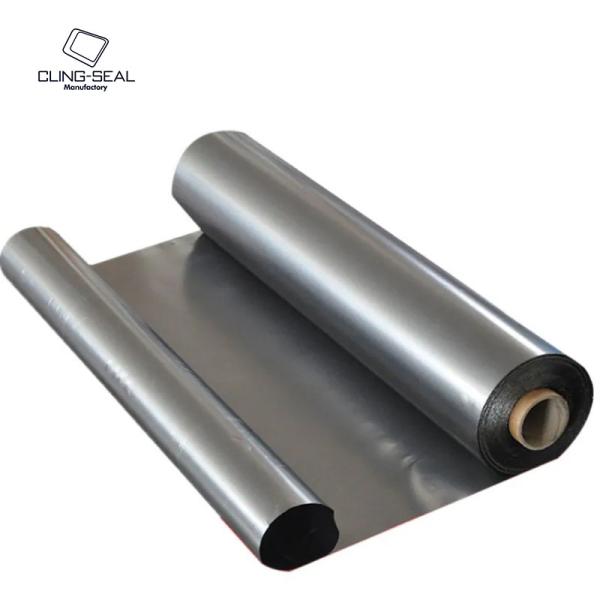

Sand-Resistant Flexible Graphite Sheet

Flexible graphite products include sheets, foils, papers, tapes, and strips. These materials are produced by chemically intercalating natural graphite flakes followed by high-temperature exfoliation, creating vermicular structures with ~0.003g/cm³ density. The binder-free expanded graphite is calendared into rolls, offering:

  • 99%+ purity
  • Chemical inertness
  • Radiation resistance
  • Thermal stability (-200°C to +650°C)
  • Compression recovery
  • Self-lubricating properties
  • Gas-tight sealing
  • Enhanced abrasion resistance through surface treatment

Ideal for harsh environments, these sheets feature specialized coatings to resist sand erosion while maintaining sealing performance. Composite options with metal reinforcements are available.

Specialized Applications:

  1. Packing rings for desert machinery
  2. Sealing gaskets for dusty industrial equipment
  3. High-temperature insulation in abrasive conditions
  4. Composite seals for pumps/valves in sandy environments

Standard & Custom Specifications:

  • Roll Width: 1000mm / 1500mm (custom up to 2000mm)
  • Coil Length: 30m / 50m / 80m (cut-to-length service)
  • Sheet Size: 1000x1000mm / 1500x1500mm
  • Thickness Range: 0.15-5.0mm
  • Density: 0.8-1.25g/cm³
  • Surface Treatments: Anti-abrasion coatings available
Item Standard Value
C concentration 99%
S concentration <1000ppm
chlorine concentration <45ppm
tensile strength 4.5MPa
compressibility >40%
recovery >10%
Temperature -200ºC-600ºC
Pressure 20MPa
Terence of Thickness -0.04mm~+0.04mm
Terence of Dimension In accordance with your Gasket size
Terence of Density -0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999
Mechanical Data Qualified product Top Grade Superior Grade
Density Tolerance
g/cm3		 <0.4 ±0.10
±0.05
≥0.4 ±0.07
Tensile Strength MPa ≥3.2 ≥4.5 ≥5.0
Compression Ratio % 35~55
Rebound Rate % ≥9 ≥11 ≥12
Stress relaxation rate % ≤10
Ash % ≤6.0 ≤3.0 ≤1.0
Heat loss on ignation % 450ºC ≤1.0 ≤0.5
600ºC ≤20 ≤15

Sulphur content 		≤1500ppm ≤1000ppm ≤600ppm

Chloride content		 ≤100ppm ≤50ppm ≤20ppm
