Industrial 99.9% Pure Graphite Sheet DIN Standard for Flange Sealing
Industrial 99.9% Pure Graphite Sheet DIN Standard for Flange Sealing
Industrial 99.9% Pure Graphite Sheet DIN Standard for Flange Sealing
Industrial 99.9% Pure Graphite Sheet DIN Standard for Flange Sealing
Industrial 99.9% Pure Graphite Sheet DIN Standard for Flange Sealing
Industrial 99.9% Pure Graphite Sheet DIN Standard for Flange Sealing
Specifications
Brand Name :
CLINGSEAL
Model Number :
CSG80
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500kg
Price :
2.2USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Tons per month
Delivery Time :
20 days
Packaging Details :
pallet/wooden case
Grade :
Industrial Grade
Type :
Flexible Sheet
Application :
gaskets
C content (%) :
99.9%
Thickness :
Customers' Demand
Material :
Graphite,High pure graphite
ISO Certification :
ISO 9001/14001
ASTM Standard :
ASTM - Compliant
CE Marking :
CE - Certified
Description

Products Description

DIN-Compliant Industrial Graphite Sheets

Product Overview

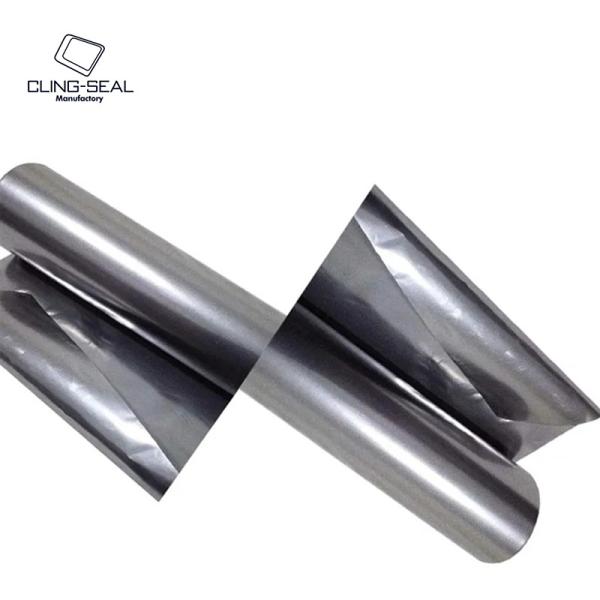

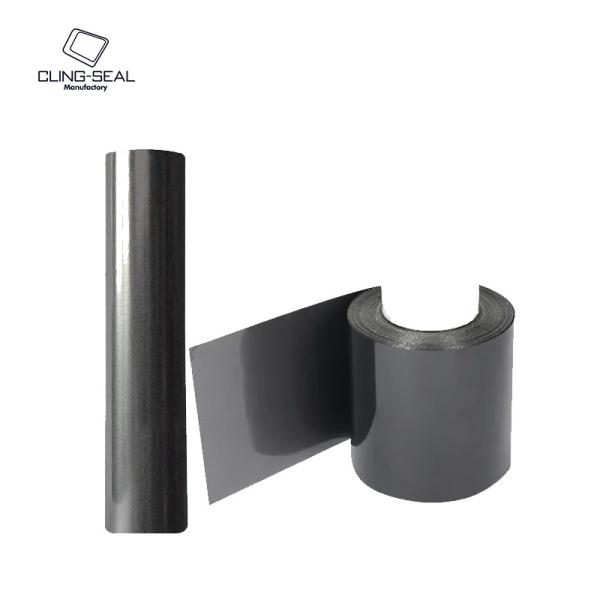

DIN-standard industrial graphite sheets, along with graphite foil, paper, tape, and strip, are advanced sealing materials manufactured from natural graphite flakes via a two-stage process: chemical intercalation and thermal expansion. This produces exfoliated graphite structures with a bulk density of approximately 0.003g/cc. The expanded graphite is then compressed into rolls or sheets without binders, ensuring a purity level exceeding 99.8% and compliance with DIN EN 13555 for sealing applications.

Key Features Meeting DIN Requirements

  1. Material Purity
    • Meets DIN 52900 standards for ash content (<0.2%) and sulfur content (<0.1%).
    • Free of halogenated compounds, aligning with DIN EN 61249-2-21 for electronic applications.
  2. Thermo-Mechanical Properties
    • Thermal stability from -200°C to +3000°C (DIN EN 1356 standard).
    • Compressive strength of 50-80 MPa (DIN EN 13555) with <3% creep relaxation under 100 bar pressure.
  3. Dimensional Accuracy
    • Width tolerance: ±0.5mm for 1000mm/1500mm rolls (DIN EN 13555).
    • Thickness uniformity: ±5% for 0.15-5mm sheets (DIN EN ISO 4784).

Applications in DIN-Compliant Systems

  1. Flange Sealing
    • Used in ASME B16.5/DIN EN 1092-1 flange connections, providing leak-tight seals for gas, liquid, and slurry pipelines.
    • Composite variants with stainless steel inserts meet DIN EN 15149-2 for pressure equipment.
  2. Valve & Pump Seals
    • Graphite packing rings for valves comply with DIN 3352, ensuring reliability in oil refineries and chemical plants.
    • Self-lubricating properties reduce friction in pumps adhering to DIN 24256 standards.
  3. High-Temperature Insulation
    • Thick plates (1.0-5mm) used in furnace doors and heat exchangers, meeting DIN 1709 for thermal insulation.

Technical Specifications

  • Sizes:
    • Rolls: 1000mm/1500mm width, 30m/50m/80m length.
    • Sheets: 1000mm x 1500mm, thicknesses 0.15-5mm.
  • Density: 0.8-1.25g/cm³ (customizable per DIN EN 13555).
  • Surface Finish: Smooth (<Ra 0.8μm) or textured for specific grip requirements (DIN 4768).

Compliance & Testing

  • Certified to DIN EN ISO 9001:2015 and DIN EN 14576 for environmental management.
  • Tested by TÜV for flame resistance (DIN 4102 B1) and chemical compatibility (DIN 53438).
  • Available with full traceability documentation in compliance with DIN EN 10204 3.1B.

Why Choose Our DIN-Compliant Graphite Sheets?

  • Precision Engineering: Laser-cutting ensures ±0.1mm dimensional accuracy for complex shapes.
  • Cost Efficiency: Reduces maintenance costs by 40% compared to traditional materials in continuous operation.
  • Global Support: On-site installation guidance provided by engineers certified to DIN 66023.

Engineered to meet the most rigorous European industrial standards for sealing and insulation.
Item Standard Value
C concentration 99%
S concentration <1000ppm
chlorine concentration <45ppm
tensile strength 4.5MPa
compressibility >40%
recovery >10%
Temperature -200ºC-600ºC
Pressure 20MPa
Terence of Thickness -0.04mm~+0.04mm
Terence of Dimension In accordance with your Gasket size
Terence of Density -0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999
Mechanical Data Qualified product Top Grade Superior Grade
Density Tolerance
g/cm3		 <0.4 ±0.10
±0.05
≥0.4 ±0.07
Tensile Strength MPa ≥3.2 ≥4.5 ≥5.0
Compression Ratio % 35~55
Rebound Rate % ≥9 ≥11 ≥12
Stress relaxation rate % ≤10
Ash % ≤6.0 ≤3.0 ≤1.0
Heat loss on ignation % 450ºC ≤1.0 ≤0.5
600ºC ≤20 ≤15

Sulphur content 		≤1500ppm ≤1000ppm ≤600ppm

Chloride content		 ≤100ppm ≤50ppm ≤20ppm
