CNC Machined Flexible Graphite Sheet 99.9% C Content With Custom Size
CNC Machined Flexible Graphite Sheet 99.9% C Content With Custom Size
CNC Machined Flexible Graphite Sheet 99.9% C Content With Custom Size
CNC Machined Flexible Graphite Sheet 99.9% C Content With Custom Size
CNC Machined Flexible Graphite Sheet 99.9% C Content With Custom Size
CNC Machined Flexible Graphite Sheet 99.9% C Content With Custom Size
Specifications
Brand Name :
CLINGSEAL
Model Number :
CSG80
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500kg
Price :
2.2USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Tons per month
Delivery Time :
20 days
Packaging Details :
pallet/wooden case
Grade :
Industrial Grade
C content (%) :
99.9%
Density :
Specific Gravity
Material :
High-Pure Graphite，Graphite,
Thickness :
Customizable
Type :
Flexible Sheet
Industry Application :
Oil & Gas, Chemical, Power
Customization :
Tailored Dimensions/Shapes
Description

Products Description

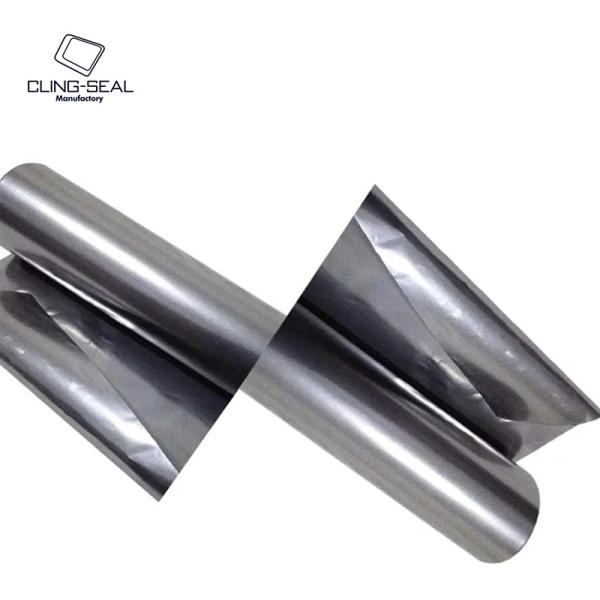

Custom-Sized Flexible Graphite Gaskets
Flexible graphite materials encompass sheets, foils, papers, tapes, and strips. These products are manufactured by chemically treating natural graphite flakes followed by high-temperature exfoliation, forming vermicular graphite structures with approximately 0.003g/cm³ density. The binder-free expanded graphite is calendared into rolls, offering:
  • 99%+ purity
  • Chemical inertness
  • Radiation tolerance
  • Thermal stability (-200°C to +650°C)
  • Compression recovery
  • Self-lubricating properties
  • Gas-tight sealing
These features make them ideal for low-pressure sealing applications. Composite options with metal reinforcements are available.
Customization Capabilities:
  1. Laser-cut packing rings in any size
  2. Die-cut composite gaskets for specialized applications
  3. CNC-machined thick plates for high-temperature insulation
Standard & Custom Specifications:
  • Roll Width: 1000mm / 1500mm (custom widths available)
  • Coil Length: 30m / 50m / 80m (cut-to-length service)
  • Sheet Size: 1000x1000mm / 1500x1500mm (custom sizes up to 2000mm)
  • Thickness Range: 0.15-5.0mm
  • Density: 0.8-1.25g/cm³
    Material grades: Pure graphite / metal-reinforced composites
Item Standard Value
C concentration 99%
S concentration <1000ppm
chlorine concentration <45ppm
tensile strength 4.5MPa
compressibility >40%
recovery >10%
Temperature -200ºC-600ºC
Pressure 20MPa
Terence of Thickness -0.04mm~+0.04mm
Terence of Dimension In accordance with your Gasket size
Terence of Density -0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999
Mechanical Data Qualified product Top Grade Superior Grade
Density Tolerance
g/cm3		 <0.4 ±0.10
±0.05
≥0.4 ±0.07
Tensile Strength MPa ≥3.2 ≥4.5 ≥5.0
Compression Ratio % 35~55
Rebound Rate % ≥9 ≥11 ≥12
Stress relaxation rate % ≤10
Ash % ≤6.0 ≤3.0 ≤1.0
Heat loss on ignation % 450ºC ≤1.0 ≤0.5
600ºC ≤20 ≤15

Sulphur content 		≤1500ppm ≤1000ppm ≤600ppm

Chloride content		 ≤100ppm ≤50ppm ≤20ppm
