EMI Shielding Gasket Reinforced Graphite Sheet With RoHS Compliant
EMI Shielding Gasket Reinforced Graphite Sheet With RoHS Compliant
EMI Shielding Gasket Reinforced Graphite Sheet With RoHS Compliant
EMI Shielding Gasket Reinforced Graphite Sheet With RoHS Compliant
EMI Shielding Gasket Reinforced Graphite Sheet With RoHS Compliant
EMI Shielding Gasket Reinforced Graphite Sheet With RoHS Compliant
Specifications
Brand Name :
CLINGSEAL
Model Number :
CSG80
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500kg
Price :
2.2USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Tons per month
Delivery Time :
20 days
Packaging Details :
pallet/wooden case
Grade :
Industrial Grade
Type :
Flexible Sheet
Application :
gaskets
C content (%) :
99.9%
Thickness :
Customers' Demand
Material :
Graphite,High pure graphite
RoHS Compliance :
Lead - Free/RoHS - Compliant
ISO Certification :
ISO 9001/14001
ASTM Standard :
ASTM - Compliant
Description

Products Description

RoHS-Compliant Flexible Graphite Gasket Solutions

Material Science & Manufacturing

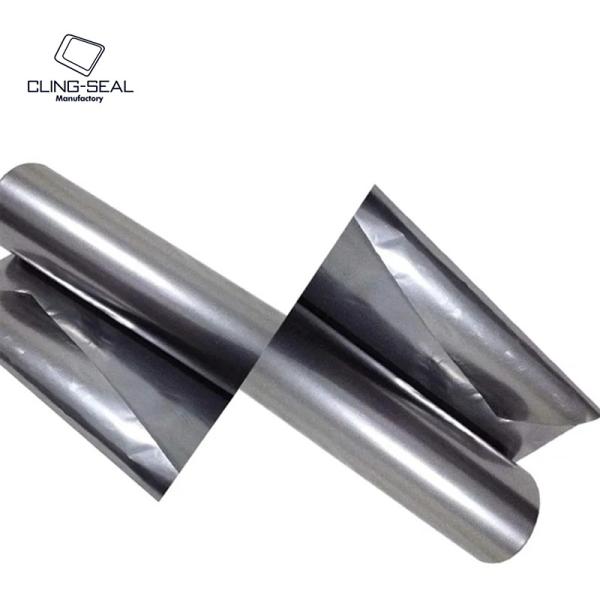

RoHS-compliant flexible graphite materials, including sheets, foil, paper, tape, and strips, are derived from natural graphite flakes through a proprietary process:

  1. Chemical Exfoliation: Graphite flakes undergo intercalation with sulfuric acid to create expandable graphite.
  2. Thermal Expansion: Heated to 1000°C+, producing worm-like structures with a bulk density of 0.003g/cc.

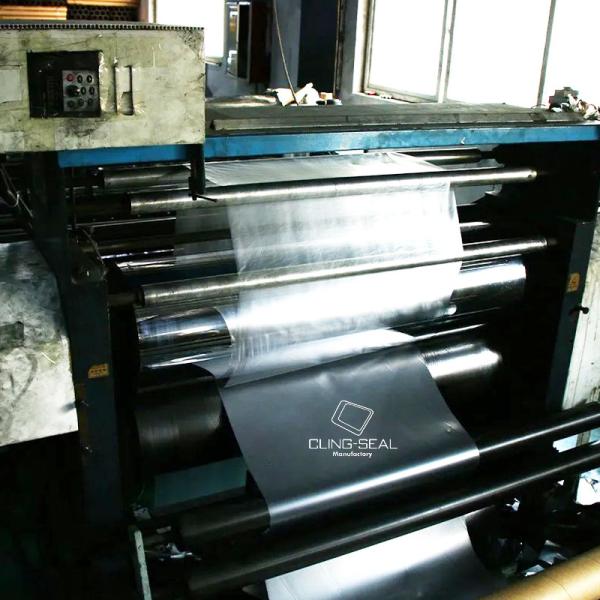

  3. Cold Rolling: Compressed into binder-free coils/sheets, ensuring 99.9% purity and halogen-free composition.

Key Advantages for RoHS-Required Industries

  1. Toxic Substance Free
    • Complies with EU RoHS 2011/65/EU (Restriction of Hazardous Substances).
    • Contains <0.1% lead, <0.01% cadmium, and zero mercury/chromium VI.
  2. Multi-Industry Adaptability
    • Electronics: EMI shielding gaskets for smartphones/tablets (IEC 61373 compliance).
    • Automotive: Engine compartment seals resisting glycol-based coolants (SAE J2006).
    • Medical: Non-toxic seals for MRI equipment and pharmaceutical pumps (USP Class VI).
  3. Performance Metrics
    • Temperature Range: -200°C to +1650°C (oxidation resistance up to 500°C in air).
    • Compressive Strength: 45-60 MPa (ASTM F36), with 90% recovery after 10,000 cycles.
    • Gas Permeability: <0.01 cm³/(m·s·Pa) for helium leakage (ASTM D1434).

Customization for RoHS Compliance

  • Special Coatings:
    • PTFE-laminated variants for RoHS-compliant chemical resistance.
    • Silicone-free options for semiconductor manufacturing.
  • Hybrid Composites:
    • Stainless steel-reinforced sheets for RoHS-compliant high-pressure applications (ASME B16.20).
    • Carbon fiber interleaves for lightweight, rigid gaskets in aerospace (FAR 25.853).

Compliance & Testing

  • Certifications:
    • EU RoHS 2011/65/EU Annex II compliant.
    • REACH registered (EC 1907/2006).
    • FDA 21 CFR Part 177.2600 compliant for food contact.
  • Testing Reports:
    • SGS-tested for heavy metals (EN 1122:2001).
    • UL 94 V-0 flame rating available upon request.

Product Specifications

Parameter Standard Range Custom Options
Width 1000mm/1500mm 500-2000mm (special orders)
Thickness 0.15-5.0mm 0.05-10mm (precision cutting)
Density 0.8-1.25g/cm³ 0.5-1.5g/cm³ (density gradient)
RoHS Compliance Yes (with certificate) Additional REACH SVHC testing

Why Choose Our RoHS-Compliant Solutions?

  • Cost Efficiency: Reduces compliance risks in global supply chains.
  • Technical Support: Free FEA analysis for critical RoHS applications.
  • Sustainability: 98% material recyclability with carbon-neutral shipping options.

Engineered for performance without compromising environmental responsibility.
Item Standard Value
C concentration 99%
S concentration <1000ppm
chlorine concentration <45ppm
tensile strength 4.5MPa
compressibility >40%
recovery >10%
Temperature -200ºC-600ºC
Pressure 20MPa
Terence of Thickness -0.04mm~+0.04mm
Terence of Dimension In accordance with your Gasket size
Terence of Density -0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999
Mechanical Data Qualified product Top Grade Superior Grade
Density Tolerance
g/cm3		 <0.4 ±0.10
±0.05
≥0.4 ±0.07
Tensile Strength MPa ≥3.2 ≥4.5 ≥5.0
Compression Ratio % 35~55
Rebound Rate % ≥9 ≥11 ≥12
Stress relaxation rate % ≤10
Ash % ≤6.0 ≤3.0 ≤1.0
Heat loss on ignation % 450ºC ≤1.0 ≤0.5
600ºC ≤20 ≤15

Sulphur content 		≤1500ppm ≤1000ppm ≤600ppm

Chloride content		 ≤100ppm ≤50ppm ≤20ppm
