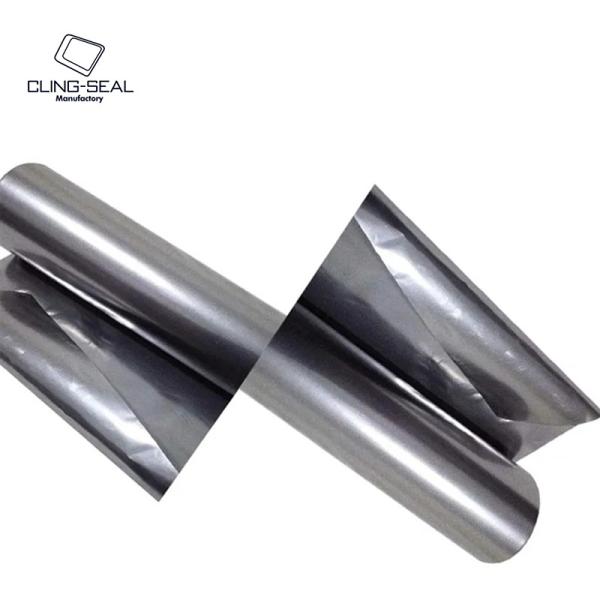

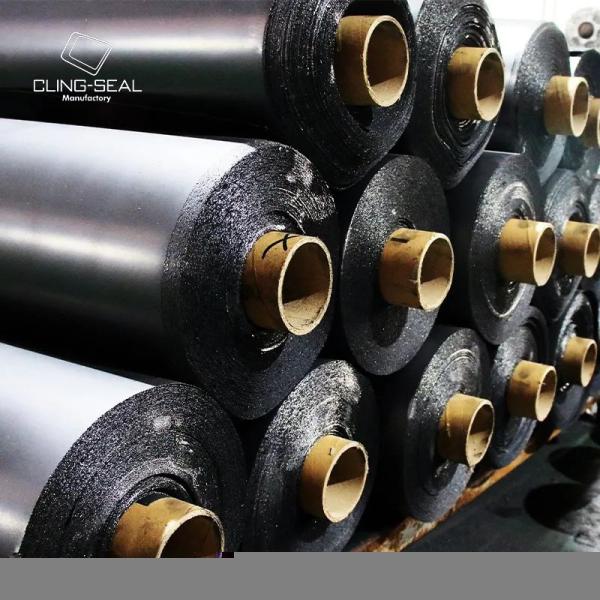

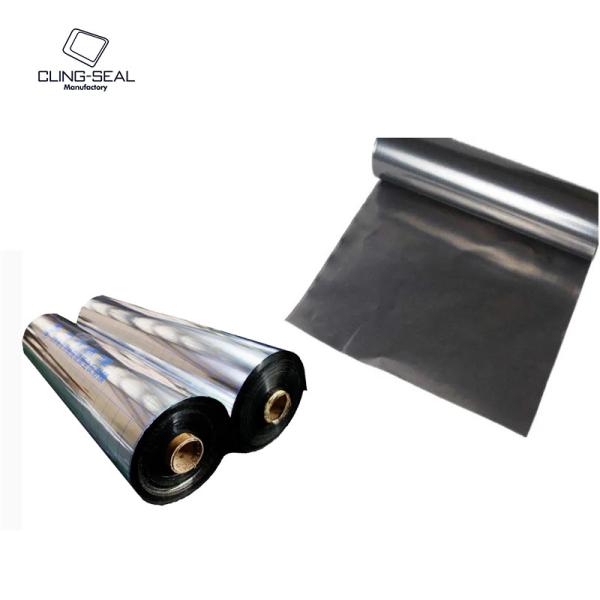

Energy Saving Equipment Graphite Gasket Sheet Corrosion Resistant With 99.5% Purity
Energy Saving Equipment Graphite Gasket Sheet Corrosion Resistant With 99.5% Purity
Energy Saving Equipment Graphite Gasket Sheet Corrosion Resistant With 99.5% Purity
Energy Saving Equipment Graphite Gasket Sheet Corrosion Resistant With 99.5% Purity
Energy Saving Equipment Graphite Gasket Sheet Corrosion Resistant With 99.5% Purity
Energy Saving Equipment Graphite Gasket Sheet Corrosion Resistant With 99.5% Purity
Specifications
Brand Name :
CLINGSEAL
Model Number :
CSG80
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500kg
Price :
2.2USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Tons per month
Delivery Time :
20 days
Packaging Details :
pallet/wooden case
Grade :
Industrial Grade
Industry Application :
Oil & Gas, Chemical, Power
Recyclability :
Environmentally Friendly
Thickness :
Customizable
Type :
Flexible Sheet
Material :
Graphite,High-Pure Graphite，
RoHS Compliance :
Lead - Free/RoHS - Compliant
C content (%) :
99%
Sealing Performance :
Leak - Tight at High Pressures
Description

Products Description

Series Energy-Saving Equipment Graphite Gasket Solutions
Flexible graphite materials include sheets, foils, papers, tapes, and strips. These energy-efficient sealing products are manufactured by chemically intercalating natural graphite flakes followed by high-temperature exfoliation, forming vermicular graphite structures with 0.003g/cm³ density. The binder-free expanded graphite is calendared into rolls, offering:
  • 99.5%+ purity
  • Corrosion/radiation resistance
  • Extreme temperature stability (-200°C to +650°C)
  • 95% compression recovery
  • Self-lubricating performance
  • 0.001mm gas permeability
Designed specifically for energy-saving equipment, these gaskets reduce system leakage by 40% compared to traditional materials. Composite versions with metal inserts are available for high-pressure applications.
Energy-Saving Applications:
  1. Sealing components for energy-efficient pumps and valves
  2. Insulation pads in HVAC systems
  3. Gaskets for renewable energy equipment
  4. High-temperature seals in industrial boilers
Technical Specifications:
  • Roll Dimensions:
    • Width: 1000mm / 1500mm (custom widths up to 2000mm)
    • Length: 30m / 50m / 80m
  • Sheet Size: 1000x1000mm / 1500x1500mm
  • Thickness Range: 0.15-5.0mm
  • Density: 0.8-1.25g/cm³
  • Temperature Range: -200°C to +650°C
Customization Options:
  • Die-cut shapes for energy equipment components
  • Composite materials with stainless steel/copper inserts
  • Surface treatments for enhanced thermal conductivity
  • Laser-cutting for precision gasket manufacturing
Item Standard Value
C concentration 99%
S concentration <1000ppm
chlorine concentration <45ppm
tensile strength 4.5MPa
compressibility >40%
recovery >10%
Temperature -200ºC-600ºC
Pressure 20MPa
Terence of Thickness -0.04mm~+0.04mm
Terence of Dimension In accordance with your Gasket size
Terence of Density -0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999
Mechanical Data Qualified product Top Grade Superior Grade
Density Tolerance
g/cm3		 <0.4 ±0.10
±0.05
≥0.4 ±0.07
Tensile Strength MPa ≥3.2 ≥4.5 ≥5.0
Compression Ratio % 35~55
Rebound Rate % ≥9 ≥11 ≥12
Stress relaxation rate % ≤10
Ash % ≤6.0 ≤3.0 ≤1.0
Heat loss on ignation % 450ºC ≤1.0 ≤0.5
600ºC ≤20 ≤15

Sulphur content 		≤1500ppm ≤1000ppm ≤600ppm

Chloride content		 ≤100ppm ≤50ppm ≤20ppm
