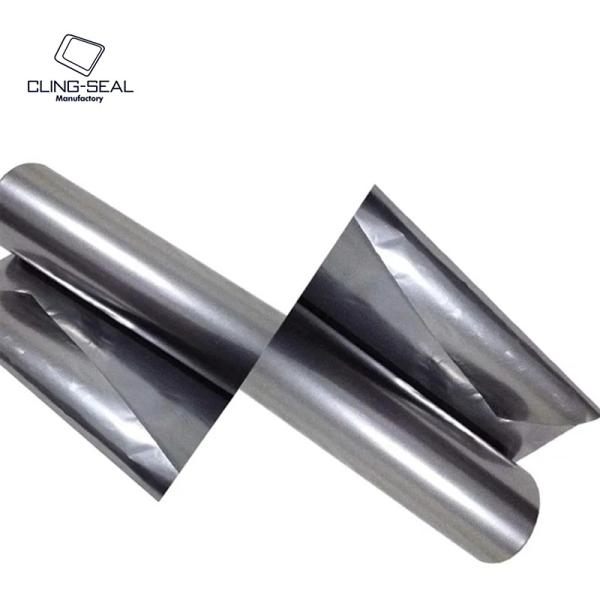

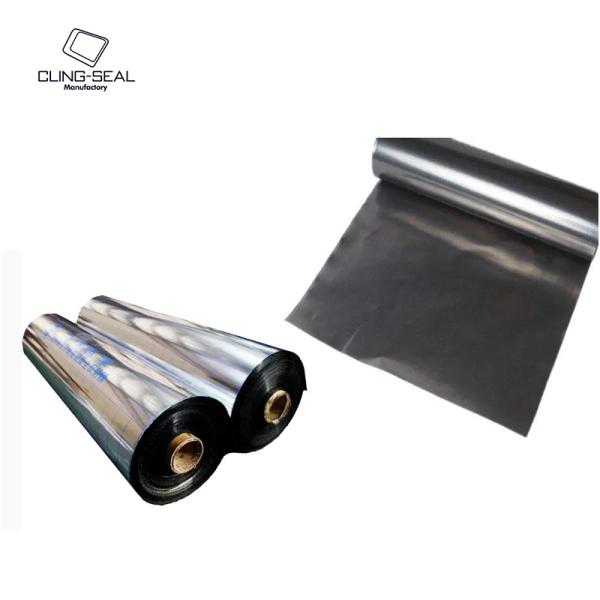

Low Friction Gas Tight Sealing Graphite Gasket Sheet 99.8% Purity
Low Friction Gas Tight Sealing Graphite Gasket Sheet 99.8% Purity
Low Friction Gas Tight Sealing Graphite Gasket Sheet 99.8% Purity
Low Friction Gas Tight Sealing Graphite Gasket Sheet 99.8% Purity
Low Friction Gas Tight Sealing Graphite Gasket Sheet 99.8% Purity
Low Friction Gas Tight Sealing Graphite Gasket Sheet 99.8% Purity
Specifications
Brand Name :
CLINGSEAL
Model Number :
CSG80
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500kg
Price :
2.2USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Tons per month
Delivery Time :
20 days
Packaging Details :
pallet/wooden case
Grade :
Industrial Grade
Type :
Flexible Sheet
Application :
Oil & Gas, Chemical, Power
C content (%) :
99.9%
Thickness :
Customizable
Material :
Graphite,High-pure graphite
Customization :
Tailored Dimensions/Shapes
Friction Coefficient :
Low Friction
Description

Products Description

Premium Low Friction Graphite Sealing Solutions

Our low friction graphite sealing materials include flexible sheets, foils, papers, tapes, and strips. Manufactured through chemical intercalation and thermal exfoliation of natural graphite flakes, these products form vermicular structures with approximately 0.003g/cm³ density. The binder-free expanded graphite rolls feature:

  • Exceptional purity (99.8%+)
  • Chemical inertness
  • Radiation resistance
  • Extreme temperature stability (-200°C to +650°C)
  • Self-lubricating properties (μ=0.05-0.12)
  • Gas-tight sealing performance
  • High compression recovery

Ideal for low-pressure applications requiring minimal friction, these materials can be laminated with metal substrates for enhanced structural integrity.

Low Friction Applications:

  1. High-performance packing rings for rotating equipment
  2. Custom-shaped gaskets with reduced wear characteristics
  3. Graphite-metal composite seals for dynamic systems
  4. High-temperature insulation pads with lubricating properties

Customizable Specifications:

  • Roll Dimensions:
    • Width: 1000mm / 1500mm (custom widths available)
    • Length: 30m / 50m / 80m
  • Sheet Size: 1000x1000mm / 1500x1500mm
  • Thickness Range: 0.15-5.0mm
  • Density: 0.8-1.25g/cm³
  • Friction Coefficient: 0.05-0.12 (depending on formulation)

Engineered for low friction environments, our graphite sealing materials provide reliable performance in pumps, valves, and rotating machinery while maintaining dimensional stability.
Item Standard Value
C concentration 99%
S concentration <1000ppm
chlorine concentration <45ppm
tensile strength 4.5MPa
compressibility >40%
recovery >10%
Temperature -200ºC-600ºC
Pressure 20MPa
Terence of Thickness -0.04mm~+0.04mm
Terence of Dimension In accordance with your Gasket size
Terence of Density -0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999
Mechanical Data Qualified product Top Grade Superior Grade
Density Tolerance
g/cm3		 <0.4 ±0.10
±0.05
≥0.4 ±0.07
Tensile Strength MPa ≥3.2 ≥4.5 ≥5.0
Compression Ratio % 35~55
Rebound Rate % ≥9 ≥11 ≥12
Stress relaxation rate % ≤10
Ash % ≤6.0 ≤3.0 ≤1.0
Heat loss on ignation % 450ºC ≤1.0 ≤0.5
600ºC ≤20 ≤15

Sulphur content 		≤1500ppm ≤1000ppm ≤600ppm

Chloride content		 ≤100ppm ≤50ppm ≤20ppm
