Multi Layer Composite Graphite Sheet 99% For Rotating Equipment
Multi Layer Composite Graphite Sheet 99% For Rotating Equipment
Multi Layer Composite Graphite Sheet 99% For Rotating Equipment
Multi Layer Composite Graphite Sheet 99% For Rotating Equipment
Multi Layer Composite Graphite Sheet 99% For Rotating Equipment
Multi Layer Composite Graphite Sheet 99% For Rotating Equipment
Specifications
Brand Name :
CLINGSEAL
Model Number :
CSG80
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500kg
Price :
2.2USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Tons per month
Delivery Time :
20 days
Packaging Details :
pallet/wooden case
Grade :
Industrial Grade
Industry Application :
Oil & Gas, Chemical, Power
Customization :
Tailored Dimensions/Shapes
Thickness :
Customizable
Type :
Flexible Sheet
Material :
High-Pure Graphite，Graphite
Cutting Method :
Laser/Waterjet Cutting
C content (%) :
99%
Elongation :
Percentage Elongation
Description

Products Description

Multi-Layer Composite Graphite Sheet Solutions
Our multi-layer composite graphite sheets are engineered using advanced lamination technology, combining flexible graphite materials with metal reinforcement layers. These composite solutions integrate the following components:
  • Flexible graphite core layers (sheets/foils/papers)
  • Stainless steel/nickel alloy reinforcement layers
  • Optional adhesive-free bonding process

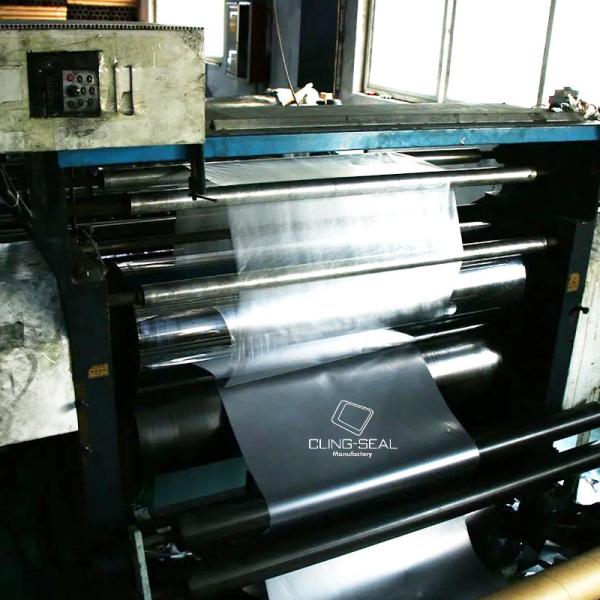

Manufacturing Process:
  1. Natural flake graphite undergoes chemical intercalation and high-temperature exfoliation to form vermicular structures (density ~0.003g/cm³)
  2. Expanded graphite is rolled into binder-free coils
  3. Composite sheets are produced via:
    • Pressure lamination with metal meshes
    • Vacuum-bonded multi-layer structures
    • High-temperature sintering processes
Key Features:
  • Layered construction enhances mechanical strength
  • Maintains chemical resistance of pure graphite
  • Radiation shielding capabilities
  • Thermal stability (-200°C to +650°C)
  • Compression recovery up to 85%
  • Self-lubricating sealing performance
Application Scenarios:
  1. Multi-layered packing rings for rotating equipment
  2. Composite gaskets for flange sealing in petrochemical plants
  3. Heat exchanger seals requiring structural reinforcement
  4. Aerospace-grade thermal insulation panels
Composite Sheet Specifications:
  • Layer Configurations: 2-ply (graphite + metal) to 5-ply structures
  • Standard Sizes:
    • Width: 1000mm / 1500mm
    • Length: 30m / 50m (coils) / 1000x1000mm (sheets)
  • Thickness Range: 0.3mm-3.0mm (composite)
  • Density: 1.0-1.4g/cm³
  • Metal Layers: 0.05mm-0.2mm thickness
Custom multi-layer composite graphite sheets available with:
  • Embedded wire mesh reinforcement
  • Corrosion-resistant coatings
  • Pre-cut gasket patterns
  • High-temperature adhesive options
Item Standard Value
C concentration 99%
S concentration <1000ppm
chlorine concentration <45ppm
tensile strength 4.5MPa
compressibility >40%
recovery >10%
Temperature -200ºC-600ºC
Pressure 20MPa
Terence of Thickness -0.04mm~+0.04mm
Terence of Dimension In accordance with your Gasket size
Terence of Density -0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999
Mechanical Data Qualified product Top Grade Superior Grade
Density Tolerance
g/cm3		 <0.4 ±0.10
±0.05
≥0.4 ±0.07
Tensile Strength MPa ≥3.2 ≥4.5 ≥5.0
Compression Ratio % 35~55
Rebound Rate % ≥9 ≥11 ≥12
Stress relaxation rate % ≤10
Ash % ≤6.0 ≤3.0 ≤1.0
Heat loss on ignation % 450ºC ≤1.0 ≤0.5
600ºC ≤20 ≤15

Sulphur content 		≤1500ppm ≤1000ppm ≤600ppm

Chloride content		 ≤100ppm ≤50ppm ≤20ppm
