Specifications
Brand Name :
CLINGSEAL
Model Number :
CSG80
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500kg
Price :
2.2USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Tons per month
Delivery Time :
20 days
Packaging Details :
pallet/wooden case
Grade :
Industrial Grade
C content (%) :
99.9%
Application :
Industrial machinery and pump valve sealing
Type :
Flexible Sheet
Thickness :
Customizable
Material :
High-pure graphite，Graphite,
ISO Certification :
ISO 9001/14001
ASTM Standard :
ASTM - Compliant
Description

Products Description

UK Emergency Replacement Graphite Gasket Solutions

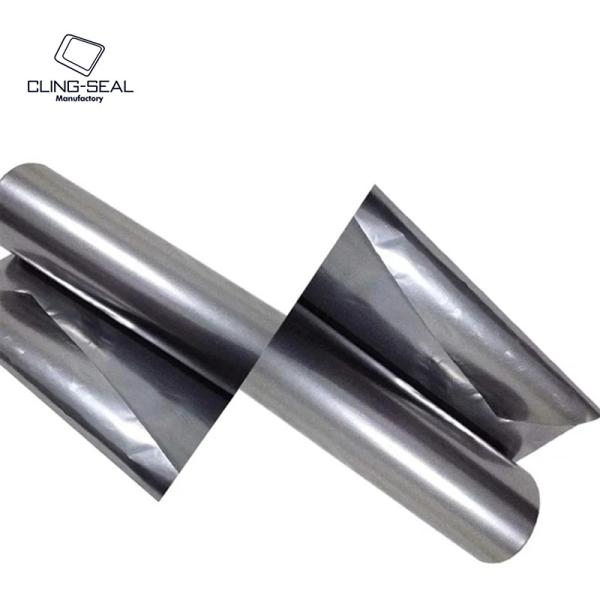

Our flexible graphite materials include: sheets, foils, papers, tapes, and strips. Specifically designed for emergency gasket replacement scenarios, these products are produced through chemical intercalation and high-temperature exfoliation of natural graphite flakes, creating vermicular structures with 0.003g/cm³ density. The binder-free expanded graphite is calendared into coils, offering:
  • 99.9% purity
  • Chemical resistance
  • Radiation tolerance
  • Extreme temperature stability (-200°C to +650°C)
  • Compression recovery
  • Self-lubricating properties
  • Gas-tight sealing performance
Ideal for UK industrial emergency repair needs, these coils can be combined with metal sheets to produce composite gaskets.
Emergency Application Scenarios:
  1. Critical packing ring replacements for UK power plants
  2. Rapid gasket fabrication for chemical processing equipment
  3. High-temperature insulation pads for emergency maintenance
  4. Custom-shaped seals for pump/valve repair in UK factories
UK Stock Specifications:

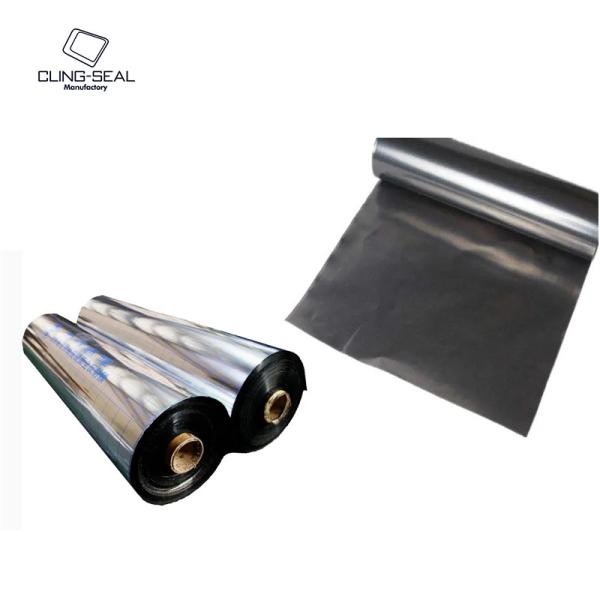

  • Standard Rolls:
    • Width: 1000mm / 1500mm
    • Length: 30m (express delivery available)
  • Emergency Sheet Sizes: 1000x1000mm / 1500x1500mm
  • Thickness Range:
    • Coils: 0.15-1.0mm (same-day dispatch)
    • Sheets: 1.0-5.0mm (urgent cutting service)
  • Density: 0.8-1.25g/cm³
    Custom UK-specification gaskets available within 24 hours
Item Standard Value
C concentration 99%
S concentration <1000ppm
chlorine concentration <45ppm
tensile strength 4.5MPa
compressibility >40%
recovery >10%
Temperature -200ºC-600ºC
Pressure 20MPa
Terence of Thickness -0.04mm~+0.04mm
Terence of Dimension In accordance with your Gasket size
Terence of Density -0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999
Mechanical Data Qualified product Top Grade Superior Grade
Density Tolerance
g/cm3		 <0.4 ±0.10
±0.05
≥0.4 ±0.07
Tensile Strength MPa ≥3.2 ≥4.5 ≥5.0
Compression Ratio % 35~55
Rebound Rate % ≥9 ≥11 ≥12
Stress relaxation rate % ≤10
Ash % ≤6.0 ≤3.0 ≤1.0
Heat loss on ignation % 450ºC ≤1.0 ≤0.5
600ºC ≤20 ≤15

Sulphur content 		≤1500ppm ≤1000ppm ≤600ppm

Chloride content		 ≤100ppm ≤50ppm ≤20ppm
