Specifications
Brand Name :
CLINGSEAL
Model Number :
CSG80
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500kg
Price :
2.2USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Tons per month
Delivery Time :
20 days
Packaging Details :
pallet/wooden case
Grade :
Industrial Grade
Type :
Flexible Sheet
Application :
gaskets
C content (%) :
99.9%
Thickness :
Customers' Demand
Material :
Graphite,High pure graphite
Machinability :
Ease of Cutting/Shaping
Cutting Method :
Laser/Waterjet Cutting
Surface Treatment :
Smooth/Textured Finish
Description

Products Description

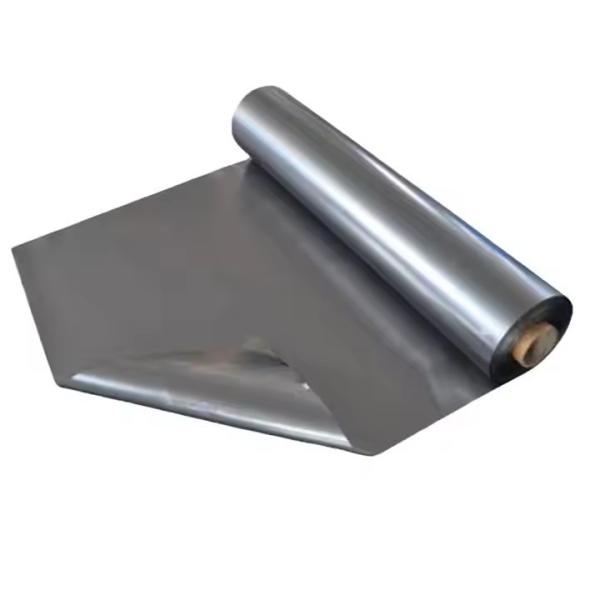

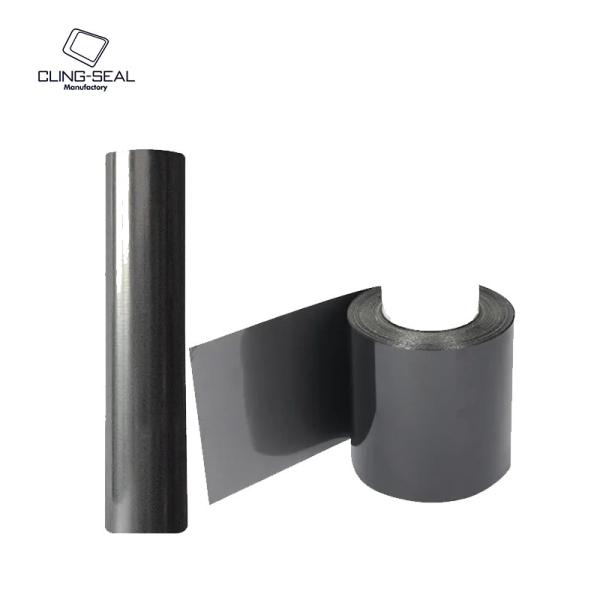

1.8g/cm³ High-Density Flexible Graphite Sheets

Flexible graphite products include sheets, foils, papers, tapes, and strips. These materials are manufactured through chemical intercalation of natural flake graphite followed by high-temperature exfoliation, forming vermicular structures with 0.003g/cm³ density. The expanded graphite is calendared into binder-free rolls, then processed to achieve:

  • 1.8g/cm³ controlled density
  • 99%+ purity
  • Chemical inertness
  • Radiation resistance
  • Thermal stability (-200°C to +650°C)
  • Compression recovery
  • Self-lubricating properties
  • Gas-tight sealing

These features make high-density sheets ideal for demanding sealing applications. Composite options with metal reinforcement available.

Key Applications:

  1. High-pressure packing rings
  2. Custom-shaped gaskets for industrial machinery
  3. Thick insulation pads for high-temperature systems
  4. Sealing components for chemical processing equipment

Technical Specifications:

  • Density: 1.8g/cm³ (customizable from 0.8-2.0g/cm³)
  • Roll Dimensions:
    • Width: 1000mm / 1500mm
    • Length: 30m / 50m / 80m
  • Sheet Size: 1000x1000mm / 1500x1500mm
  • Thickness Range:
    • Rolls: 0.15-1.0mm
    • Sheets: 1.0-5.0mm
  • Material Options: Pure graphite / metal-reinforced composites
Item Standard Value
C concentration 99%
S concentration <1000ppm
chlorine concentration <45ppm
tensile strength 4.5MPa
compressibility >40%
recovery >10%
Temperature -200ºC-600ºC
Pressure 20MPa
Terence of Thickness -0.04mm~+0.04mm
Terence of Dimension In accordance with your Gasket size
Terence of Density -0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999
Mechanical Data Qualified product Top Grade Superior Grade
Density Tolerance
g/cm3		 <0.4 ±0.10
±0.05
≥0.4 ±0.07
Tensile Strength MPa ≥3.2 ≥4.5 ≥5.0
Compression Ratio % 35~55
Rebound Rate % ≥9 ≥11 ≥12
Stress relaxation rate % ≤10
Ash % ≤6.0 ≤3.0 ≤1.0
Heat loss on ignation % 450ºC ≤1.0 ≤0.5
600ºC ≤20 ≤15

Sulphur content 		≤1500ppm ≤1000ppm ≤600ppm

Chloride content		 ≤100ppm ≤50ppm ≤20ppm
