CWDM CCWDM Multiplexer Coarse Wavelength Division Multiplexer 2CH 4CH 6CH 8CH 18CH
CWDM CCWDM Multiplexer Coarse Wavelength Division Multiplexer 2CH 4CH 6CH 8CH 18CH
CWDM CCWDM Multiplexer Coarse Wavelength Division Multiplexer 2CH 4CH 6CH 8CH 18CH
CWDM CCWDM Multiplexer Coarse Wavelength Division Multiplexer 2CH 4CH 6CH 8CH 18CH
Specifications
Operating Wavelength :
1260~1660 nm
Channel Spacing :
20 nm
Channel Passband :
±6.5 nm
Insertion Loss :
CWDM: 1.2-4.2 dB, CCWDM: 0.6-2.5 dB
Channel Isolation :
Adjacent: ≥30 dB, Non-adjacent: ≥40 dB
Fiber Length :
1000 mm
Place of Origin :
China
Brand Name :
Gracyfiber
Certification :
ISO CE RoSH
MOQ :
100pcs
Payment Terms :
T/T
Description

CWDM/CCWDM Multiplexer (Coarse Wavelength Division Multiplexer) — 2CH, 4CH, 6CH, 8CH, 18CH (1260–1660nm) With Monitor Port For Optical Transmission Systems

1. Product Description

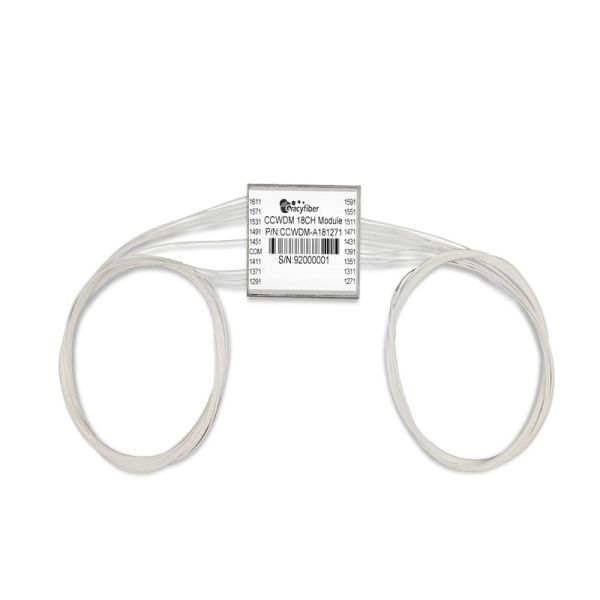

This CWDM/CCWDM Multiplexer is a Coarse Wavelength Division Multiplexer designed specifically for optical transmission networks. It operates within a wavelength range of 1260 to 1660 nm, supporting standard CWDM wavelengths from 1270/1290/1310 nm up to 1610 nm; corresponding CCWDM wavelength configurations are also available. The product features a channel spacing of 20 nm and a channel bandwidth of ±6.5 nm. It is available in various configurations—including 2-channel, 4-channel, 6-channel, 8-channel, and 18-channel options—and integrates a dedicated Monitor port. This makes it ideally suited for applications involving wavelength multiplexing, demultiplexing, link monitoring, and multi-service optical network systems. The device utilizes G657A1, G657A2, G657B3, or SMF-28 optical fibers, offering low insertion loss, excellent channel isolation, and stable optical performance. Notably, the CCWDM configuration features a more compact structure and exhibits even lower insertion loss in multi-channel applications. The product supports either 250μm bare fiber or 900μm loose-tube cabling, with a standard cable length of 1000 mm; connector options include standard LC/UPC or customized alternatives. The CWDM version is available in both cassette and rack-mount packaging options, while the CCWDM version offers a more miniaturized package, facilitating seamless equipment integration, cabinet installation, and OEM project implementation.

2. Key Features
Parameter Unit Value
Operating Wavelength nm 1260~1660
Special Port nm Monitor
Center Wavelength nm 1270/1290/1310/…../1570/1590/1610 or 1271/1291/1311/…../1571/1591/1611
Channel Spacing nm 20
Channel Passband Min nm ±6.5
Channel - 2CH 4CH 6CH 8CH 18CH
Port Insertion Loss CWDM. Max dB 1.2 1.5 2.0 2.6 4.2
CCWDM. Max dB 0.6 0.8 1.5 2.0 2.5
Isolation Adjacent dB ≥30 ≥30 ≥30 ≥30 ≥30
Non-adjacent dB ≥40 ≥40 ≥40 ≥40 ≥40
Ripple Max dB 0.3 0.3 0.5 0.5 0.5
PDL Max dB 0.5
Return Loss Min dB 40
Directivity Min dB 50
Power Handing Max mW 300
Fiber Type - G67A1/ A2/ B3 or SMF-28
Fiber Coating um 250 µm / 900 µm loose tube
Fiber Length mm 1000
Connector - LC/UPC or Customized
Dimensions (HxWxD) CWDM mm 80x58x8, 120x80x18, 155x129x29, 482x250x44
CCWDM mm 45x25x6, 50x50x6, 60x45x6
Operating Temperature °C -5~65
Storage Temperature °C -40~85
  • Supports 1260–1660 nm operating wavelength range
  • Supports both CWDM and CCWDM solutions
  • Offers 2-channel / 4-channel / 6-channel / 8-channel / 18-channel configurations
  • Channel spacing: 20 nm; Channel bandwidth: ±6.5 nm
  • Integrated Monitor port
  • Adjacent channel isolation: ≥30 dB; Non-adjacent channel isolation: ≥40 dB
  • CCWDM features lower insertion loss and a more compact structure
  • Supports LC/UPC or custom connectors
  • Supports modular, box-type, and rack-mount packaging options
CWDM CCWDM Multiplexer Coarse Wavelength Division Multiplexer 2CH 4CH 6CH 8CH 18CH
3. Applications
  • CWDM optical transmission systems
  • Wavelength Division Multiplexing (WDM) and Demultiplexing equipment
  • Optical line monitoring systems
  • Metropolitan Area Network (MAN) and Access Network deployment
  • Data center optical interconnects
  • Optical communication test platforms
  • OEM optical communication modules
