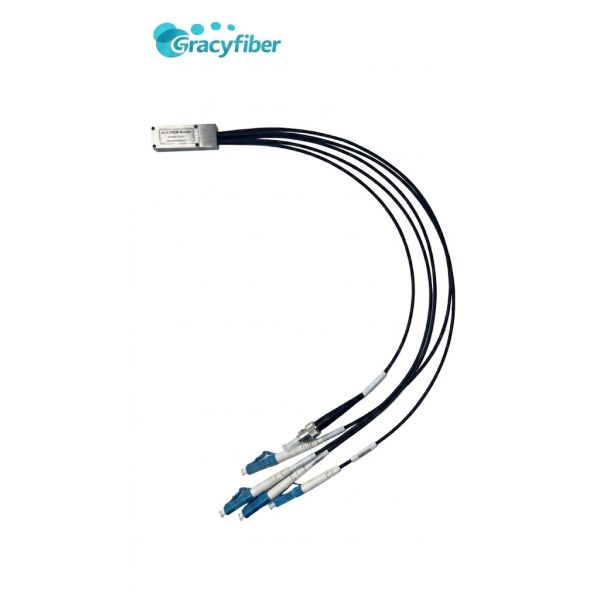

4CH O-Band CWDM Multiplexer Module (1271~1331nm)
4CH O-Band CWDM Multiplexer Module (1271~1331nm)
Specifications
Operating Temperature :
-55°C to 85°C
Insertion Loss :
≤1.5 dB
Channel Isolation :
≥30 dB (adjacent), ≥40 dB (non-adjacent)
Dimensions :
37.5 × 12.8 × 6.5 mm
Operating Wavelengths :
1271 nm, 1291 nm, 1311 nm, 1331 nm
Channel Bandwidth :
±6.5 nm
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces per month
MOQ :
1pieces
Description

4CH O-Band CWDM Multiplexer Module (1271~1331nm)


1. Features

  • Ultra-wide operating temperature range from -55°C to 85°C for deployment in extreme environments.


  • Delivers low insertion loss (≤1.5 dB) and low polarization dependent loss (≤0.3 dB) for consistent signal integrity.


  • Engineered for high channel isolation, achieving ≥30 dB for adjacent channels and ≥40 dB for non-adjacent channels.


  • Features ruggedized 2.0mm armored fiber tubing to provide maximum mechanical protection.


  • Highly compact module footprint measuring just 37.5 × 12.8 × 6.5 mm.


2. Applications

  • Coarse Wavelength Division Multiplexing (CWDM) network architectures.

  • Industrial and harsh environment optical communication systems.

  • Specialized multi-signal routing, including visible (1271nm), infrared (1291nm), and imaging (1311nm) transmission applications.


3. Specifications


  • Operating Wavelengths: 1271 nm, 1291 nm, 1311 nm, and 1331 nm.



  • Channel Bandwidth: Center wavelength (λc) ±6.5 nm.


  • Optical Performance: Insertion Loss ≤ 1.5 dB; Ripple ≤ 0.5 dB; PDL ≤ 0.3 dB.



  • Fiber Configuration: G.657 A1 fiber housed in 2.0mm armored tubing.


  • Connector Type: ST/UPC on the COM port; LC/UPC on all channel ports.



  • Temperature Rating: Operating and storage temperatures strictly tested from -55°C to 85°C.

4CH O-Band CWDM Multiplexer Module (1271~1331nm)

Send your message to this supplier
Send Now

4CH O-Band CWDM Multiplexer Module (1271~1331nm)

Ask Latest Price
Product Detail
Operating Temperature :
-55°C to 85°C
Insertion Loss :
≤1.5 dB
Channel Isolation :
≥30 dB (adjacent), ≥40 dB (non-adjacent)
Dimensions :
37.5 × 12.8 × 6.5 mm
Operating Wavelengths :
1271 nm, 1291 nm, 1311 nm, 1331 nm
Channel Bandwidth :
±6.5 nm
