Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss
Specifications
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
MOQ :
1pieces
Payment Terms :
L/C,T/T
Delivery Time :
5-8 work days
Supply Ability :
100,000 pieces per month
Power Handling :
Up to 500 mW
Isolation :
≥ 30 dB
Insertion Loss :
Typically ≤ 1.0 dB
Operating Temperature :
-40°C to +85°C
Channel Spacing :
100 GHz, 50 GHz, or custom
Wavelength Range :
1260 nm to 1650 nm
Description
Ultra-Compact Free-Space Wavelength Division Multiplexer (UCWDM)
1. Product Overview

GRACYFIBER's Ultra-Miniature Wavelength Division Multiplexer (UCWDM) is a revolutionary high-density optical engine designed to break down the physical space barriers within 5G fronthaul and high-speed optical modules (100G~800G).

2. Product Features
Parameter Unit Value
Operating
Center Wavelength		 CWDM nm 1270/1290/1310/…../1570/1590/1610
LWDM nm 1269.23 / 1273.54 / 1277.89 / 1282.26 / 1286.66 / 1291.10
/ 1295.56 / 1300.05 / 1304.58 / 1309.14 / 1313.73 / 1318.35
DWDM nm ITU Grid(C21 ~C60)
Channel Spacing nm 20nm (CWDM) , 4.5nm( LWDM) , 0.8nm( DWDM)
CWDM Passband Min nm ±6.5
LWDM Passband Min nm ±1.1
DWDM Passband Min nm ±0.11
Channel - 4CH 8CH 12CH 16CH 18CH
Port Insertion Loss CWDM. Max dB 1.2 1.5 1.8 2.0 2.5
LWDM. Max dB 1.2 1.8 2.0 - -
DWDM. Max dB 1.5 2.0 2.5 3.0 -
Isolation Adjacent dB ≥30 ≥30 ≥30 ≥30 ≥30
Non-adjacent dB ≥40 ≥40 ≥40 ≥40 ≥40
Ripple Max dB 0.5 0.5 0.5 0.5 0.5
PDL Max dB 0.5
Return Loss Min dB 40
Directivity Min dB 50
Power Handing Max mW 300
Fiber Type - G67A1/ A2/ B3 or SMF-28
Fiber Coating um 250 µm / 900 µm loose tube
Fiber Length mm 1000
Connector - LC/UPC or Customized

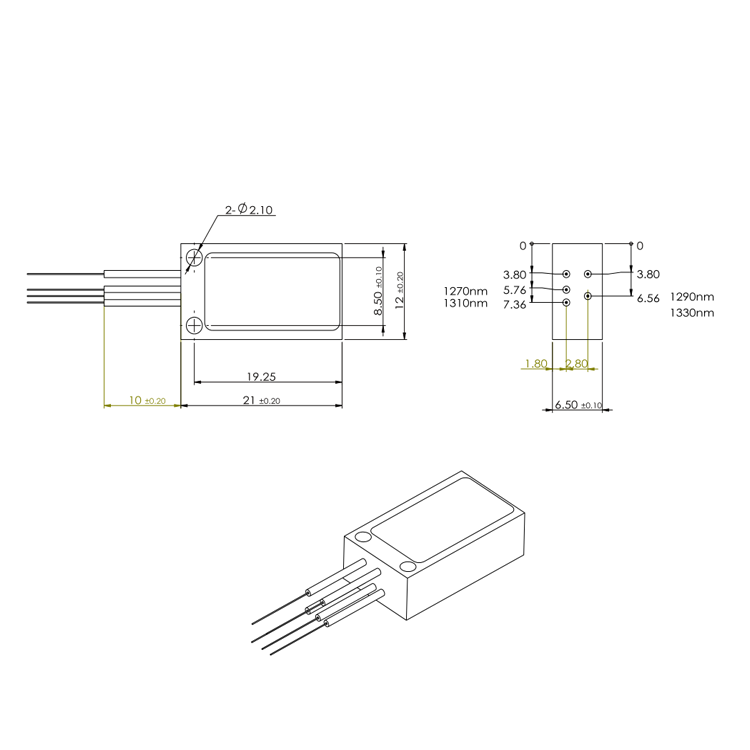

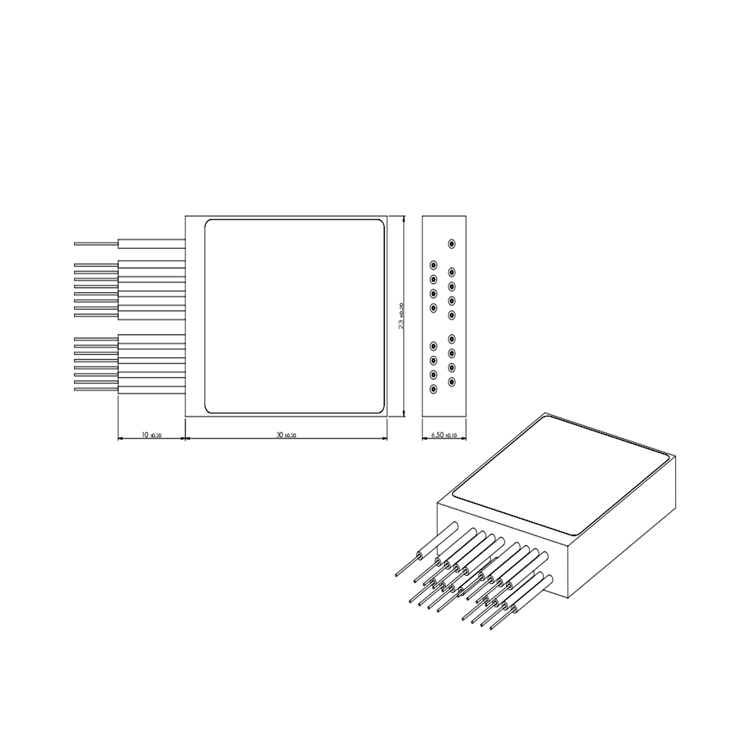

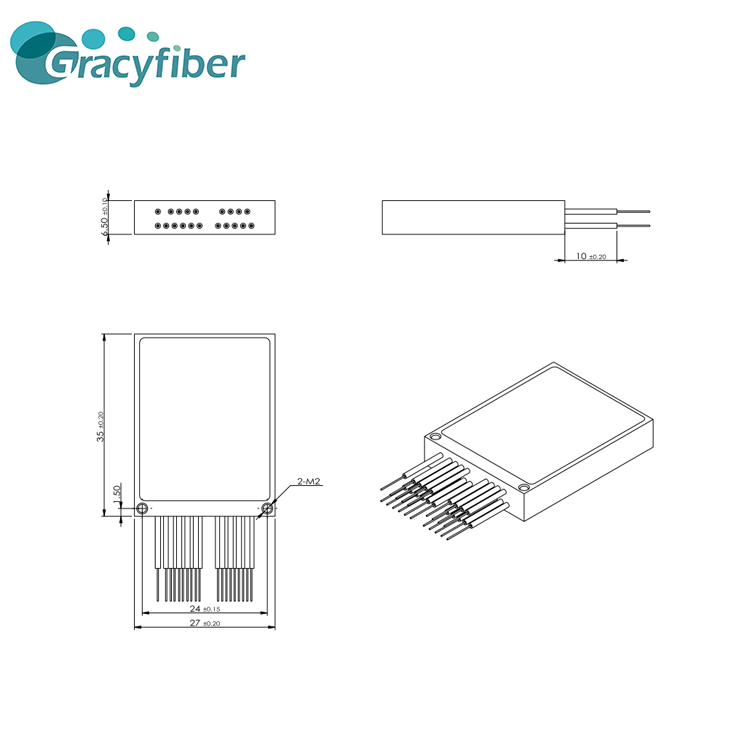

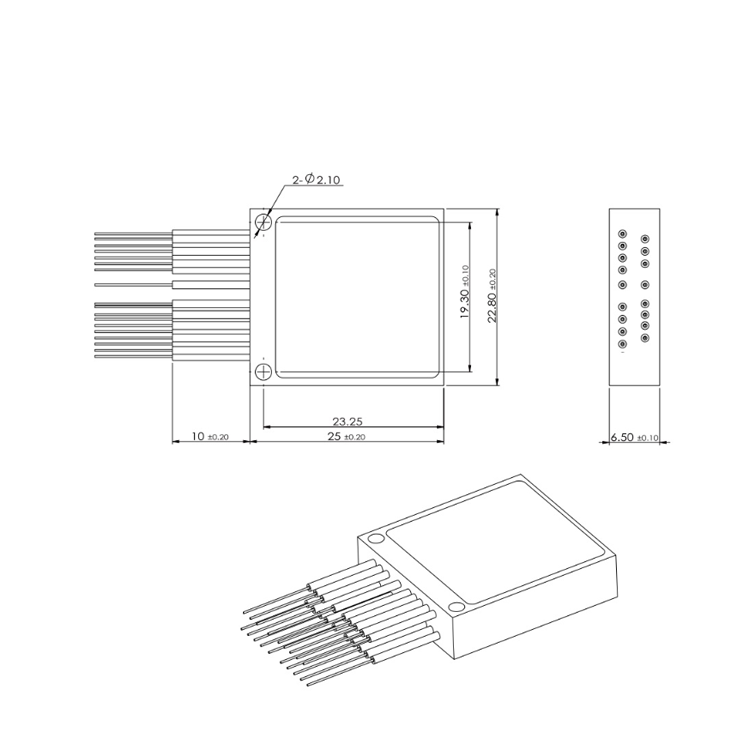

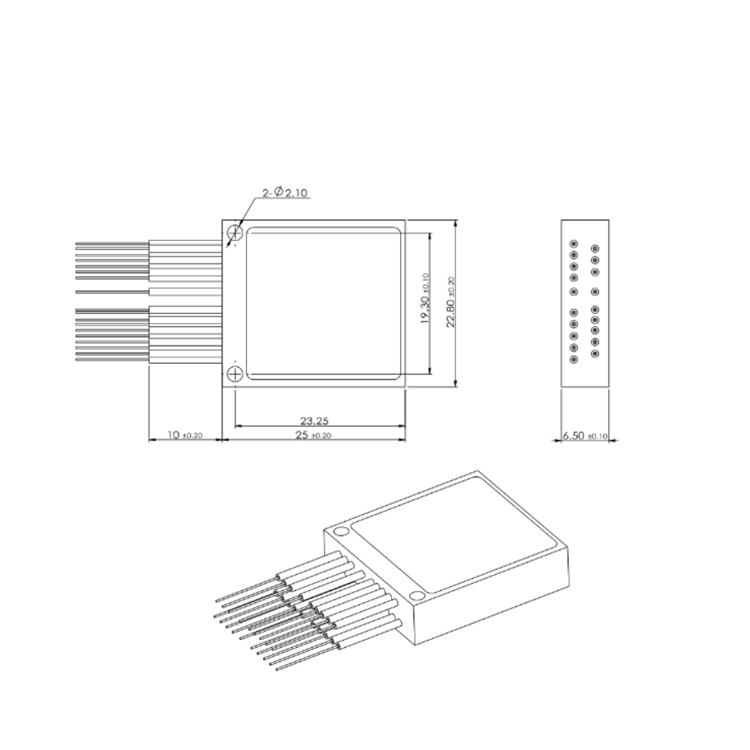

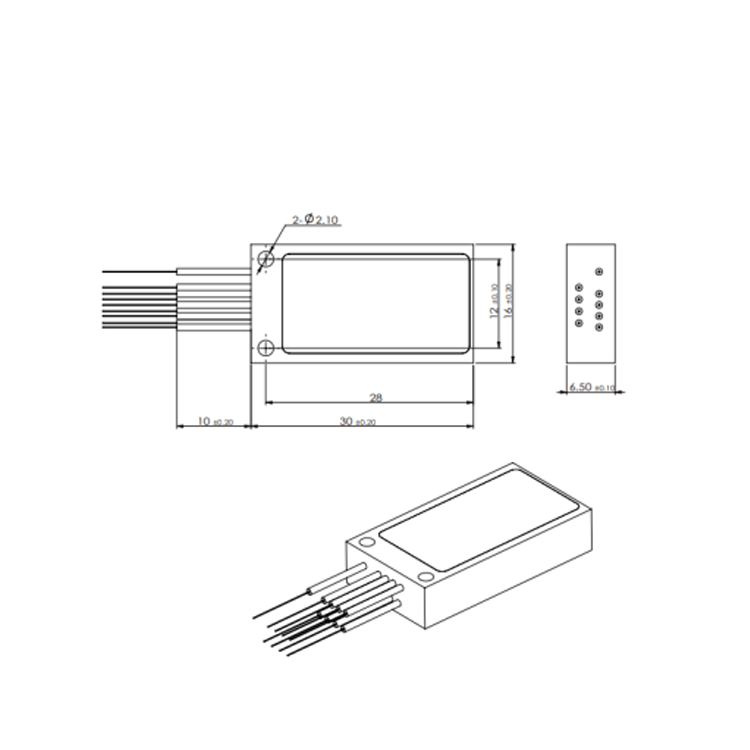

Dimensions (HxWxD) CWDM mm 20x8x6.5 21x15x6.5 25x22.8x6.5 25x22.8x6.5 25x22.8x6.5
LWDM mm 20x12x6.5 23x12.4x6.5 25x19.6x6.5 - -
DWDM mm 20x10.8x6.5 28x14.4x6.5 30x23x6.5 30x23x6.5 30x23x6.5
Operating Temperature °C -5~65
Storage Temperature °C -40~85


Features: Miniature Footprint that pushes physical limits

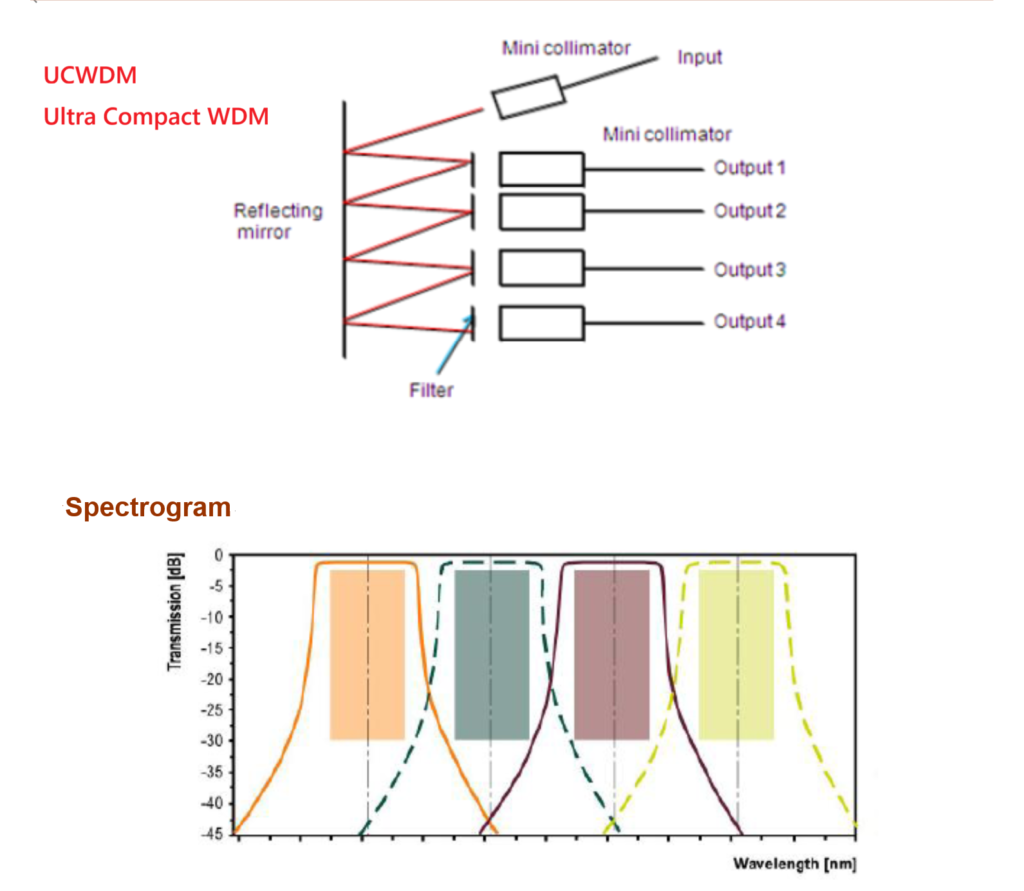

Features: Multi-protocol support and Free Space Optics


Features: Extremely low insertion loss and excellent channel



Features: Superior in-band flatness (ripple less than 0.5 dB)

3. Application Scenarios
  • High-speed optical module internal integration
  • 5G Fronthaul Network
  • Hybrid WDM/DWDM Network
  • CATV and Broadcast Networks

Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss

Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss

Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss

Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss

Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss

Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss

Wavelength Division Multiplexer UCWDM Ultra Compact Free Space Low Insertion Loss

FAQ

1. What parameters can be customized during procurement?

We support customization of wavelength combinations, number of channels, channel spacing, fiber type, fiber length, fiber coating specifications, connector type, and port definitions.


2. What tests are performed before shipment? How are quality and delivery capabilities guaranteed?

As an engineering-driven manufacturer of passive optical devices, Gracyfiber possesses capabilities in the design, precision coupling, and large-scale packaging of WDM and optical filtering devices. Products can be tested according to order requirements for key parameters such as insertion loss, isolation, return loss, channel center wavelength, port definition, appearance, and endface, and test data can be provided. The company is ISO9001 and RoHS certified, and the monthly supply capacity listed on the page is 100,000 pieces, supporting sample verification and bulk delivery.
