Specifications
Insertion loss :
≤0.9dB
Isolation :
≥45dB
Optical power :
0.5W
Model Number :
910001242-01
Operating wavelength :
1550±15nm
Description
1. Product Overview

This 1550nm dual-stage polarization-maintaining isolator uses Corning PM1550 polarization-maintaining fiber, operates at a wavelength of 1550±15nm, and supports 0.5W optical power.

2. Product Features

1550nm Dual Stage PM Fiber Isolator 500mW Corning PM1550 Slow Axis High Isolation Low Loss FC APC Steel Tube，Passive Optical Components

  • Dual-stage polarization-maintaining isolator structure
  • Operating wavelength range: 1550±15nm
  • Insertion loss IL≤0.9dB
  • Isolation ISO≥45dB
  • Polarization extinction ratio ER≥21dB
  • Return loss RL≥55dB
  • Optical power handling capacity: 0.5W
  • Uses Corning PM1550 polarization-maintaining fiber
  • Slow-axis operation, fast-axis blocking
  • Arrow on the steel tube surface for indicating the direction of optical signal transmission
  • Encapsulated in Ø5.5*38mm steel tube
  • Equipped with 0.9mm blue fiber optic sleeve
  • Total length including connector: 100±10cm
  • Equipped with FC/APC fan-port connector
  • Operating temperature range: -5～+70℃
  • Equipped with a number tube for easy product identification and management
  • Includes a neutral English test report

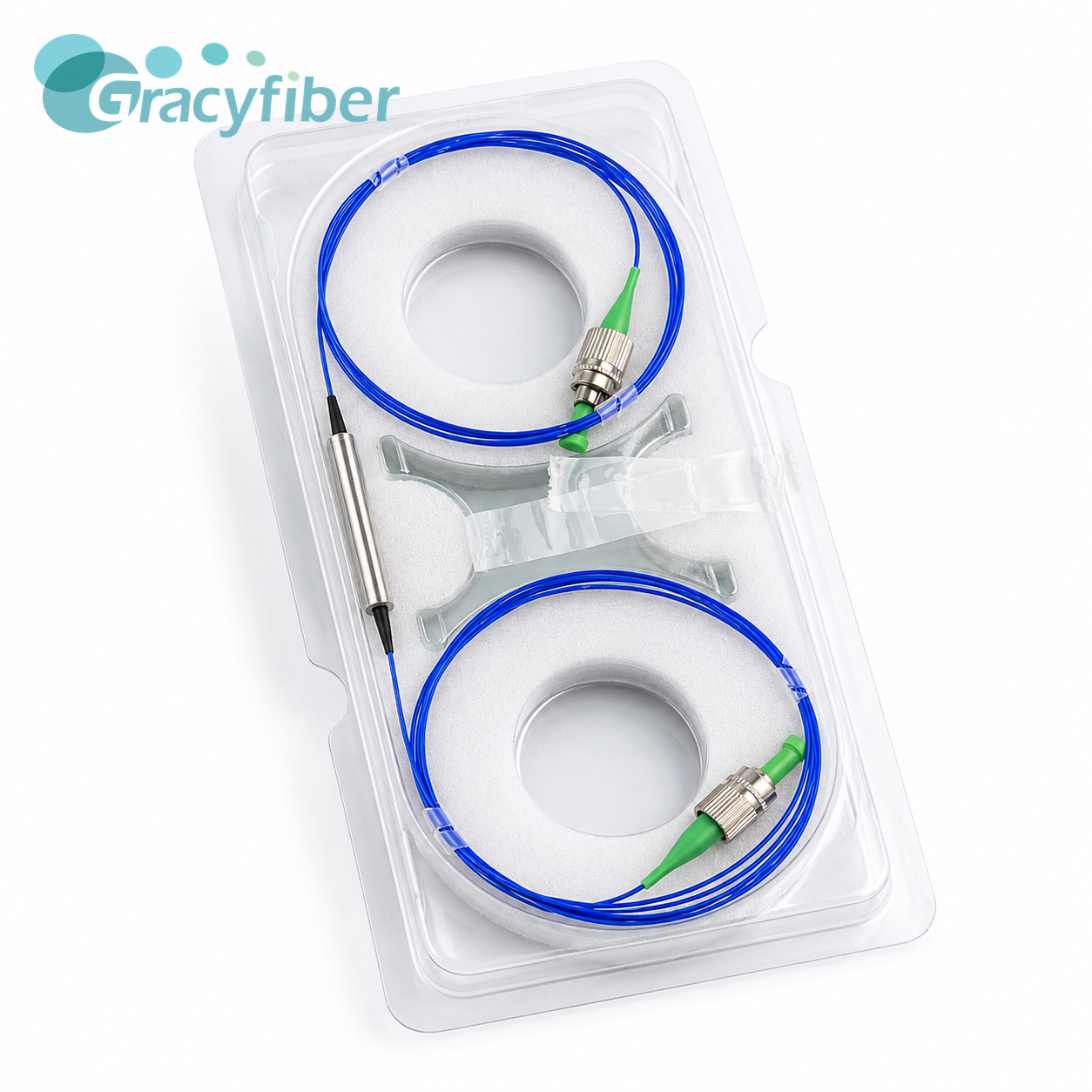

  • Packaged in a blister pack
3. Applications:
  • 1550nm polarization-maintaining fiber laser
  • Polarization-sensitive optical communication systems
  • Fiber optic amplifiers and laser optical paths
  • Coherent optics and interferometry systems
  • Fiber optic sensing and precision testing equipment
  • Reverse optical feedback suppression
  • Polarization-maintaining passive device testing
  • Optical instruments and system integration
