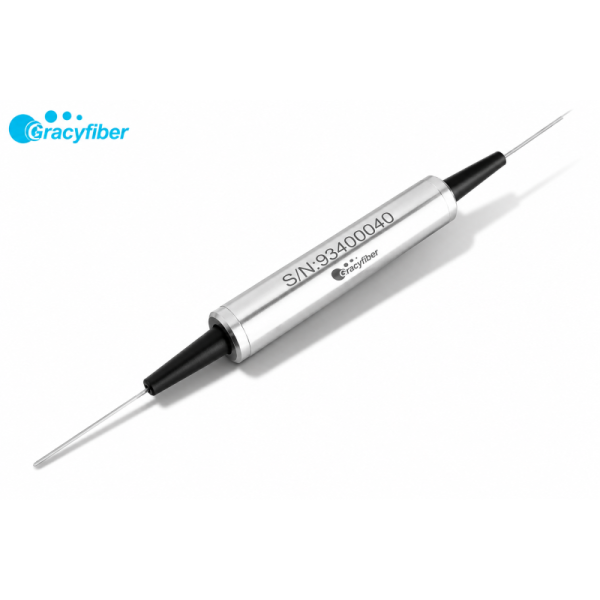

In Line Optical Isolator 1310nm 1480nm 1550nm PM Polarization Maintaining Isolator
In Line Optical Isolator 1310nm 1480nm 1550nm PM Polarization Maintaining Isolator
In Line Optical Isolator 1310nm 1480nm 1550nm PM Polarization Maintaining Isolator
In Line Optical Isolator 1310nm 1480nm 1550nm PM Polarization Maintaining Isolator
Specifications
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
MOQ :
1pieces
Payment Terms :
L/C, T/T
Name :
In Line Optical Isolator
Coating diameter :
245 µm
Polarization mode dispersion :
≤ 0.5 ps/km
Beat length :
3.5 mm
Numerical aperture :
0.12
Cladding diameter :
125 µm
Core diameter :
3.0 µm
Delivery Time :
5-8 work days
Supply Ability :
100,000 pieces per month
Description
High-Isolation In-Line Polarization-Maintaining Isolator (PM Isolator)
1. Product Overview

GRACYFIBER's in-line PM Isolator is a high-precision optical antireflective device designed to guide unidirectional beam transmission and maintain extremely high polarization purity while completely blocking back reflections.

2. Product Features
ParameterUnitValue
Port Type-`1x1
Operating Wavelengthnm1064131014801550165010641310148014801480
Operating Bandwidthnm±5±20±20±20±20±5±20±20±20±20
Stage-Sing StageDual Stage
Typ. Insertion LossMaxnm1.60.42.20.6
Insertion LossMaxnm1.80.63.40.8
Peak IsolationMinnm35405055
Typ.IsolationMinnm30284545
Extinction RatioType BMindB18
Type FMindB20
Return LossMindB50
Power HandingMaxmW200500150500
Fiber Type-PM980PM1300PM1550PM980PM1300PM1550
Fiber Coatingmm0.25 / 0.9/2.0/3.0mm Red/Blue loose tube
Fiber Lengthcm100, or Customized
Connector-FC/APC,FC/UPC,or Customized
Dimensions
(HxWxD)		250μm Bare Fibermmφ5.5×35
900μm Loose Tubemmφ5.5×38
2mm/3mm Tubemm90×20×10,100×80×10
Operating Temperature°C-5~65
Storage Temperature°C-40~85
Remark:
* Above specifications are for devices without the connectors.
* For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.
* The PM fiber and the connector key are aligned to the slow axis. fast axis is blocked.


Features: Extreme High Isolation and Guaranteed Unidirectional Transmission

Features: Excellent polarization extinction ratio (ER) and tight slow-axis alignment

Features: Extremely low insertion loss and high return loss


3. Applications


  • Fiber Laser & Pumping
  • Optical Amplifiers (EDFAs)
  • Coherent Communication & Polarization Multiplexing
  • Interferometry & Sensing
  • Quantum Optics
4. Part Number Configuration
Isolator-1234567-89
-Working
Wavelength		Stage
Type		Package DimensionFiber
Type		Jacket TypeJacket
Color		Fiber
Length		-Connector TypeWorking
Axis
-XXXXXXXXXXXXXX-XX
PM ISO
10=1060nmS=Single Stage53=Ø5.5 × 35P98=PM98002=250um Bare fiberR=Red01=0.1m
0=NoB=Dual Axis
13=1310nmD=Daul Stage54=Ø5.5 × 38P13=PM130006=0.6mm Loose TubeB=Blue05=0.5m1=FC/UPCS=Slow Axis
15=1550nmX= Customized90=90 × 20× 10P15=PM155009=0.9mm Loose TubeW= White10=1.0m2=FC/APCF=Fast Axis
XX= Customized
PS=100 ×80× 10XXX= Customized20=2.0mm PVC TubeX= Customized30=3.0m3=SC/UPCX= Customized


XX= Customized
30=2.0mm PVC Tube
XX= Customized4=SC/APC







5=LC/UPC







6=LC/APC







X= Customized
Example Part Number










PMISO-13S54P1309B10-2S
PM Inline Isolator ,Center wavelength 1310 nm,Single Stage,Steel housing Ø5.5 × 38, Fiber is PM 1300, Fiber length 1 m with 0.9mm Blue Losse Tube ,FC/APC connector, slow axis aligned to key.
