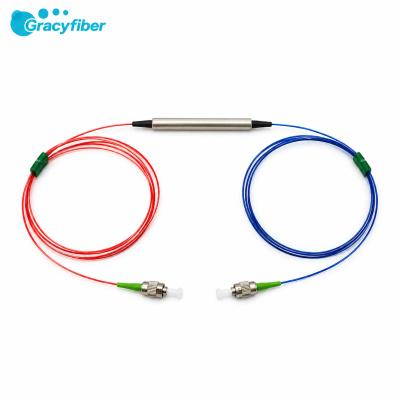

PM Isolator+ WDM Hybrid Device (IWDM)
PM Isolator+ WDM Hybrid Device (IWDM)
PM Isolator+ WDM Hybrid Device (IWDM)
PM Isolator+ WDM Hybrid Device (IWDM)
PM Isolator+ WDM Hybrid Device (IWDM)
PM Isolator+ WDM Hybrid Device (IWDM)
Specifications
Isolation :
≥21 dB (Single Stage), ≥36 dB (Dual Stage)
Insertion loss :
≤0.9 dB (Signal), ≤0.5 dB (Pump)
Wavelength range :
1528~1565 nm (C-band), 1450~1490 nm
Power handling :
≤1000 mW
Operating temperature :
0 ~ +70 ℃
Package dimension :
Ф5.5 × L38 mm
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces per month
MOQ :
1pieces
Description

PM Isolator+ WDM Hybrid Device (IWDM)

Features

PM Isolator+ WDM Hybrid Device (IWDM)

Wide Operating Wavelength
Low IL & Hi ER & High Isolation

High Stability and Reliability

Application

Fiber Amplifier
Fiber optic Instrument

Specifications

Type

Parameter

1550/1480,1550/1310,1480/1550

1550/980

Isolator Stage

Single Stage

Dual Stage

Single Stage

Dual Stage

Isolation (dB)

≥21

≥36

≥21

≥36

Insertion loss (Signal) (dB)

≤0.9

≤1.0

≤0.9

≤1.0

Signal wavelength range (nm)

1528~1565(C-band), 1450~1490

1528~1565(C-band)

Pump wavelength range (nm)

1450~1490;1270~1350, 1528~1565(C-band)

965~995

Insertion loss (Pump) (dB)

≤0.5

≤0.8

Transmitted Isolation (Pump) (dB)

≥30

≥30

Reflected Isolation (Signal) (dB)

≥15

≥15

Extinction Ratio (dB)

≥21

Directivity (dB)

≥55

Power handling (mW)

≤1000

Fiber Type:

SMF-28e For all ports

PM 1550-US-25D For Pass port,

PM 980 For Common &Pump ports

Operating temperature (℃)

0 ~ +70

Storage temperature (℃)

-5 ~ +75

Package dimension (mm)

Ф5.5 × L38(P1)






Above specifications are for devices without connector.

Package Dimensions

PM Isolator+ WDM Hybrid Device (IWDM)

PM Isolator+ WDM Hybrid Device (IWDM)

PM Isolator+ WDM Hybrid Device (IWDM)


Ordering Information

PM

IWDM

Signal/pump Wavelength

Isolator Stage

Pump Type

0

Package type

Pigtail Type

Length

Connector

PM

IWDM

5548=

1550Signal/1480pump

4855=

1480 Signal/1550pump

5531=

1550Signal/1310Pump

5598=

1550Signal/980Pump

S= Single stage

D= Dual Stage

F=Forward pump(Type 1)
B=Backward pump( Type 2)

1=P1

(Ф5.5XL38)

1=250um bare fiber
2=900um loose tube
3=3mm loose tube

H= 0.5m

8=0.8m

1=1m

5=1.5m

2=2m

0=None
1=FC/UPC
2=FC/APC
3=SC/APC
4=SC/UPC

5=MU

6=LC/UPC

7=LC/APC
