Specifications
Wavelength :
1310nm
Insertion Loss :
≤3.9 dB
Dimensions :
60×7×4 mm
Polarization Extinction Ratio :
≥20 dB
Description
1. Product Overview

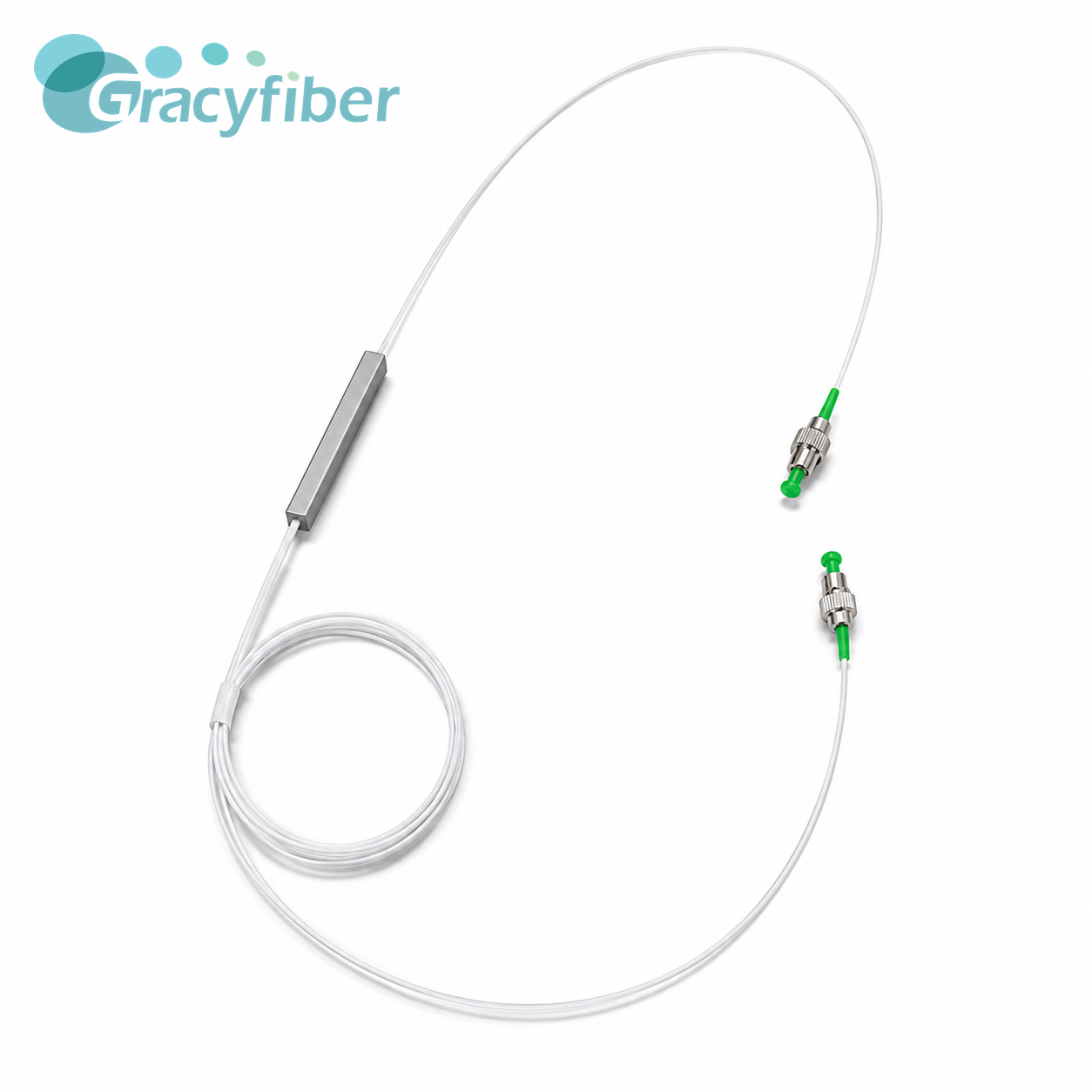

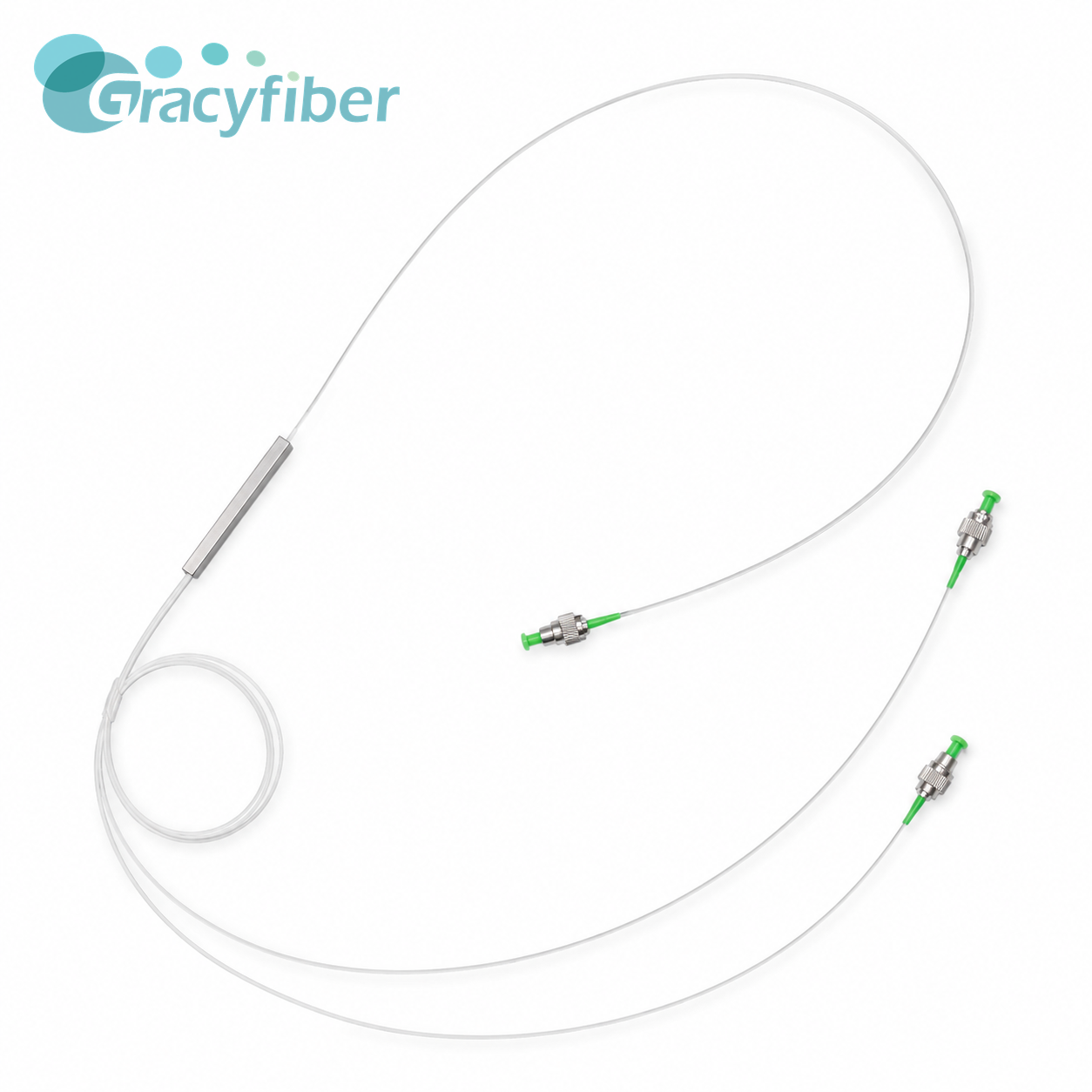

This 1310nm polarization-maintaining (PM) 1×2 equal-split PLC splitter utilizes PM1310 Panda fiber and a compact 4×7×60mm package design, supporting a 50:50 optical power split.

1x2 PM PLC Splitter 1310nm 50 50 Polarization Maintaining Fiber Splitter Low Insertion Loss High PER FC APC for Optical System

2. Features
Parameter 1×2
Wavelength (nm) 1310
Operating Bandwidth (nm) ±15
Insertion Loss (dB) ≤3.9
Tap Ratio (%) 50%
Polarization Extinction Ratio PER (dB) ≥20
Fiber Type PM1310 Panda fiber for 1310nm
Pigtail Input 0.5m, Output 1m, 900um Loose tube/FC/APC
Return Loss (dB) ≥50
Power Handling (mW) ≤300
Operating Temperature (°C) -5～+70
Storage Temperature (°C) -40～+80
Dimensions (mm L×W×H) 60×7×4


  • 1×2 PM PLC splitter configuration, suitable for 1310nm polarization-maintaining optical paths
  • 50:50 equal-split design for stable optical power distribution
  • Insertion Loss (IL) ≤ 4.2 dB (measured maximum: 4.10 dB)
  • Polarization Extinction Ratio (ER) ≥ 20 dB (measured values ​​exceeding 21 dB)
  • Return Loss (RL) ≥ 50 dB, minimizing system reflection interference
  • Uses PM1310 Panda fiber, optimized for 1310nm PM applications
  • Slow axis aligned with FC/APC connector key to ensure polarization orientation consistency
  • 0.5m input fiber and 1.0m output fiber, protected by 0.9mm white Hytrel loose-tube buffering
  • Maximum optical power handling ≤ 300 mW
  • Compact package dimensions (60×7×4 mm) for easy system integration
  • Operating temperature: -5 to +70°C; storage temperature: -40 to +80°C
  • Customization available for fiber length, connector type, and package form factor

3. Applications
  • Polarization-maintaining fiber optic communication systems
  • Polarization-sensitive optical links
  • Fiber optic sensing systems
  • Interferometers and coherent detection systems
  • Optical power splitting and signal monitoring
  • Optical module and passive component testing
  • Laboratory precision optical test platforms
  • Laser and PM optical path integration
