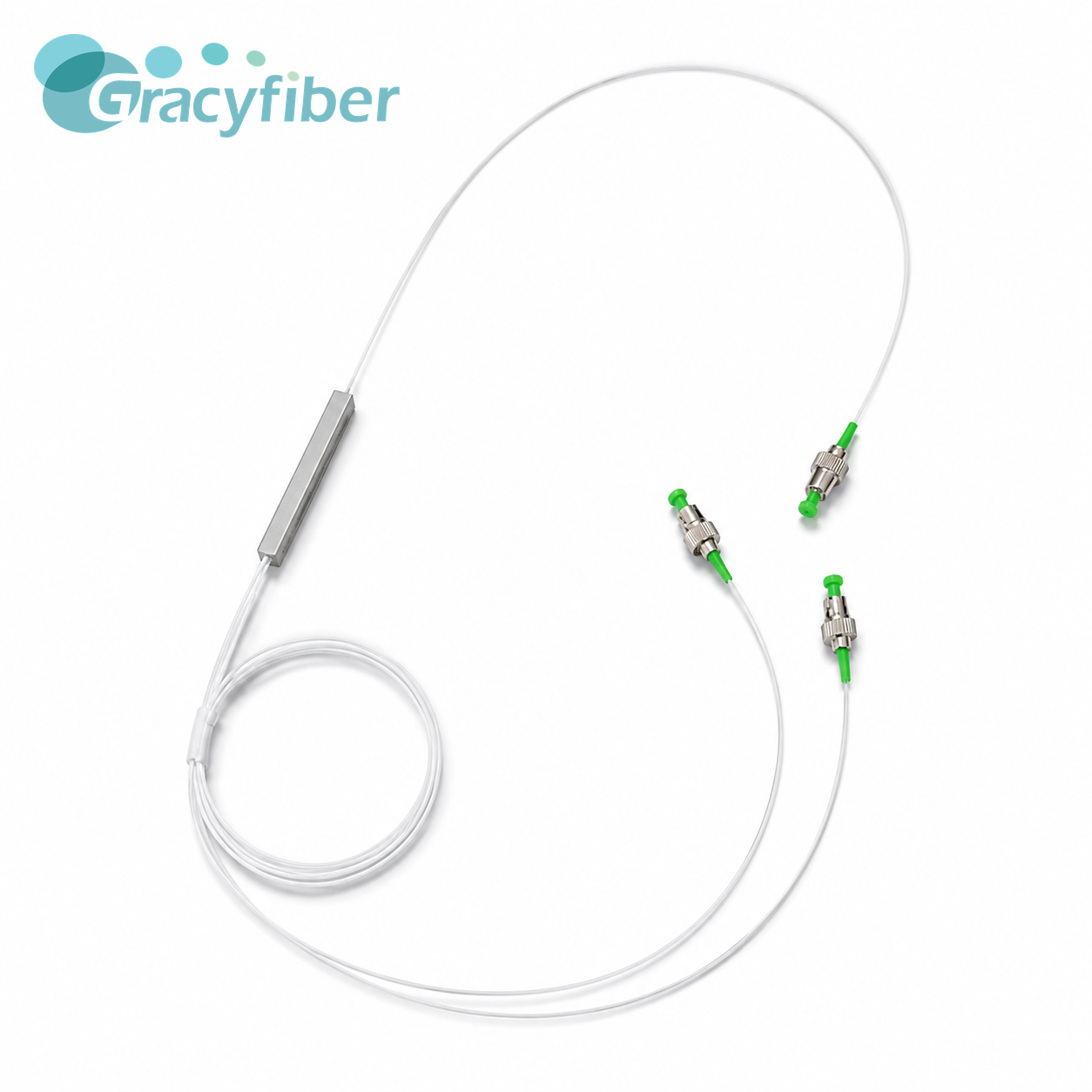

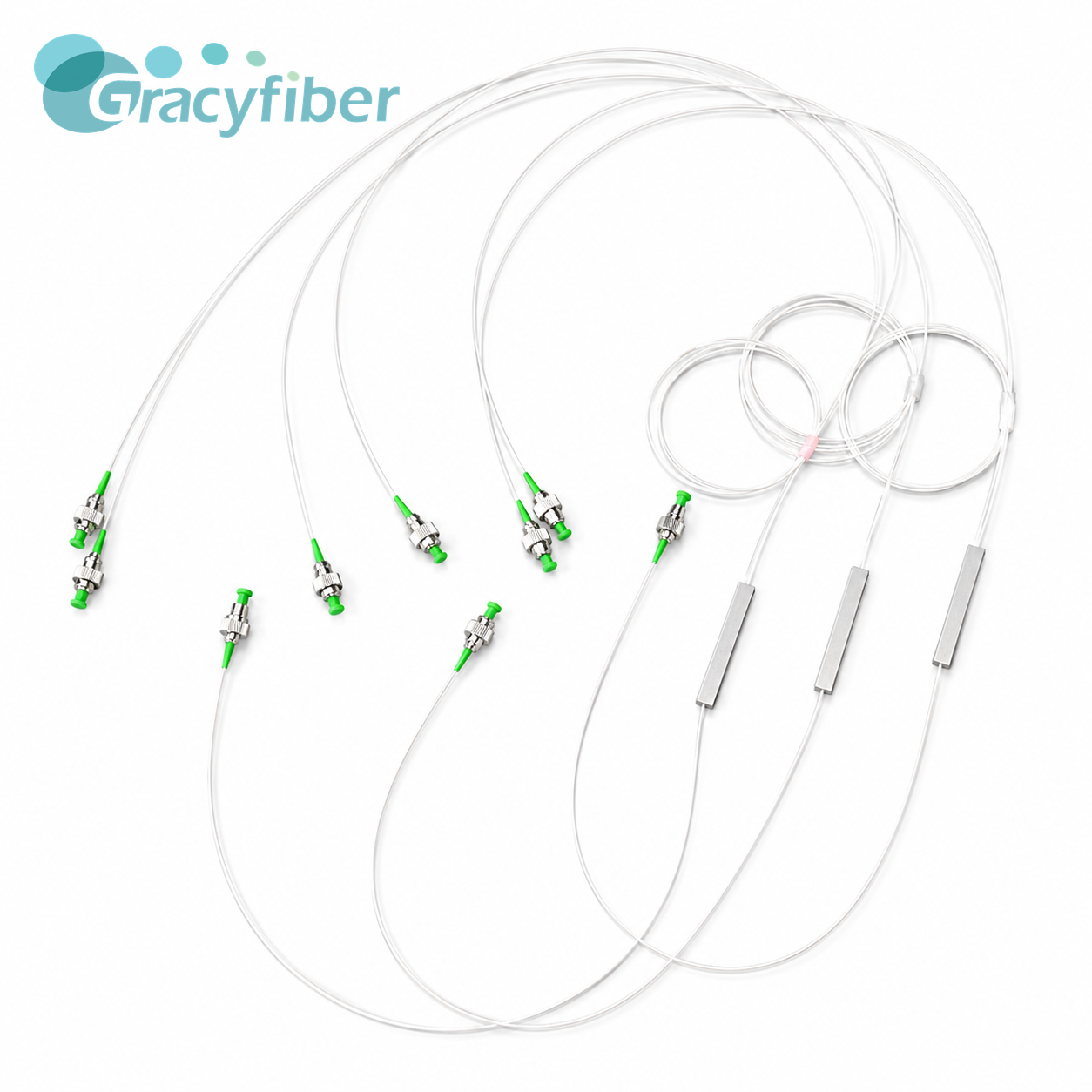

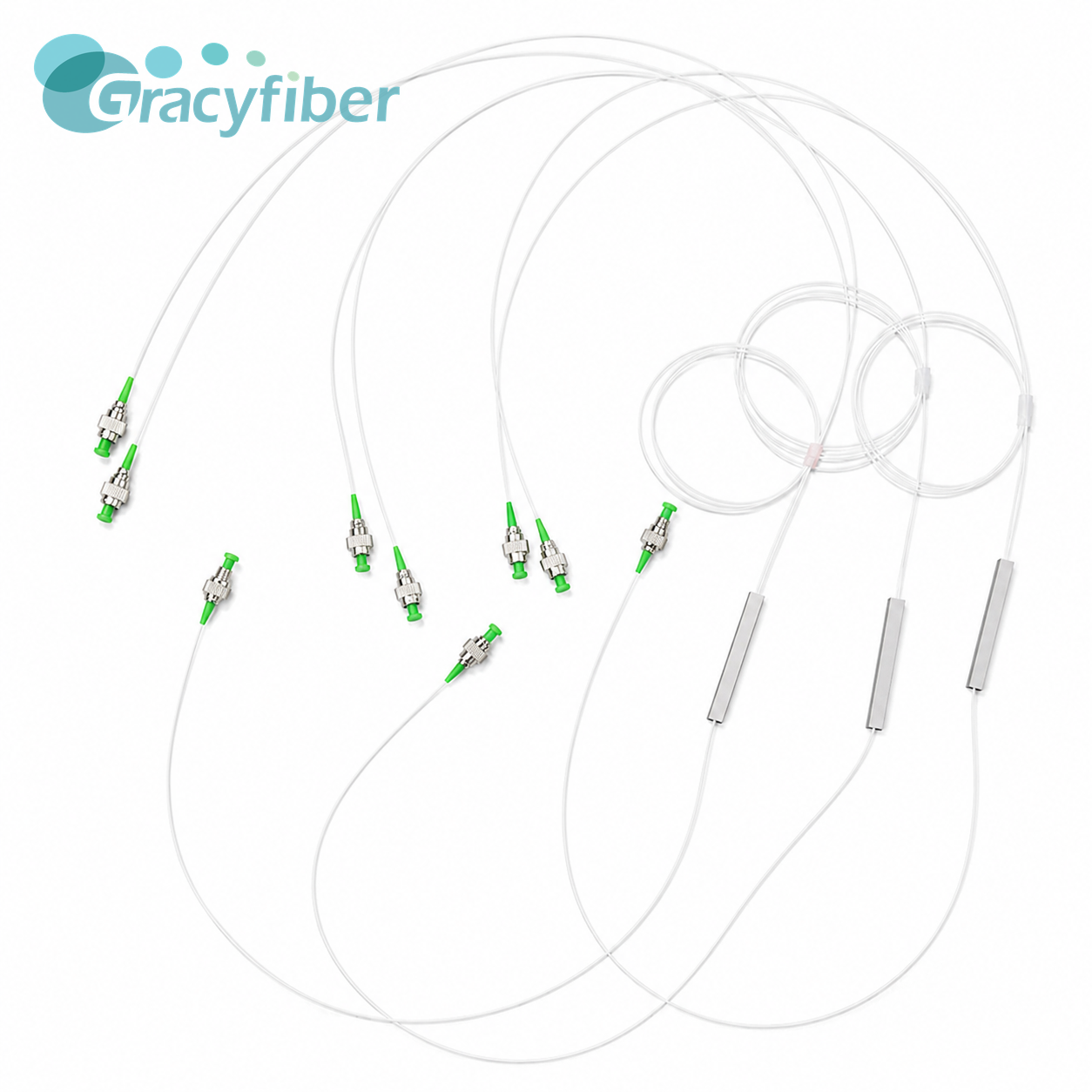

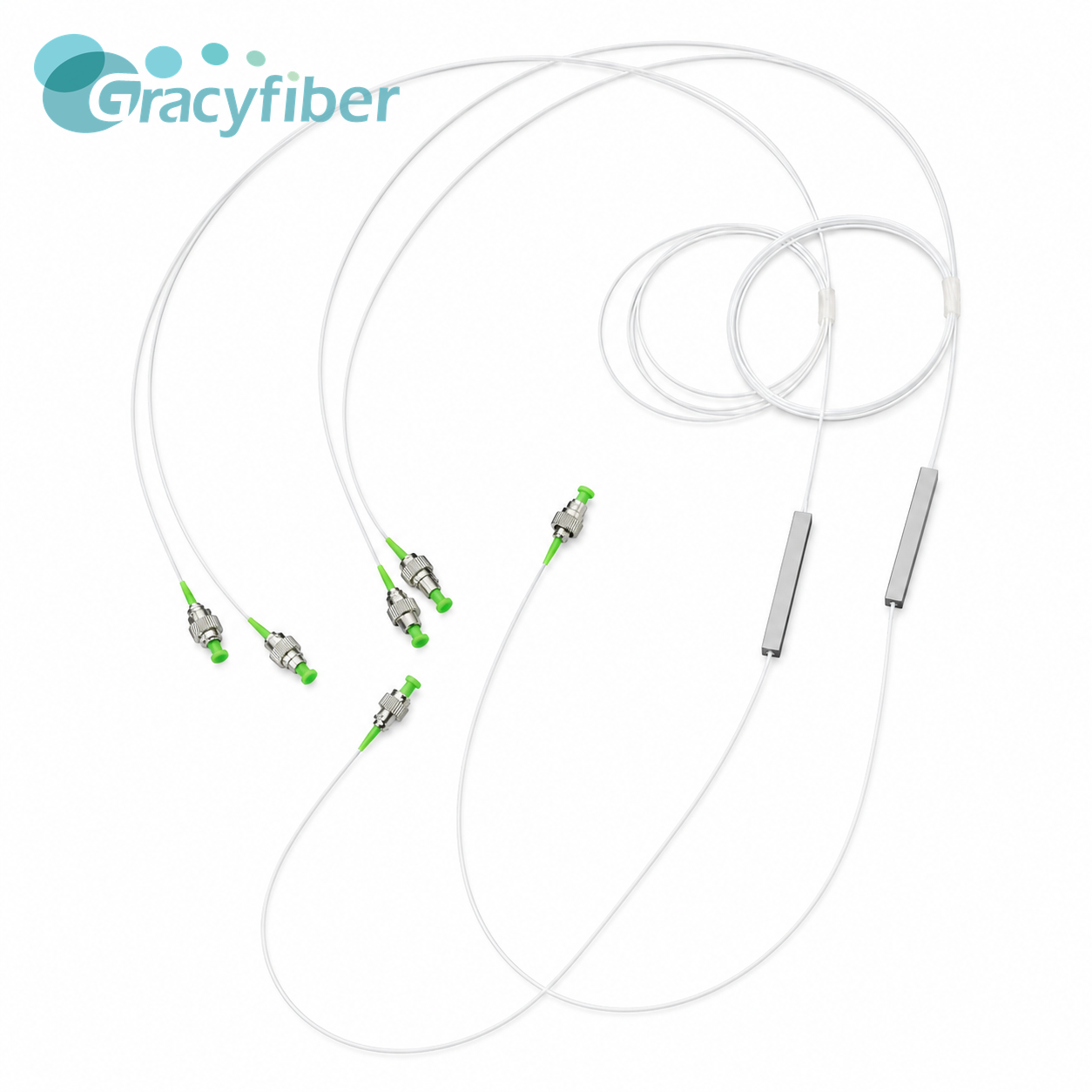

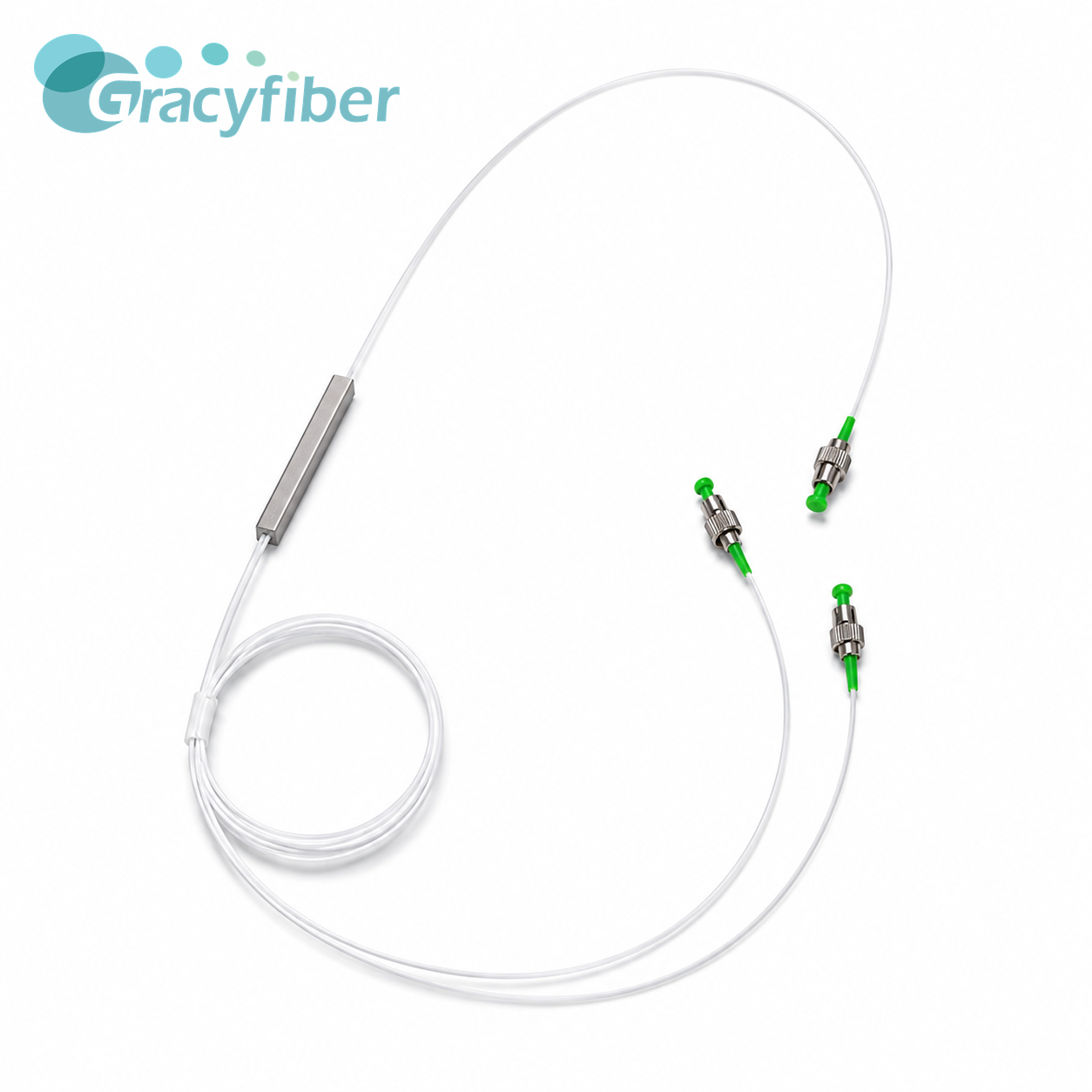

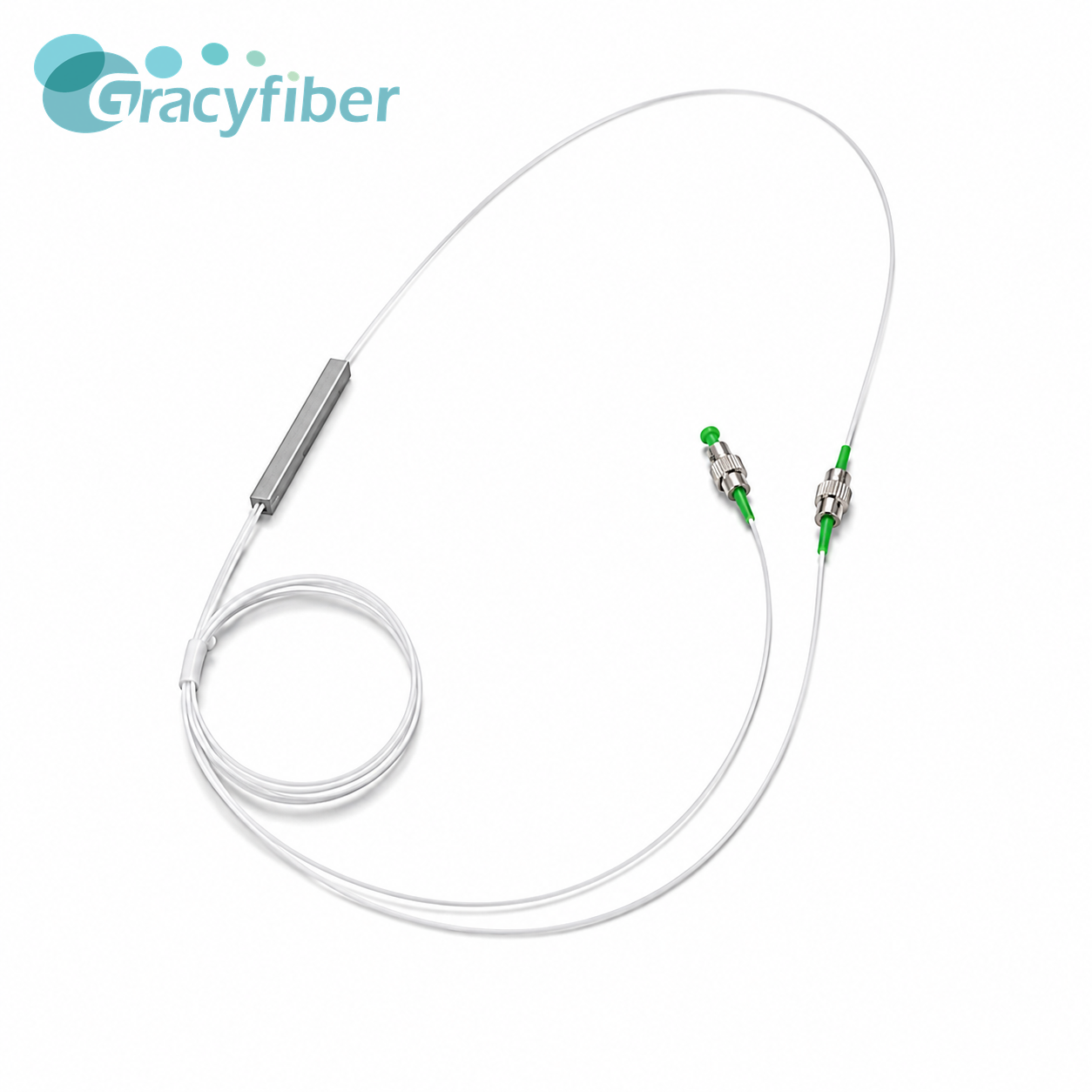

Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
Specifications
Insertion Loss :
≤3.9 dB
Wavelength :
1310 nm
Power Handling :
≤300 mW
Extinction Ratio :
≥20 dB
Description
Polarization Maintaining 1x2 PLC Splitter PM1310 Panda Fiber FC APC Low Loss High Extinction Ratio for Optical Instrument
1. Product Description

This 1*2 PM PLC splitter is a polarization-maintaining, equal-ratio PLC splitter designed for polarization-sensitive optical systems.

2. Key Features
Parameter 1*2
Wavelength (nm) 1310
Operating Bandwidth (nm) ±15
Insertion Loss (dB) ≤3.9
Tap Ratio (%) 50%
Polarization Extinction Ratio PER (dB) ≥20
Fiber Type PM1310 Panda fiber for 1310nm
Pigtail Input 0.5m, Output 1m, 900um Loose tube/FC/APC
Return Loss (dB) ≥50
Power Handling (mW) ≤300
Operating Temperature (°C) -5～+70
Storage Temperature (°C) -40～+80
Dimensions (mm L*W*H) 60*7*4
  • 1*2 Polarization-Maintaining (PM) PLC equal-split configuration
  • Operating wavelength: 1310 nm
  • 50/50 equal optical power split
  • Insertion loss: ≤4.2 dB
  • Measured insertion loss: 3.99–4.10 dB
  • Extinction ratio: ≥20 dB
  • Measured extinction ratio: 21.15–21.92 dB
  • Return loss: ≥50 dB
  • Maximum optical power handling: ≤300 mW
  • Uses PM1310 Panda fiber
  • Input: 0.5 m; Output: 1.0 m
  • 0.9 mm white Hytrel loose tube; FC/APC connectors
  • Slow axis aligned to K-key; fast axis blocked
  • Package dimensions: 60 * 7 * 4 mm
3. Applications
  • EDFA
  • Coherent communication
  • Power monitoring
  • Fiber sensors
  • Fiber optic instruments
  • PM optical power distribution
  • Polarization-maintaining test platforms
