Specifications
Wavelength :
1310nm
Operating Temperature :
-5～+70°C
Polarization Extinction Ratio :
≥20dB
Insertion Loss :
≤3.9dB
Description
PM1310 1x2 PLC Splitter 50 50 Polarization Maintaining Optical Splitter Low Insertion Loss High Return Loss FC APC
Product Overview:

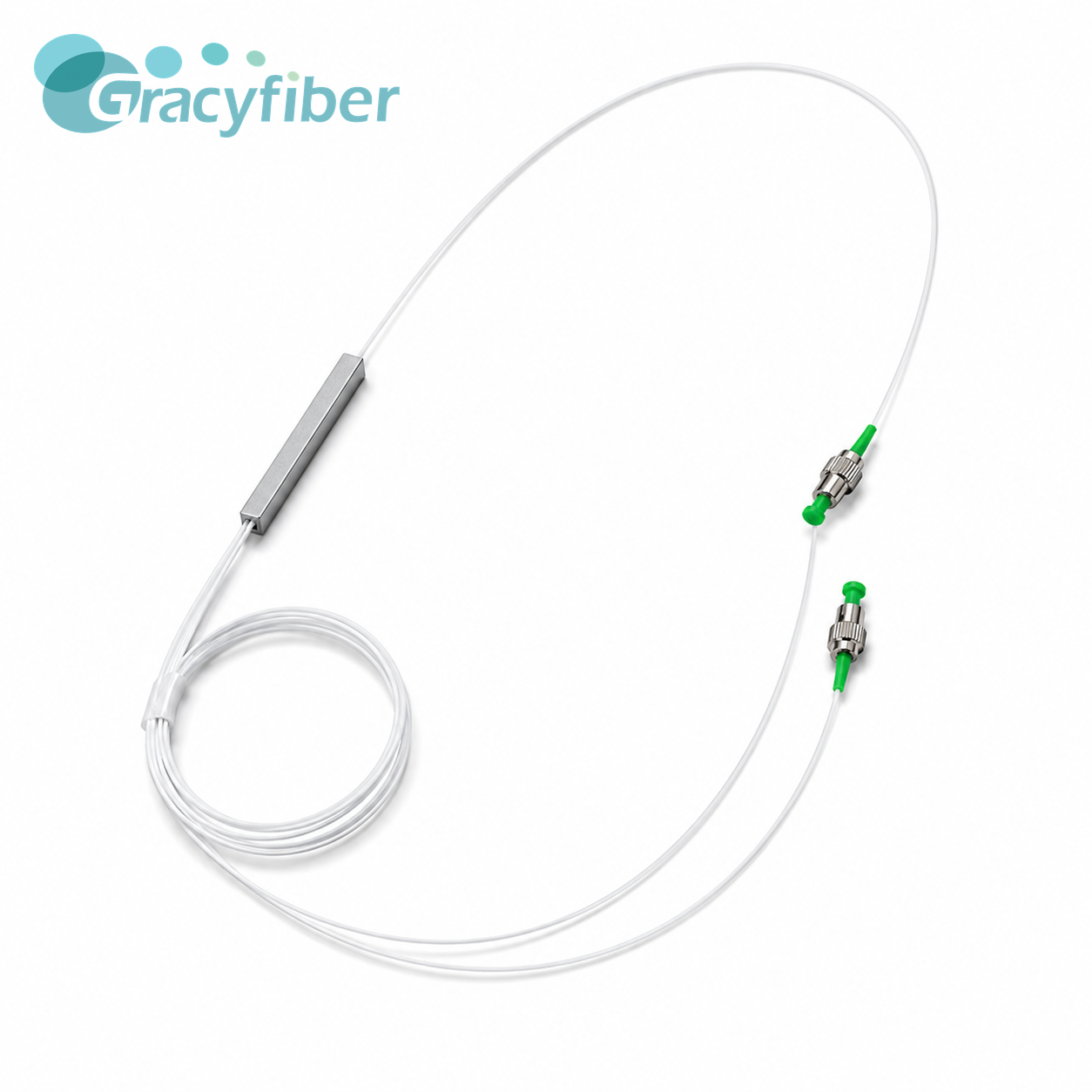

This 1×2 polarization-maintaining (PM) equal-split PLC splitter operates in the 1310nm wavelength band. It utilizes PM1310 Panda polarization-maintaining fiber and FC/APC connectors, supporting a 50:50 optical power split ratio.

Key Features:
Parameter 1×2
Wavelength (nm) 1310
Operating Bandwidth (nm) ±15
Insertion Loss (dB) ≤3.9
Tap Ratio (%) 50%
Polarization Extinction Ratio PER (dB) ≥20
Fiber Type PM1310 Panda fiber for 1310nm
Pigtail Input 0.5m, Output 1m, 900um Loose tube/FC/APC
Return Loss (dB) ≥50
Power Handling (mW) ≤300
Operating Temperature (°C) -5～+70
Storage Temperature (°C) -40～+80
Dimensions (mm L×W×H) 60×7×4
  • 1×2 PM equal-split PLC splitter
  • Operating wavelength: 1310nm
  • Split ratio: 50:50
  • Fiber type: PM1310 Panda PM fiber
  • Insertion loss: ≤4.2dB
  • Extinction ratio: ≥20dB
  • Return loss: ≥50dB
  • Max. optical power: ≤300mW
  • Connector type: FC/APC
  • Input fiber length: 0.5m
  • Output fiber length: 1.0m
  • Buffer: 900μm white Hytrel loose tube
  • Alignment: Slow axis aligned to connector key
  • Package dimensions: 60×7×4mm
  • Operating temperature: -5 to +70°C
  • Storage temperature: -40 to +80°C
Applications:
PM1310 1x2 PLC Splitter 50 50 Polarization Maintaining Optical Splitter Low Insertion Loss High Return Loss FC APC
  • Polarization-maintaining optical communication systems
  • Polarization-sensitive optical path distribution
  • Fiber optic sensing systems
  • Interferometric measurement systems
  • Coherent communication systems
  • Laser beam splitting
  • Optical test and measurement equipment
  • R&D and production of PM components
  • Fiber optic gyroscope systems
  • High-stability experimental optical paths
