MachineU > China Products > Electrical Equipment & Supplies > Generators > Diesel Generators

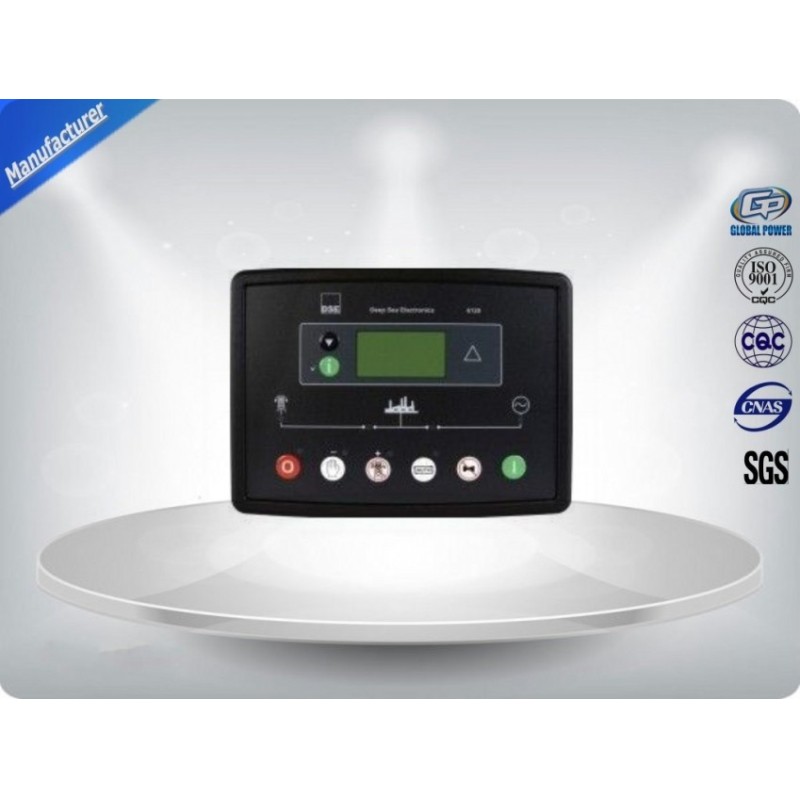

Waterproof Diesel Generator Controller Operating 50mA Standby 10mA Max Current
Waterproof Diesel Generator Controller Operating 50mA Standby 10mA Max Current
Waterproof Diesel Generator Controller Operating 50mA Standby 10mA Max Current
Waterproof Diesel Generator Controller Operating 50mA Standby 10mA Max Current
Specifications
Place of Origin: :
China (Mainland)
Brand :
Deepsea
Alternator Frequency :
50Hz / 60 Hz
Model Number: :
DSE703
Panel Cutout(l*w*h/mm） :
110mm x 90mm
Frequency Range :
3.5 Hz to 75 Hz
Max. Current: :
Operating 50mA
Dimensions: :
125mm x 165mm x 28 mm
Brand Name :
Smartgen
Model Number :
DSE703
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

Waterproof Diesel Generator Controller Operating 50mA Standby 10mA Max. Current

Specifications :

DC Supply:

8 Volts to 35 Volts DC Continuous.

Cranking Dropouts:

Able to survive 0 Volts for 50 mS, providing supply was at least

10 V before dropout and supply recovers to 5 Volts. This is achieved

without the need for internal batteries.

Max. Current:

Operating 50mA

Standby 10mA

Alternator Input Range:

75 Volts (ph-N) to 277 Volts (ph-N) AC (+20%)

Alternator Input Frequency:

50 - 60 Hz at rated engine speed

(Minimum: 75V AC Ph-N)

(Crank Disconnect from 15V Ph-N @ 20Hz)

Overspeed +14% (+24% overshoot)

Underspeed –20%

Start Output:

1.2 Amp DC at supply voltage.

Fuel Output:

1.2 Amp DC at supply voltage.

Auxiliary Outputs:

1.2 Amp DC at supply voltage.

Dimensions:

125mm x 165mm x 28 mm

Charge Fail:

12 Volts = 8 Volts CF 24 Volts = 16 Volts CF

Operating Temperature Range:

-30 °C to + 70°C

Key Features:

• Ultimate size to feature ratio
• Automatically transfers between mains (utility) and generator (DSE4520 only)
• Hours counter provides accurate information for monitoring and maintenance periods
• User-friendly set-up and button layout for ease of use
• Multiple parameters are monitored simultaneously which are clearly displayed on thelargest back-lit icon display inits class
• The module can be configured to suit a wide range of applications
• Uses DSE Configuration Suite PC Software for simplified configuration
• Compatible with a wide range of CAN engines
• Licence-free PC software
• IP65 rating (with optional gasket) offers increased resistance to water ingress


Our Service:

  1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
  2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
  3. Build customers’ profiles, follow-up service, make regular calls on customers

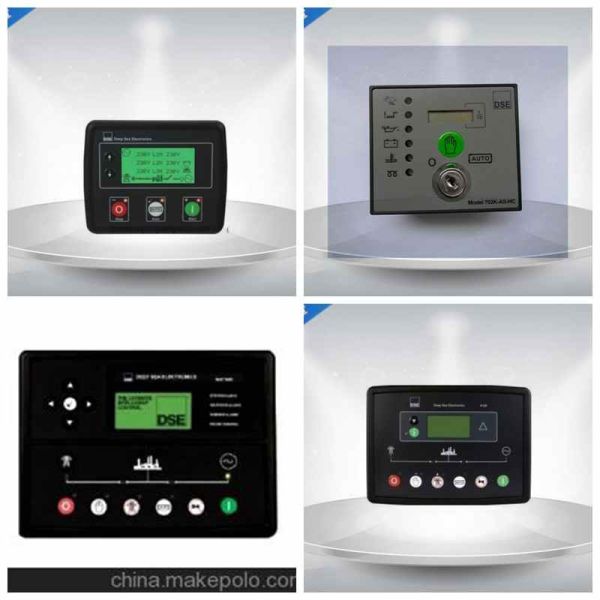

Our Picture:

Waterproof Diesel Generator Controller Operating 50mA Standby 10mA Max Current


Our Main Product:

  1. Diesel Generating Set
  2. Gasoline Generating Set
  3. Gas Generating set
  4. Mobile Light Tower
  5. Forklift
  6. Air Compressor
  7. Control System
  8. Standard Control Panel
  9. Auto Control Panel
  10. Auto Parallel Control Panel
  11. ATS
  12. Brushless Alternat


Warranty and Maintenance:

  1. Guarantee Period: One year or 1000 running hours whichever comes first.
  2. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  3. Spare-parts can also be sent by air express.
