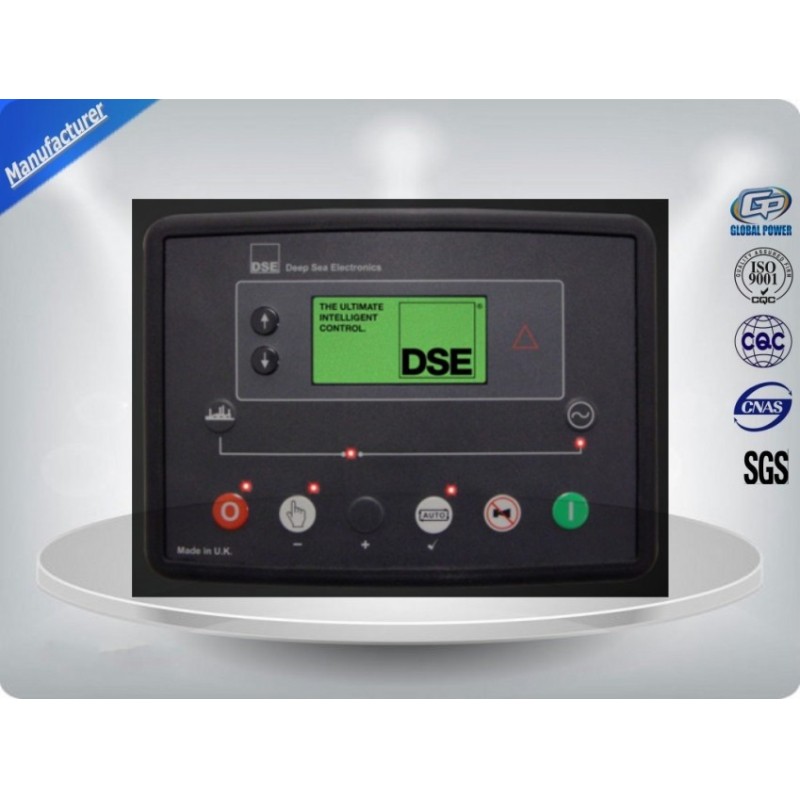

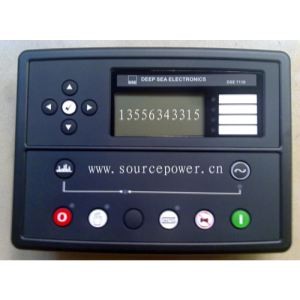

Brushless Generator Control Module 80Kw Prime Power 8-35V Dc Continuous
Brushless Generator Control Module 80Kw Prime Power 8-35V Dc Continuous
Brushless Generator Control Module 80Kw Prime Power 8-35V Dc Continuous
Brushless Generator Control Module 80Kw Prime Power 8-35V Dc Continuous
Specifications
Place of Origin: :
China (Mainland)
Brand :
Deep Sea
Alternator Frequency :
50Hz / 60 Hz
Model Number: :
DSE7320
Magnetic Input Frequency: :
10,000 Hz (max)
Panel Cutout: :
220mm x 160mm ( 8.7” x 6.3”
Guarantee: :
1 year
Brand Name :
Smartgen
Model Number :
DSE7320
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

Brushless Generator Control Module 80 Kw Prime Power 8 - 35 Vdc Continuous

Specifications :

Power Supply 8 to 35 Vdc Continuous
Cranking Dropouts: Able to survive 0 V for 50mS, providing supply was at least
10V before dropout and supply recovers to 5V without the
Need for internal batteries.
Max Current Operating 340 mA at 12 V, 160 mA at 24 V;
Standby 160 mA at 12 V, 80 mA at 24 V 24V
Start Output: 15 A DC at supply voltage
Fuel Output: 15 A DC at supply voltage
Auxiliary Relay Outputs: 2 A DC at supply voltage
Charge Fail / Excitation Range 0 V to 35 V
Alternator Input Range: 15 V - 333 V AC (L-N)
Alternator Input Frequency: 3.5 Hz to 75 Hz
Mains Supply Input Range: 15 V - 333 V AC (L-N)
Mains Supply Input Frequency: 3.5 Hz to 75 Hz
Magnetic Pick-up Voltage Input Range: +/- 0.5 V to 70 V
Magnetic Input Frequency: 10,000 Hz (max)
Operating Temperature Range: -30 to +70°C
Panel Cutout: 220mm x 160mm ( 8.7” x 6.3”


Key Features:
• Ultimate size to feature ratio
• Automatically transfers between mains (utility) and generator (DSE4520 only)
• Hours counter provides accurate information for monitoring and maintenance periods
• User-friendly set-up and button layout for ease of use
• Multiple parameters are monitored simultaneously which are clearly displayed on thelargest back-lit icon display inits class
• The module can be configured to suit a wide range of applications
• Uses DSE Configuration Suite PC Software for simplified configuration
• Compatible with a wide range of CAN engines
• Licence-free PC software
• IP65 rating (with optional gasket) offers increased resistance to water ingress
Our Service:

  1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
  2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
  3. Build customers’ profiles, follow-up service, make regular calls on customers

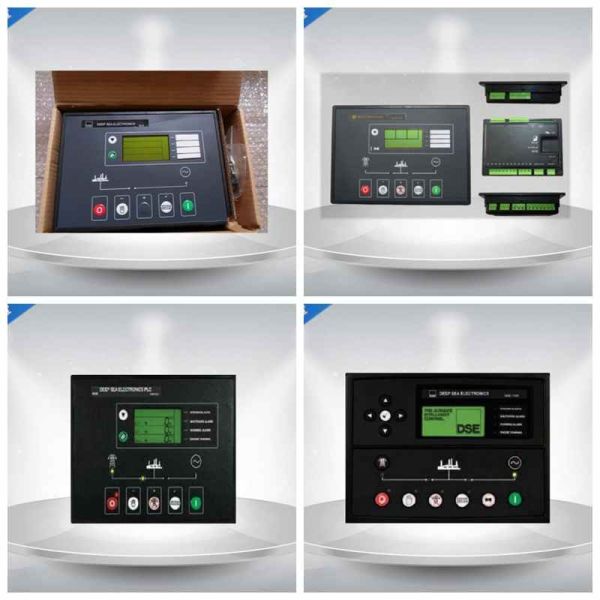

Our Picture:
Brushless Generator Control Module 80Kw Prime Power 8-35V Dc Continuous
Our Main Product:

  1. Diesel Generating Set
  2. Gasoline Generating Set
  3. Gas Generating set
  4. Mobile Light Tower
  5. Forklift
  6. Air Compressor
  7. Control System
  8. Standard Control Panel
  9. Auto Control Panel
  10. Auto Parallel Control Panel
  11. ATS
  12. Brushless Alternat


Warranty and Maintenance:

  1. Guarantee Period: One year or 1000 running hours whichever comes first.
  2. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  3. Spare-parts can also be sent by air express.
